Video Inspection System

Compact and portable electronic inspection systems magnify vision multiple times, catching even fine details while providing excellent contrast and brilliant colours. Here, too, our tried and tested expert quality makes the difference, reliably delivering the required results!

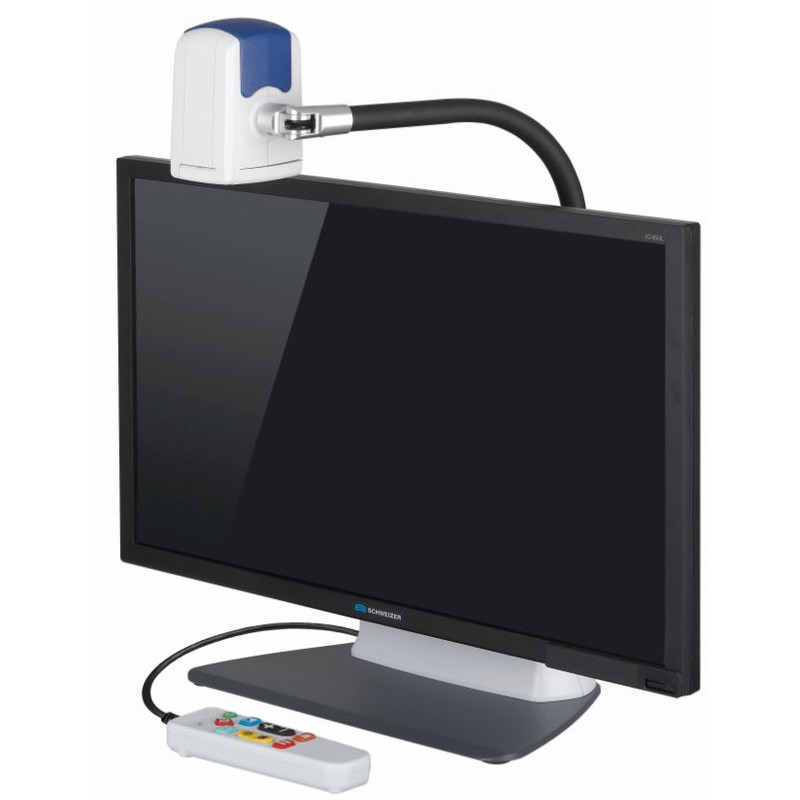

HDMag 240 flex

Compact, portable electronic inspection device. With unique Colour-Boost-Contrast for superior contrast and brilliant colours – in HD quality. 3-axis pivotable camera offers a comprehensive view of the test object. Thanks to the ample workspace under the camera, the device is suitable for versatile applications. Integrated carrying handle for quick and easy transportation.

• High definition auto-focus camera with manual focus override
• 1.7x to 96 x magnification

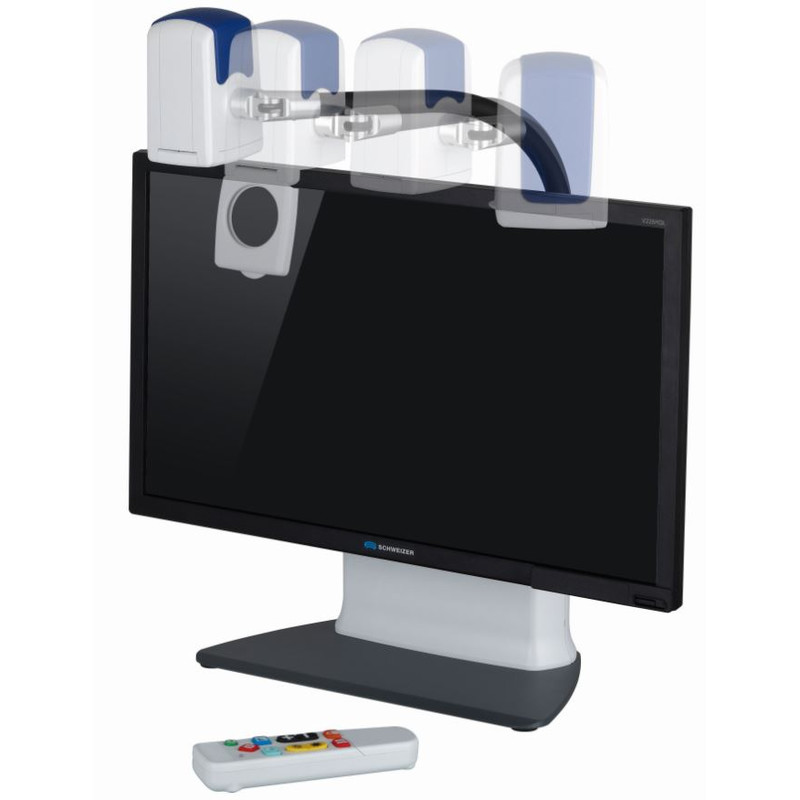

• Inspection: camera rotates 330° enabling close/
• intermediate/distance viewing
• Individual magnification, colour and position settings are saved for each view
• Multiple comfort features such as freeze frame, masks, reading line
• 33 colour modes: true full colour, high-contrast full colour (Colour-Boost-Contrast), black on white, white on black, yellow on blue, yellow on black and 27 additional colour modes
• 41 cm workspace clearance under the camera
• Remote control with large colour-coded buttons facilitates intuitive handling
• Focus lock
• Find feature
• Individually adjustable monitor tilt supports ergonomic head posture

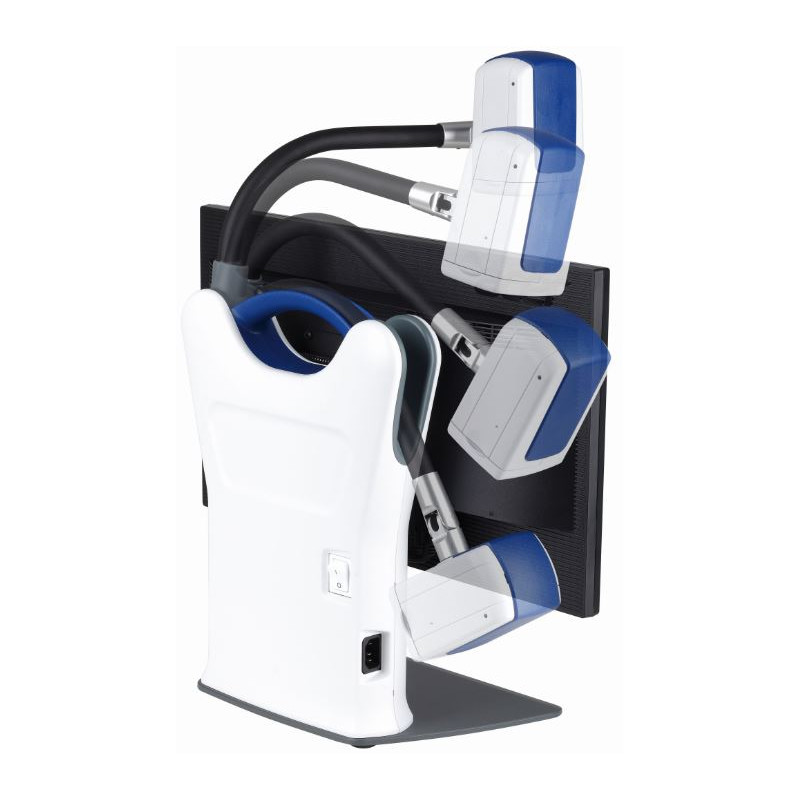

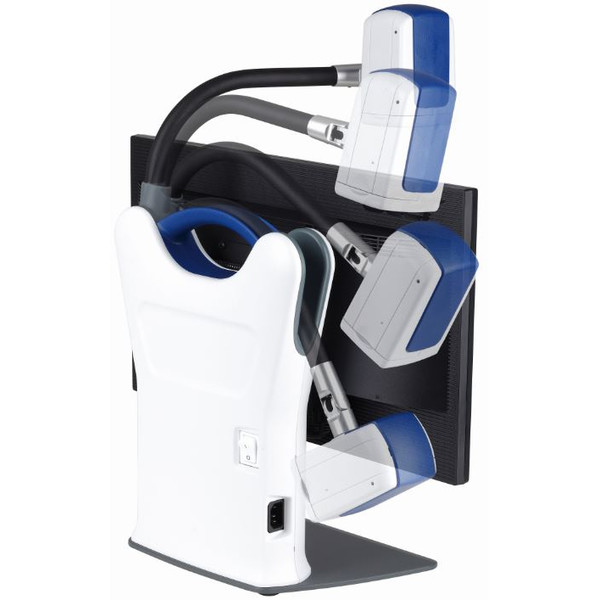

• Flexible: camera arm folds away behind the monitor for quick transportation

HDMag 240 flex

• Magnification: 1.7x to 96 x
• Weight: 7.3 kg
• Dimensions (W x H x D): approx. 56.3 x 19 x 53 cm
• Screen size: 24” (61 cm)
• Power cord: 2.5 m
