Electronic Filter Wheel to add colour to your images

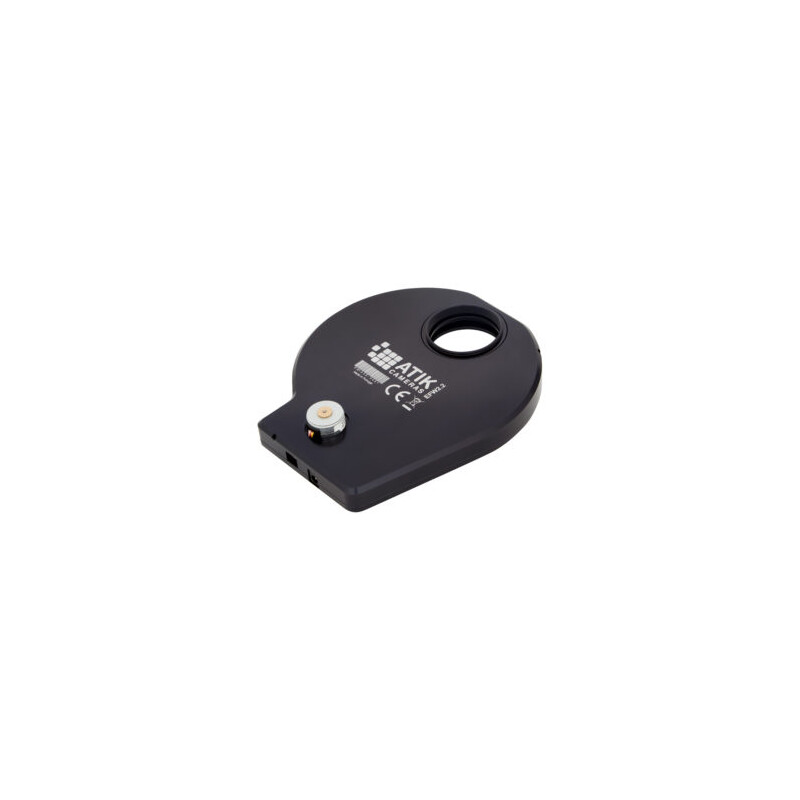

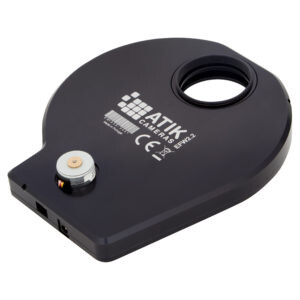

An upgrade on it's predecessor, The Atik EFW2.2 features a new mechanical location system for indexing the filter. This ensures that filters are always in precisely the same position which is of great benefit for flat field framing. Ensuring that flat field frames display exactly the same optical characteristics is essential to ensure that anomalies such as dust can be handled and removed accurately.
The EFW2.2 also features a slick design, with a slim and lightweight profile. For example, the distance between any Atik camera and the wheel itself is 0mm, while still maintaining the possibility of rotating the camera to any desired position.
Total extra backfocus to accommodate the EFW2.2 is only 22mm. Of special interest to Atik 383L+ users is the short distance from the filters to the CCD. This means that popular 1.25" filters can be used with this sensor down to f/5, without any relevant vignetting.

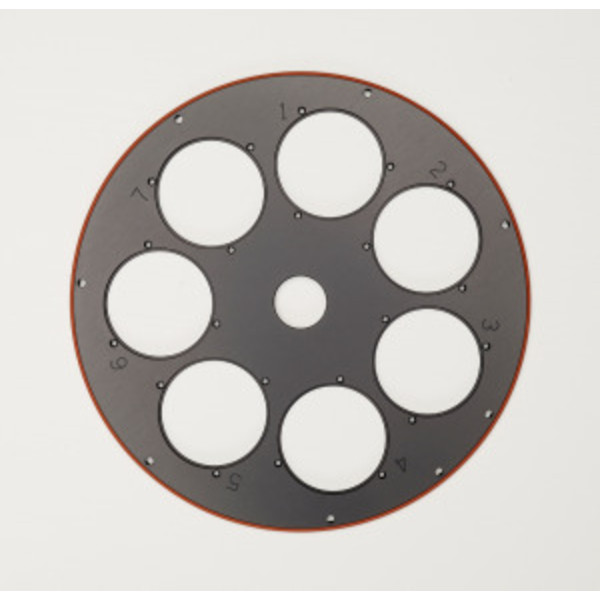

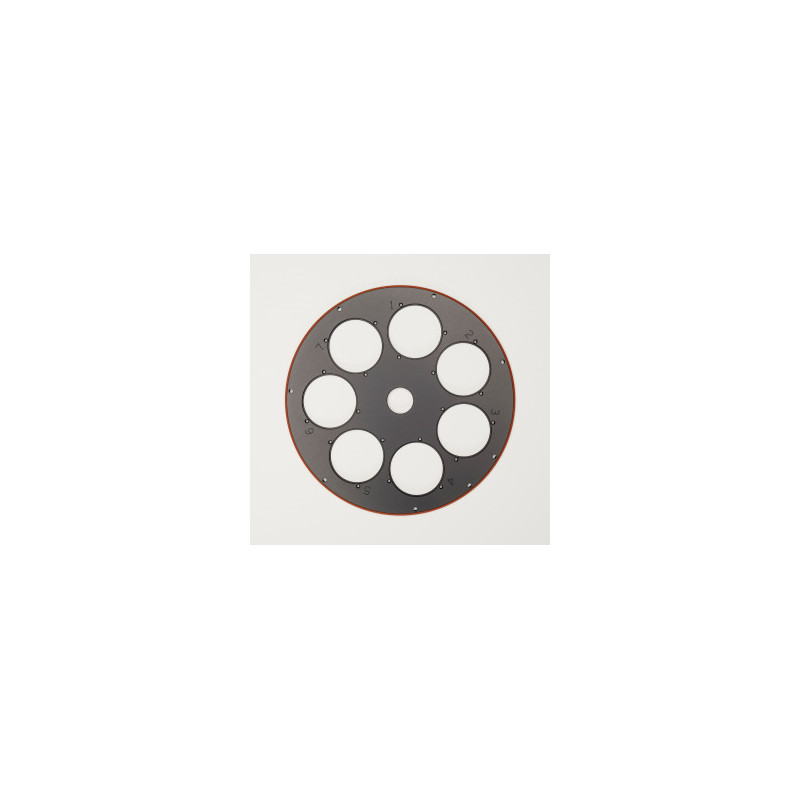

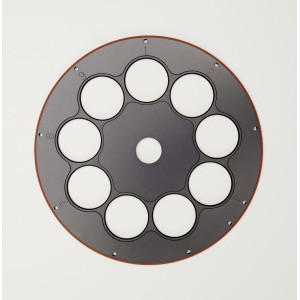

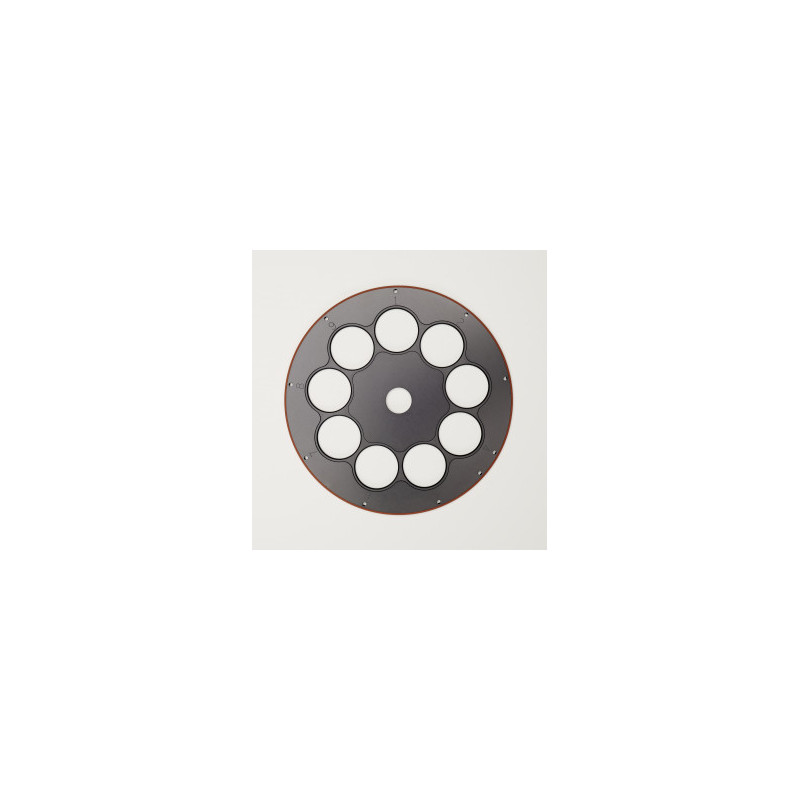

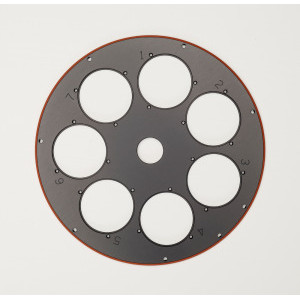

Filter disk options include 5x50.8mm, 5x2” mounted, 7x36mm and 9x1.25” mounted. Regarding software, the EFW2.2 has an ASCOM compliant driver, so that any compliant software can control it. Additionally, the EFW2.2 can be controlled using our Artemis Capture software, for easy, simple and efficient operation.
The EFW2.2 is supplied with your choice of carousel and separate carousels are also available to allow users to change.

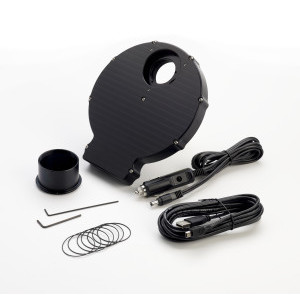

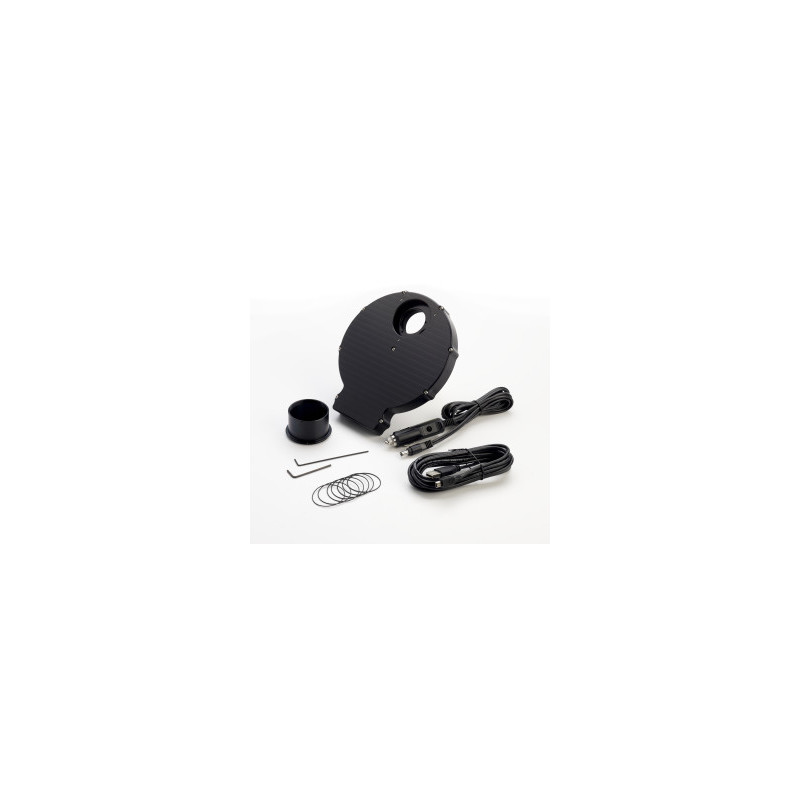

What's in the box?
- EFW2.2 body with your choice of filter disk
- 2" adapter
- Hex key kit
- Screws, plastic washers and o-rings (with specific disk options)
- 3-metre USB cable
- 1.8-metre battery power connector
- CD-ROM with drivers, software and Manuals (PDF)
- User's Manual (paper)
Please note - when using the 2" model of the EFW2.2 with the Atik 16200, an additional ATK 0081 M54 adaptor is required to couple the wheel to the camera.
