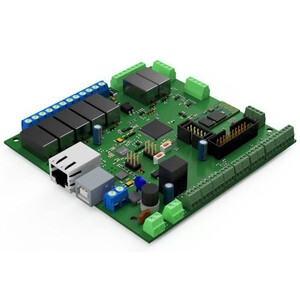

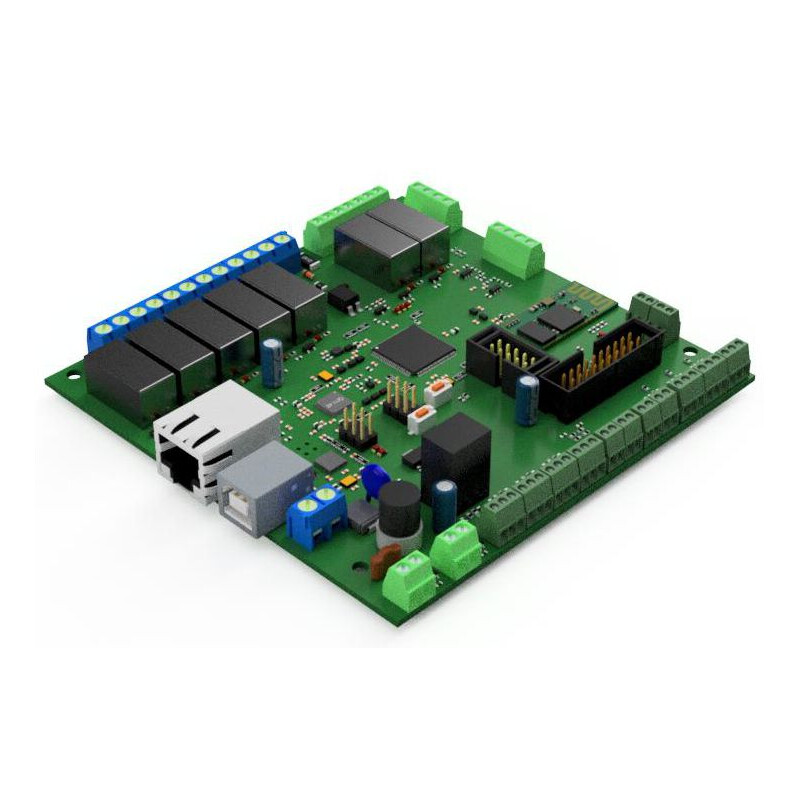

Module designed to control the astronomical observatory
- Compatibility with the Arduino environment (Arduino Mega clone)
- Open Source communication protocol
- Control via Ethernet or USB
- Powered by an external power supply
Two modules can be connected via BlueTooth in Master and Slave modes. The Master module controls the dome's rotation, the Slave module controls the dome's shutter
Specification
- driver compatible with Windows 7, 8, 10 (32 i 64 bit)
- module compatible with Arduino Mega (AtMega2560-16)
- built-in Ethernet module (W5200)
- built-in BlueTooth HC-05 module
- built-in pressure gauge
- built-in thermometer
- module power supply: external 12V / 2A power supply
- 2 x inputs for communication with a PC: Ethernet and USB
- 7 x electromechanical relays 230V / 5A
- 2 x Open Kolektor 12V / 2A power outputs with PWM control
- 4 x OneWire inputs
- 2 x SPI inputs
- touch screen connector
- 7 x logic inputs
- 2 x analog inputs
- 230V AC power detection input
- network configuration: static IP address or DHCP
- control method: USB cable or Ethernet network
- default IP address: 192.168.1.120 (port 80)
- working temperature range: -10 ° C to 30 ° C
