Microscopi > Accessori Microscopia > Fotocamere > CMOS/CCD > ToupTek > XCAM4K > ToupTek Fotocamera ToupCam XCAM4K 8MPB, CMOS, 1/1.2", 8MP, 2.9 µm, 60/30 fps, HDMI/LAN/USB 3.0, WLAN optional
Prodotto n.: 77261

Fotocamera ToupCam XCAM4K 8MPB, CMOS, 1/1.2", 8MP, 2.9 µm, 60/30 fps, HDMI/LAN/USB 3.0, WLAN optional

$ 1.250,00 IVA incl., più spese di spedizione
troppo caro?
a lungo termine
disponibile in 6-10 settimane + Tempo di trasporto

Descrizione prodotto

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

in brief:

  • 8 MP color camera with Sony Exmor CMOS sensor

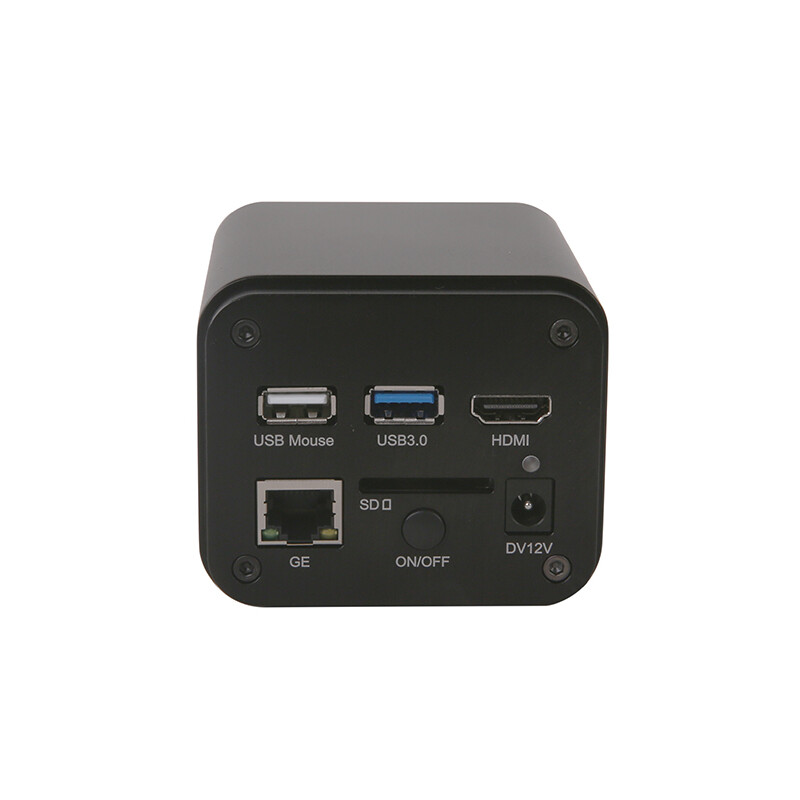

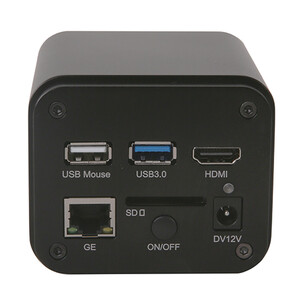

  • HDMI, LAN, USB multiple video outputs, optional WLAN doungle (software included)
  • Integrated XCAMView for camera control (HDMI) (stand alone system)
  • High sensitivity, low noise and no smearing effects due to the use of R, G and B primary color mosaic filters
  • Stable and valuable housing made of aluminum alloy

XCAM4K cameras

The XCAM4K series cameras are the next-generation live-view imaging-systems with 4K resolution(Video) at 30 to 60 FPS (model-dependent). It comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters. The cameras are suitable for scientific investigations, as well as teaching (online classes, demonstrations, academic exchanges) and medical examinations or industrial purposes.

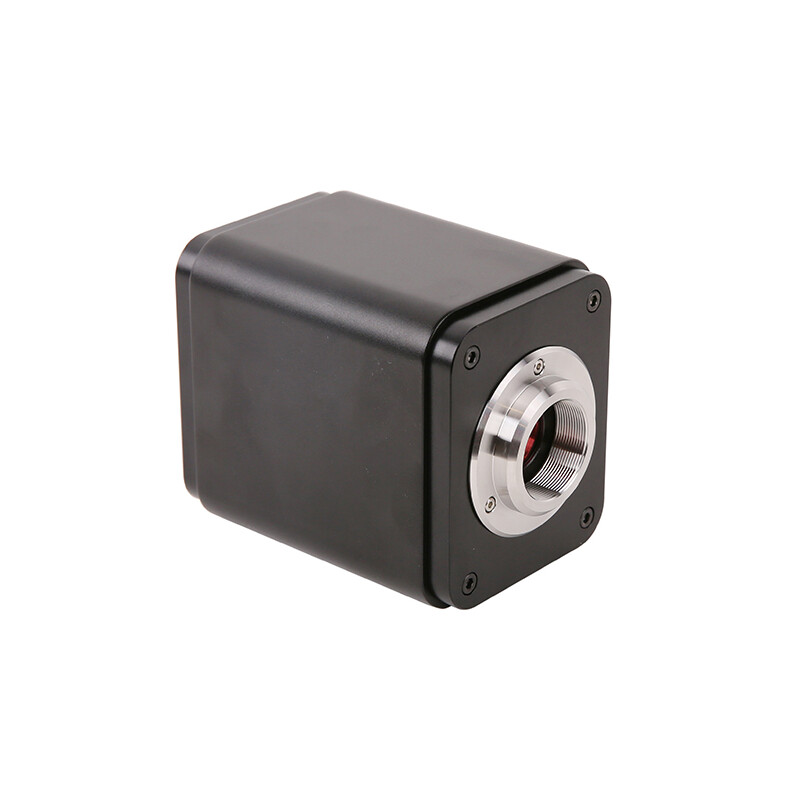

A standard C-mount interface ensures maximum compatibility with various microscope systems. The cameras can be used as a stand-alone system without a PC in conjunction with an HDMI monitor or TV, or streamed live to a PC via Gigabit Ethernet (LAN) for image and video recording.

All cameras in the series come with the advanced ToupView/ToupLite video and image processing application. This is compatible with Windows/Linux/macOS/Android (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc).

Scope of delivery:

camera, power adapter, USB mouse, HDMI 2.0 cable, USB 3.0 cable, CD (driver & software)

Specifiche

Prestazioni


Megapixel
8 MP

Fotocamera


Dimensione pixel
2,9
Risoluzione foto
3840x2160
Risoluzione video
3840x2160
adattatore necessario
0.5x, 0.55x, 0.6x c-mount
frame rate (fps)
60
Trasmissione di immagini
HDMI
Dimensioni del chip (″)
1/1.8
Memoria espandibile
si
Camera a colori
si
Innesto camera
Rolling Shutter
Megapixel
8
raffreddamento
no
Interfaccia
HDMI, USB 3.0, LAN, SD-Karte
sensore
CMOS (Sony Exmor)
Software
ToupView/ToupLite
Sistemi operativi supportati
Windows, Linux, macOS, iOS, Android
Funzione video
si
Sensibilità (mV/s)
2188

Generale


Larghezza (mm)
98,3
Altezza (mm)
78
Lunghezza (mm)
65
Peso (g)
470
Serie
XCAM4K

Campi di aplicatione


Biologia e Medicina
si
Hobby e amatore
si
Industria e Materiali
si
Didattica
si

Varie


Codice prodotto del fornitore
XCAM4K8MPB
