Montature & Accessori > Montature > Equatoriale con GoTo > iOptron > CEM > iOptron Montatura CEM70 ECW iPolar
Prodotto n.: 76347

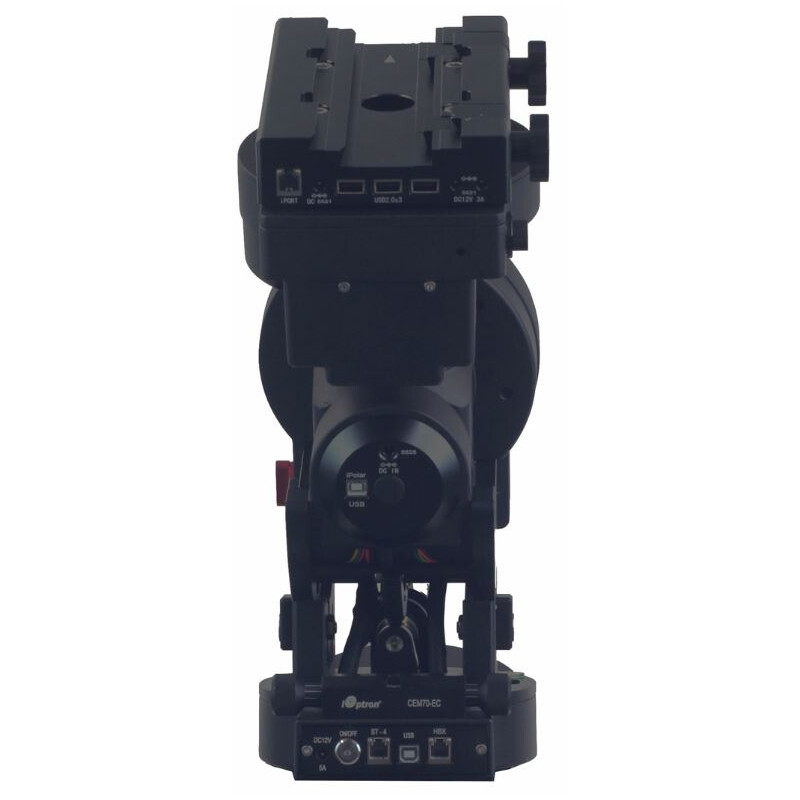

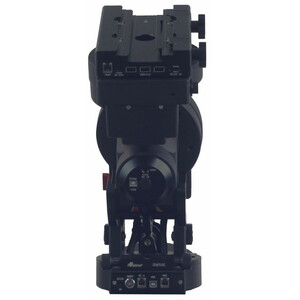

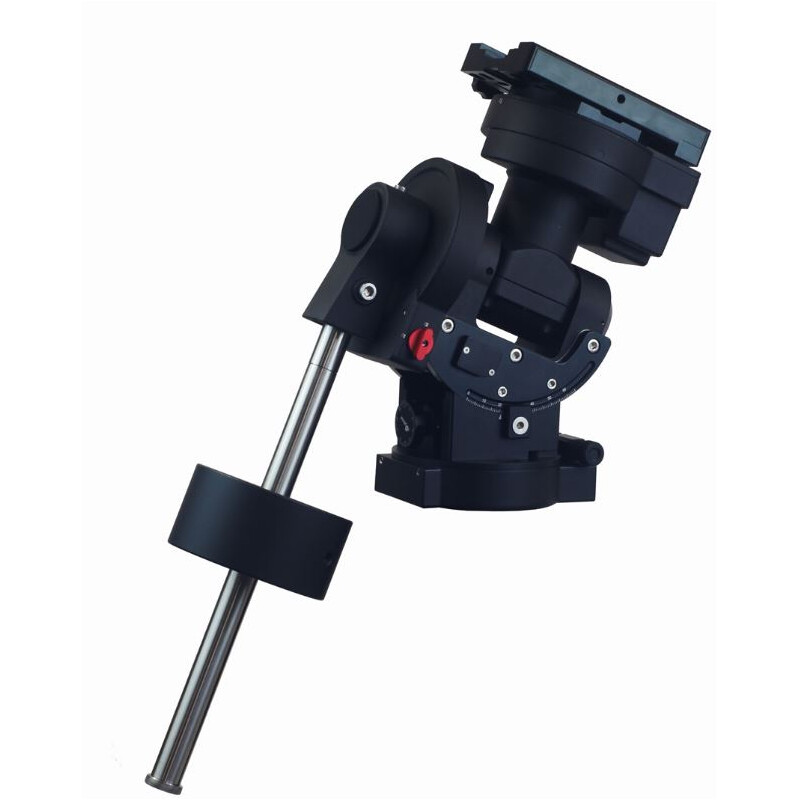

Montatura CEM70 ECW iPolar

$ 5.900,00 IVA incl., più spese di spedizione
troppo caro?
a lungo termine
disponibile in 6-10 settimane + Tempo di trasporto

Descrizione prodotto

Per saperne di più sulla serie CEM...

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

The advantages at a glance:

  • A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
  • Ideal for both visual observation and astrophotography
  • Payload of 70 lbs (31.8 kg) with the mount weight of 30 lbs (13.6 kg)
  • Easy to use and reliable gear clutches
  • Precision altitude and azimuth adjustment.
  • Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
  • iPolar electronic polar scope
  • Go2Nova® 8410 controller with advanced GOTONOVA® technology and a built-in heater
  • High precision tracking with low periodic error (PE <0.3 arcsec rms)
  • realtime periodic error correction (RPEC)
  • 32-channel Global Positioning System (GPS)
  • USB 3.0 powered connection
  • Integrated ST-4 autoguiding port
  • Advanced cable management system with more choices
  • Spring loaded 8" Vixen/Losmandy dual saddle
  • Built-in Wi-Fi connectivity

Following up on the success of the iOptron CEM60 center balance equatorial mount, iOptron is introducing two new medium payload center balance mounts. The CEM70 series mounts are new standard bearers for equatorial mounts in the 70lb payload segment. The mounts are packed with advanced features, while streamlining the components resulting in a more portable imaging setup.

Retaining the inherent properties of the center balance design, these relatively compact medium payload mounts deliver what astronomers expect in an efficient, accurate and portable mount. With precise GOTO pointing and accurate tracking, the CEM70EC is a solid performer for observers and imagers alike. Innovative operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (levers large enough to use with gloves), an advanced cable management system for the mount, iPolar, guider, and camera assure users that the CEM70 was designed with their needs in mind.

Commento del nostro esperto:

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

The CEM70 ECW has a high precision encoder on the RA axis.

The CEM70 ECW2 has precision encoders on both, the Dec and RA axis. Both versions have an iPolar.

(Jan Stroeher)

Specifiche

Prestazioni


Denominazione
CEM70 ECW
Portata massima (kg)
31.8
Contrappeso della montatura (kg)
13,6
Contrappeso/i
1 (9,5kg)
Interfacce
ST-4 & USB 3.0
Alimentatori
12
Lingua del Menu
Inglese
Regolazione dell'altezza della polare (°)
0-65
Regolazione micrometrica azimutale (°)
+/- 4
Temperatura di operatività
-10 bis +40
Velocità del motore
1x, 2x, 8x,16x, 64x, 128x, 256x, 512x, max ~3.75º/sec
Piastra montatura
Losmandy & Vixen
Diametro cuscinetti a sfera DEC (mm)
80
Diametro cuscinetti a sfera AR (mm)
80
Diametro ruota elicoidale DEC (mm)
151
Diametro ruota elicoidale AR (mm)
151
Denti della ruota elicoidale (DEC)
248
Denti della ruota elicoidale (RA)
248
Encoder
si
Precisione dell'inseguimento
0,07
Diametro albero AR (mm)
55
Diametro albero DEC (mm)
55
Diametro della barra per contrappeso (mm)
28
Materiale dell'ingranaggio elicoidale
Acciaio
Tipo di motore
Motore passo-passo (128 micro-steps)
Guidacavo
interno

Particolarità


Sistema GoTo
si
GPS
si
Controllo manuale
si

Equipaggiamento

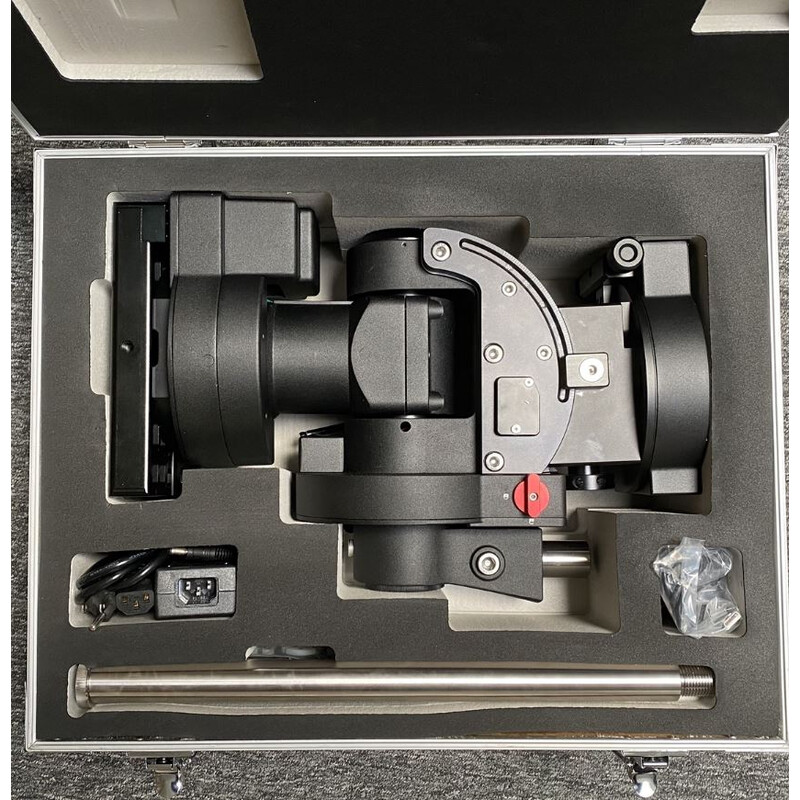

Casse da trasporto
si
<p>Cavalletto
senza treppiede
Cercatore polare
si
Trasformatore
si
Contrappesi
1

Generale


Peso totale (kg)
24
Serie
CEM
Tipo
Montatura
Tecnica di fabbricazione
equatoriale

Campi di utilizzo


Utile per fotografia
si
Utilizzabile per osservazioni visuali
si

Sistema di controllo GoTo


GPS
si
con pulsantiera
si
WLAN
si
Interfacce
Autoguider, USB
Autoguiding
si
Correzione PEC
si
Allineamento polare
iPolar
Lingua della funzione GoTo
Inglese
