Montature & Accessori > Montature > Equatoriale con GoTo > iOptron > GEM > iOptron Montatura GEM28EC LiteRoc
Prodotto n.: 74331

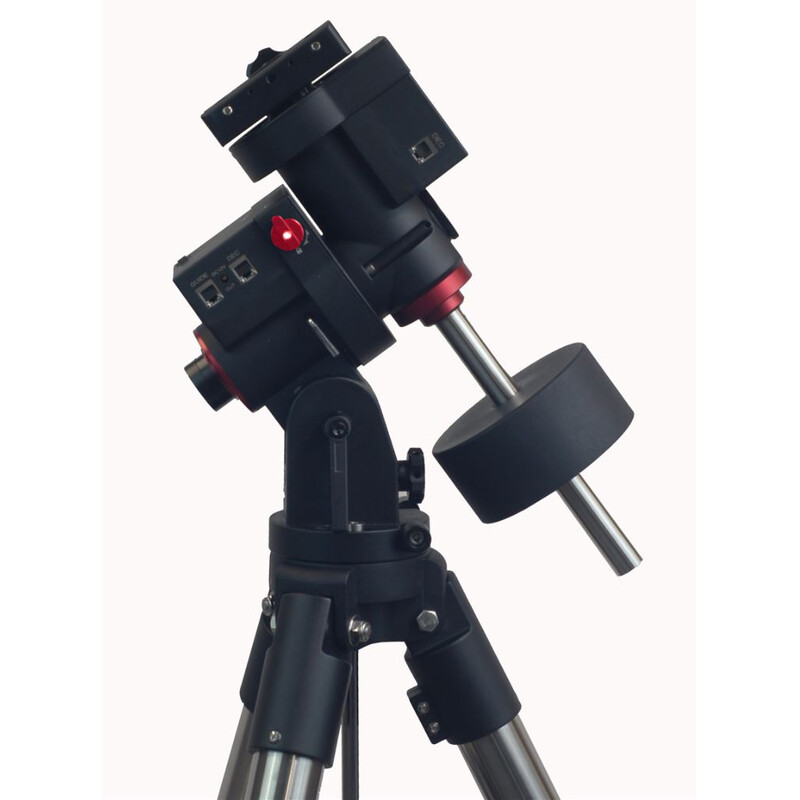

Montatura GEM28EC LiteRoc

$ 4.150,00 IVA incl., più spese di spedizione
troppo caro?
a lungo termine
disponibile in 6-10 settimane + Tempo di trasporto

Descrizione prodotto

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

Like most of iOptron’s GEM models, the new GEM28 is also designed to be easy to handle and simple to transport.

The mount can carry loads of up to 12.7kg and provides an optimally balanced weight-to-load ratio (2:8).

This ratio allows the lightweight mount to carry very high loads and is, therefore, ideally suited to mobile astrophotography and observation.

Additionally, iOptron has incorporated very useful functions for user comfort and advanced functionality into the new GEM28.

A built-in WiFi system (easy to use, even when wearing gloves) and integrated WiFi which now displays the periodic error permanently (PEC protocol).

In terms of functionality, the GEM28 provides precise pointing and exceptionally stable object tracking. With this, the GEM28 is setting new standards for medium-sized equatorial GoTo systems.

The GEM28EC is also equipped with the latest Go2Nova® technology, therefore it has some of the most powerful and precise GoTo utilities currently on the market.

The database, with 212,000 listed objects, ensures that you never run out of celestial targets...

The Go2Nova® hand-held controls are intuitive to operate and their large four-line LCD display makes it easier to set up the mount and to find objects in general.

The GEM28EC is equipped with an electronic “iPolar”.

The advantages at a glance:

  • Latitude range from 10° ~ 70°
  • Ideal for visual observations and astrophotography
  • Low periodic error (<± 10 arc seconds)
  • Load capacity of 12.7kg with a mount weight of only 4.5kg
  • Die-cast CNC-machined mounting head
  • Large, easy-to-use quick-lock couplings
  • Low-energy consumption stepper motors
  • Belt drive
  • “Easy Polar Alignment” for those unable to see the Pole Star
  • Go2Nova® hand-held controls with advanced GoTo technology
  • Integrated ST-4 autoguiding port
  • Built-in WiFi
  • USB connection for firmware updates and computerised controls
  • Die-cast metal tripod spreader with accessory shelf
  • Optional 32-channel GPS
  • Optional iGuider autoguiding system

Commento del nostro esperto:

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

The thumb turns on the side of the GEM28’s top plate/prism clamp are designed not to stick out much so that, on some models of this mount, the turn may become stuck in or scrape against the casing for the declination axis. Here, 1-2 hard plastic or metal washers can be used to fix this issue. The washers increase the distance between the thumb turn and the casing.

(Jan Ströher)

Specifiche

Prestazioni


Denominazione
GEM
Portata massima (kg)
12.7
Regolazione dell'altezza della polare (°)
10°-70°
Velocità del motore
1, 2, 8, 16, 64, 128, 256, 512
Precisione di posizione
+/-6
Precisione dell'inseguimento
0.17
Materiale dell'ingranaggio elicoidale
Alluminio
Materiale della ruota elicoidale
Ottone
Denti della ruota elicoidale (RA)
144 (Alluminio)
Contrappeso/i
1
Materiale dei contrappesi
Acciaio
Diametro della barra per contrappeso (mm)
20
Software
Go2Nova
Display
Display LCD con retroilluminazione
Database
212.000
Connessione pulsantiera
Cavo USB & ST4
Interfacce
ST-4, HBX, USB, DEC
Guidacavo
interno
Temperatura di operatività
-10 bis +40
Alimentatori
12V DC, 5A
Consumo di corrente a circuito aperto (mA)
0.9

Particolarità


Scala dell'altezza della polare
si
Aggancio per slitte a coda di rondine
- (Vixen)
Correzione PEC
si (permanent)
Sistema GoTo
si
GPS
- (opzionale)
Controllo da PC
si
Aggiornabile via web
si
Vassoio per accessori
si

Equipaggiamento


Casse da trasporto
si
Cercatore polare
si
Trasformatore
si
Cavo
USB

Cavalletto


Materiale del cavalletto
Acciaio inossidabile
Peso del cavalletto (kg)
7

Generale


Colore
rosso-nero
Peso totale (kg)
22
Serie
GEM

Sistema di controllo GoTo


WLAN
si
Modalità di allineamento
3-Star Alignment, 2-Star Alignment, 1-Star Alignment
Autoguiding
si
Correzione PEC
si
Velocità d'inseguimento
siderale, solare e lunare
Allineamento polare
Easy Polar Alignment
