Astrofotografia > Fotocamere > Starlight Xpress > SXVR-H > Starlight Xpress Fotocamera Camera colori CCD SXVR-H9C
Prodotto n.: 12408

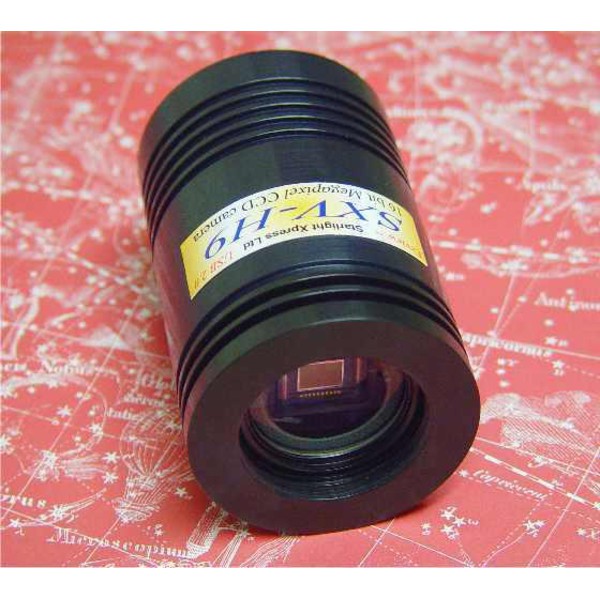

Fotocamera Camera colori CCD SXVR-H9C

$ 1.930,00 IVA incl. più spese di spedizione
troppo caro?
a lungo termine
Prodotto non più disponibile + Tempo di trasporto

Descrizione prodotto

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

SXVR-H9C

  • Large, high resolution 'Exview' CCD chip, with 1,447,680 x 6.45uM pixels in a 9 x 6.7mm array

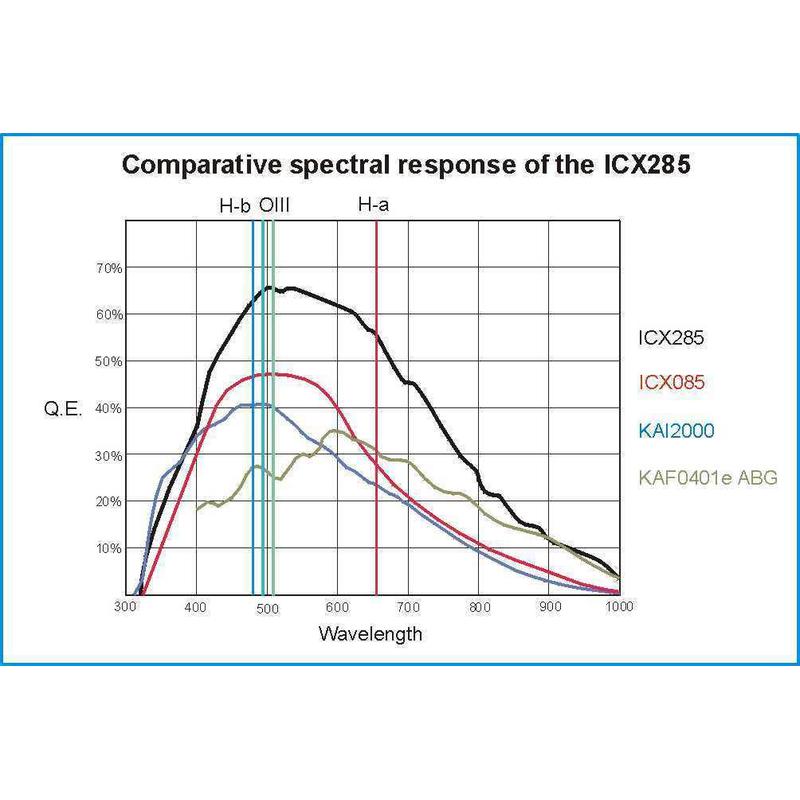

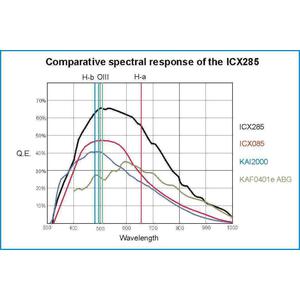

  • Exceptionally high QE over an extremely wide spectral range from near UV to deep IR
  • Exceptionally low dark signal - No dark frames necessary for most deep sky objects
  • Exceptionally effective anti-blooming with minimal effect on linearity and no lost active area

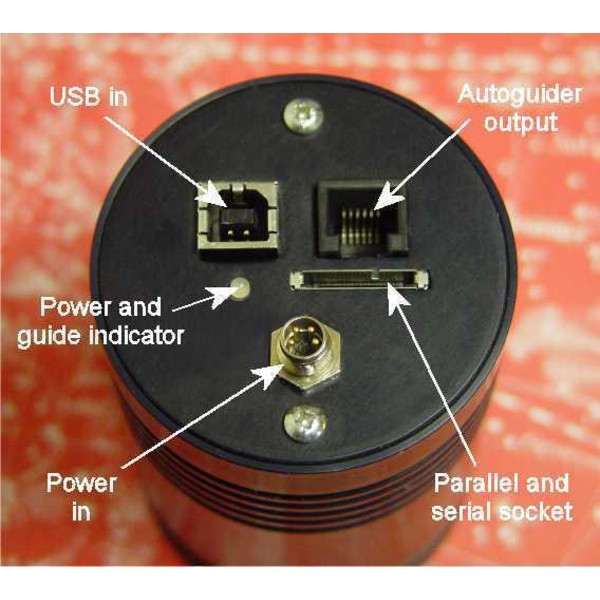

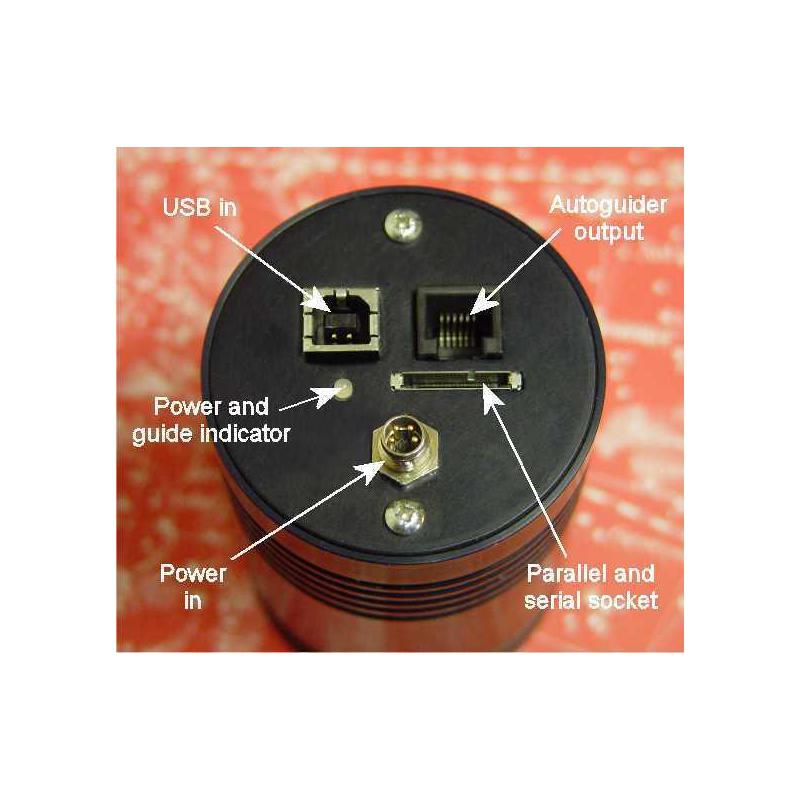

  • Built-in very high speed USB 2.0 interface for sub-1 second downloads
  • Built-in autoguider interface and output - compatible with the optional dedicated external guide camera
  • Built-in dual serial ports for accessory control - directly drive filter wheels, GOTO 'scopes etc.
  • Single USB cable control for all features - get rid of that dangerous cable tangle!
  • Only ONE computer needed to control all of the devices and functions
  • Very low power consumption. Less than 1 amp at 12v DC

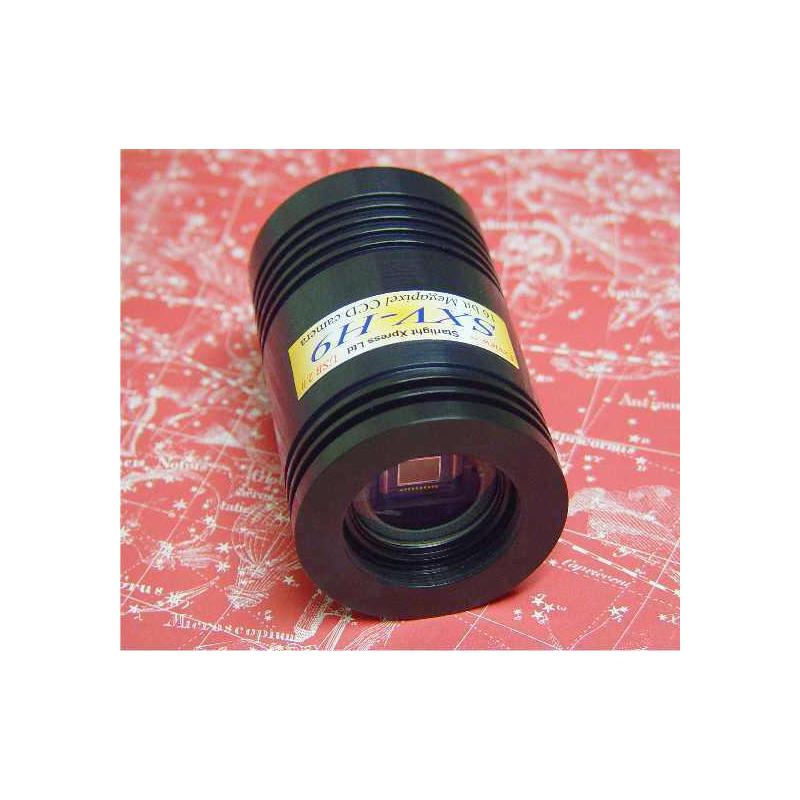

  • Compact and lightweight - only 75mm in diameter x 70mm long - less than 300 grams load on the 'scope!

Specifiche

Prestazioni


Tipo di fotocamera
Camera Astro CCD
Tipo di sensore
chip CCD
Dimensioni del chip (mm)
8,98mm x ,6,7mm
Megapixel
1,4
Dimensione pixel
6,45x6,45µm
Camera a colori
si
Risoluzione foto
1392 x 1040
Rumore di lettura
7
Efficienza quantica a 500nm (campo verde)
65
Efficienza quantica a 600nm
61
Efficienza quantica a 656nm (Nebulosa H)
56
Efficienza quantica a 700nm
45
Antiblooming
si
Profondità di bit (Bit)
16
Raffreddamento
si
Differenza max. di raffreddamento sotto la temperatura ambiente
30
Alimentatori
12
Consumo elettrico (mA)
750
Interfacce
USB 2.0
Autoguida
si
Connessione (lato telescopio)
1,25"
Filetto per filtro
si

Generale


Lunghezza (mm)
95
Larghezza (mm)
63
Peso (g)
350
Serie
SXVR-H
Colore
nero

Sicurezza del prodotto

Produttore: Starlight Xpress Ltd., Unit 3, Brooklands Farm Business Park, Bottle Lane, Binfield, RG42 5QX Berks, http://www.starlight-xpress.co.uk/
Persona responsabile: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
