The automatic tracking control called autoguiding is recommended for long exposure DeepSky shots. The method has proven itself, both for inexpensive and very high-quality mounts. If you use an off-axis guider (OAG), you save yourself the purchase and installation of a second lens (guide tube) for guiding.

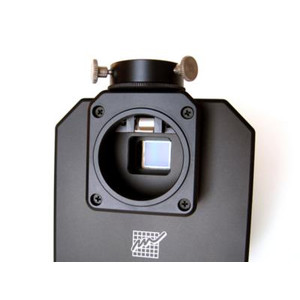

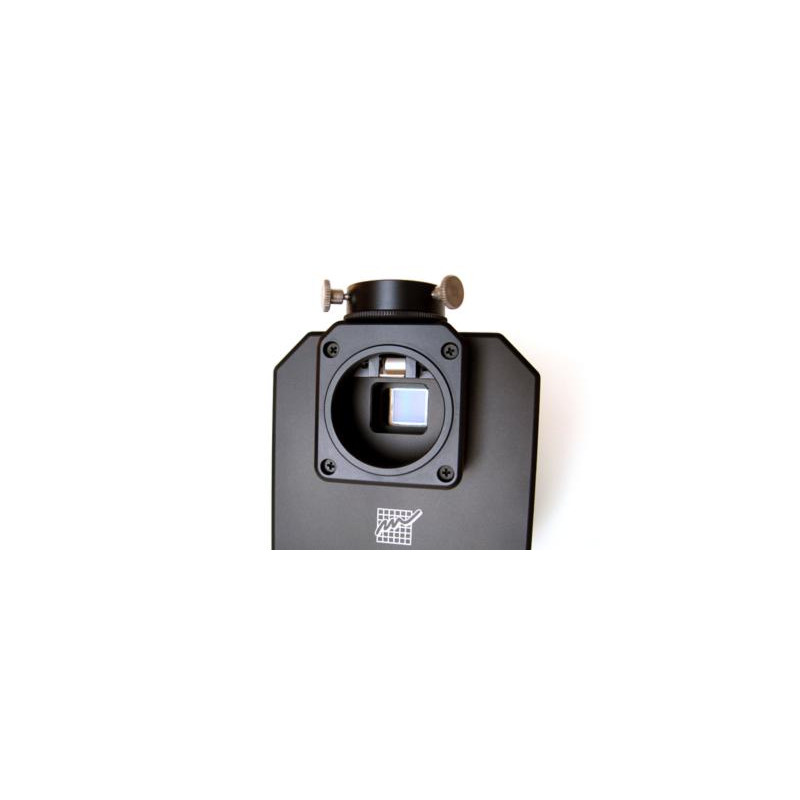

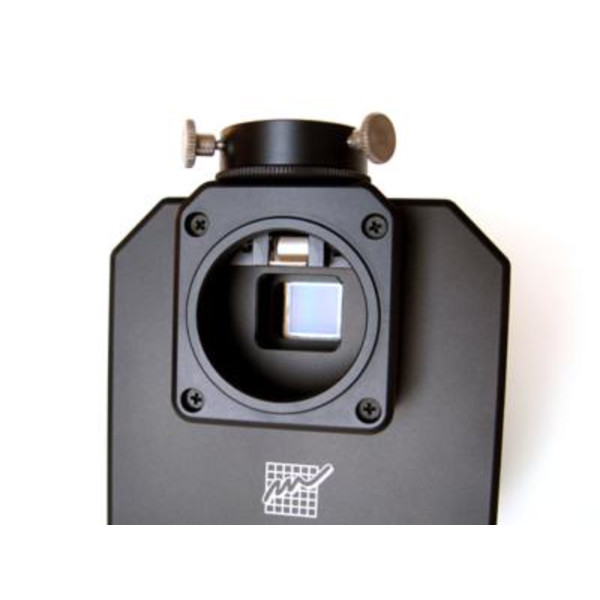

Moravian continues the consistent path here and screws the new OAG directly to the housing of the G2 series cameras.

Additional advantages:

• The optimized position of the prism prevents shading on the camera sensor
• the length of the Off Axis Guider is ideal to achieve exactly 55mm working distance
• The off-axis guider is ideal for the Moravian G0 autoguider, the distances are exactly right
• other autoguiders can be connected via a 1.25 "receptacle

Connection of the OAG:

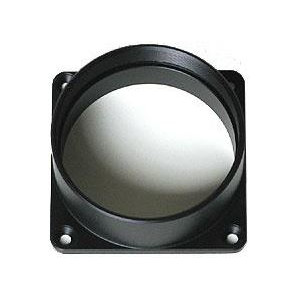

• For G2FW cameras with an internal filter wheel, you have to use the spacer , then you will come to a working distance of 55mm from the connection thread on the telescope to the camera sensor.
• For G2 cameras with an external filter wheel, connect the Off-Axis-Guider directly, you use the shorter screws, then you come exactly 55mm working distance from the connection thread on the telescope side to the camera sensor.
