Microscopi > Accessori Microscopia > Iluminazione > Lampade ad anello > StarLight Opto-Electronics > RL1 > StarLight Opto-Electronics RL1-10 WW, warm-weiß (3.500 K)

RL1-10 WW, warm-weiß (3.500 K)

Giallo
disponibile in 1-2 settimane + Tempo di trasporto
Questo prodotto è disponibile nelle seguenti varianti:
Prezzo
$ 408,00
IR (880 nm) $ 450,00
UV (365 nm) $ 680,00
UV (375 nm) $ 550,00
UV (405 nm) $ 436,00
ambra (590nm) $ 408,00
bianco (5.600 K) $ 366,00
bianco (3.500 K) $ 366,00
bianco puro (6500K) $ 366,00
blu (470nm) $ 408,00
verde (540nm) $ 408,00

Descrizione prodotto

LED ring lights

A round thing in many sizes

Mini LED ring lights RL1 and RL2

The RL1 and RL2 miniature LED ring lights are ideal for use where space is limited, due to their compact size. Nevertheless, these ring lights provide a lot of light, eg for camera applications or as lighting for production machines. Both series are available with two different nominal working distances, which is achieved by different LED installation angles.

LED ring lights RL4 and RL5

The series RL4 and RL5 are primarily designed as reflected-light illumination for microscopy. The working range of the ring lights is selected so that the focus is at the typical distance of the objective and the stage from standard microscopes. Both series are available with two inner diameters, so that the right model is available for all common microscope types.

Power LED ring light RL12

The RL12 power LED ring light offers enormous brightness thanks to the twelve 3W LEDs and is suitable for applications with increased light requirements, eg in conjunction with high-speed cameras. Thanks to five different variants with different geometries, the perfect lighting is available for both small and large working distances.

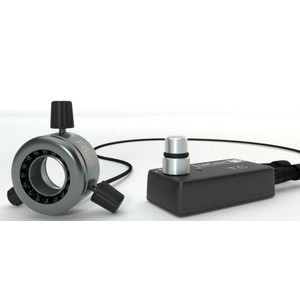

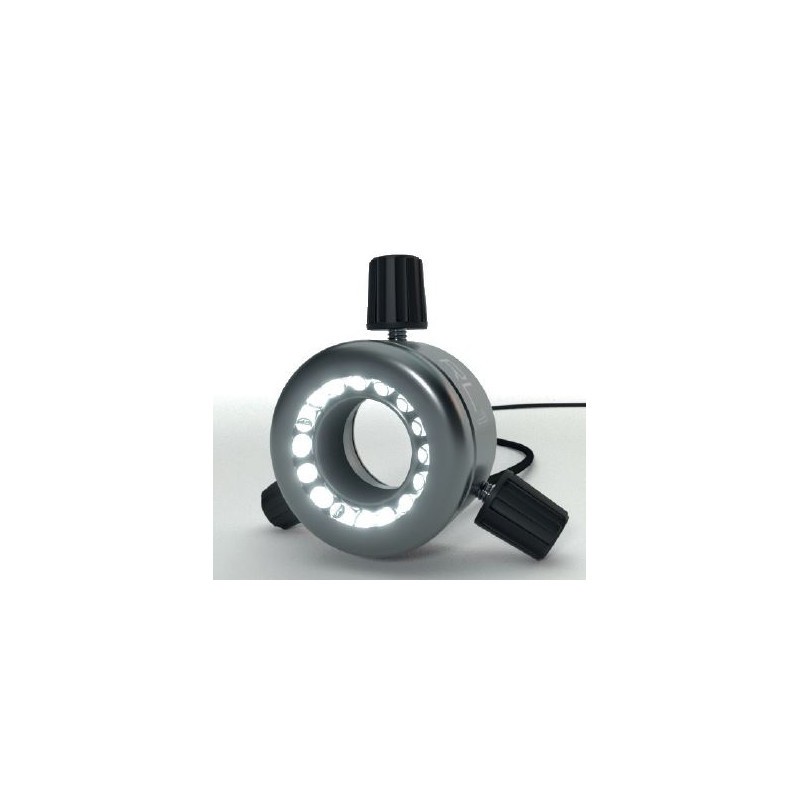

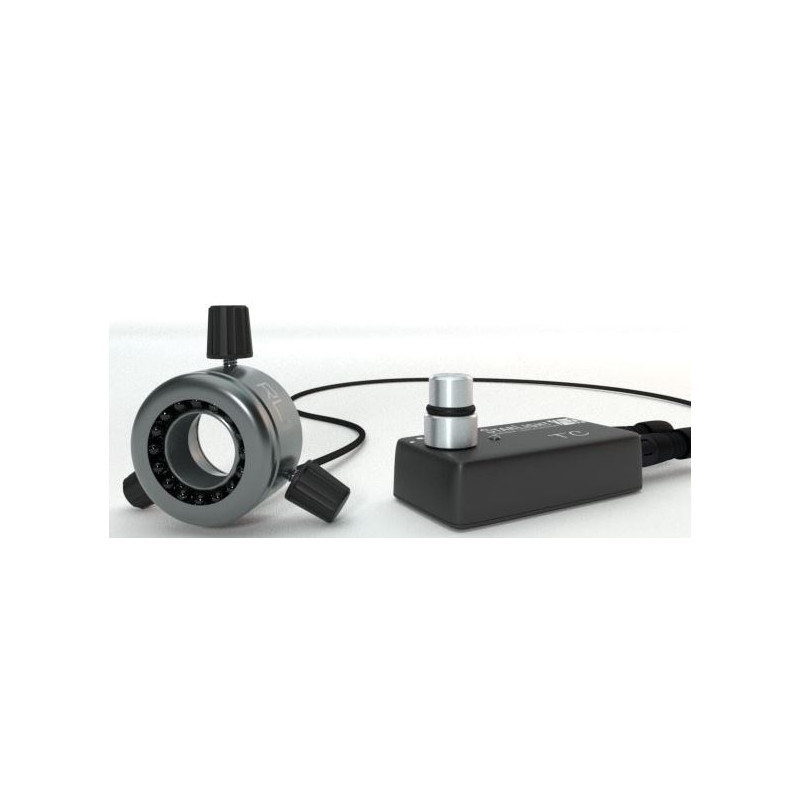

Mini LED ring light RL1-10

compact LED ring light for working distances from 5 mm to 25 mm

The LED ring light RL1-10 is the perfect incident light illumination for applications with cameras and lenses in industrial image processing. The high-quality, high-intensity LEDs provide homogeneous illumination throughout the entire work area.

Like all StarLight products, the RL1-10 ring light is characterized by high workmanship and serviceability.

Highlights

• robust aluminum housing in a modern design

• Brightness adjustment between 0% - 100% with memory function

• flicker-free light through optimized, low-loss electronics

• variable clamping diameter, adaptable with reducing rings

• available in different light colors and color temperatures

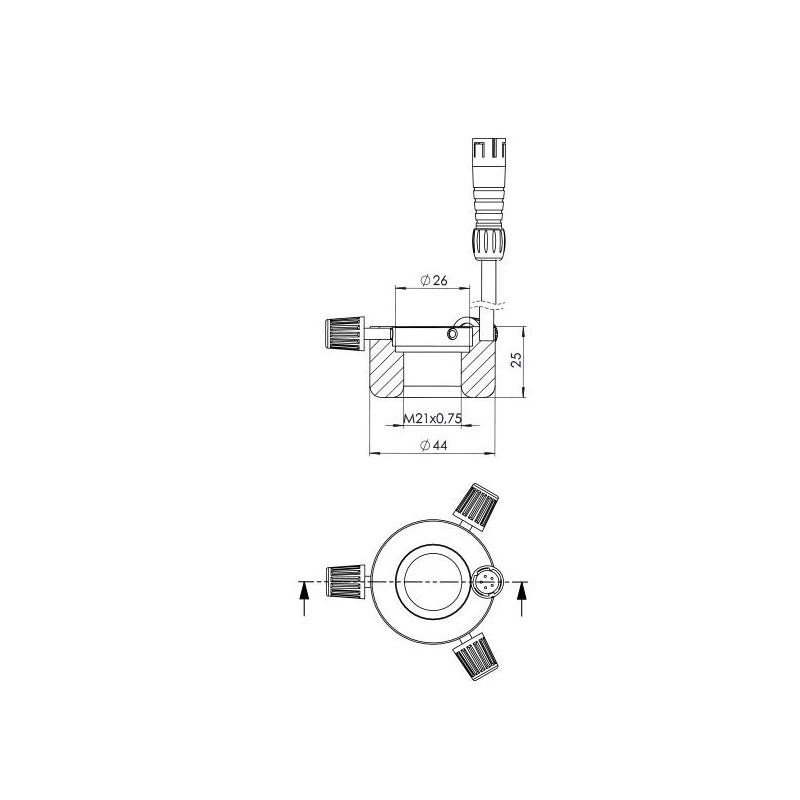

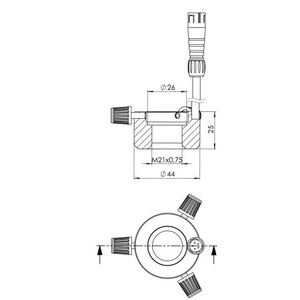

Technical specifications

Working distance 5 mm - 25 mm

Optimal working distance approx. 10 mm

Illuminance (at 10 mm working distance ) 130 klx

Diameter light spot (at 10 mm working distance) 14 mm

Number of LEDs 16

LED life 50,000 h (manufacturer)

Height 25 mm

Outer diameter 44 mm

Inner diameter 20 mm

Clamping diameter max. 26 mm

Internal thread M21 × 0.75

Material anodized aluminum color titan

Weight ring light approx. 60 g

Input power supply 100 - 240 V AC, 50 - 60 Hz

Output power supply 24 V DC, 1 A

maximum power consumption 4 W

Dimension control (L × W × H) 78 mm × 38 mm × 21 mm

Specifiche

Meccanica


Distanza di lavoro (mm)
5-25
Segmentato
no
Diametro dell'obiettivo (mm)
20

Generale


Diametro (mm)
20 / 44
Colore
bianco (3.500 K)
Serie
RL1
StarLight Opto-Electronics RL1-10 WW, warm-weiß (3.500 K)
StarLight Opto-Electronics RL1-10 WW, warm-weiß (3.500 K)
StarLight Opto-Electronics RL1-10 WW, warm-weiß (3.500 K)
StarLight Opto-Electronics RL1-10 WW, warm-weiß (3.500 K)
