Accessori Telescopi > Focheggiatore manuale > Motori & Pulsantieri > Starlight Instruments > Starlight Instruments Electronic Focusing System (EFS)
Prodotto n.: 67947

Electronic Focusing System (EFS)

Prezzo di vendita consigliato: $ 670,00 Il nostro prezzo:
$ 500,00 IVA incl., più spese di spedizione
troppo caro?
a lungo termine
spedibile in 3-6 mesi + Tempo di trasporto

Descrizione prodotto

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

Starlight Instruments has released its new Electronic Focusing System (EFS), which is especially suitable for the electronic focuser of the WO Cat-Series like "SpaceCat" and "RedCat" (item #66743). The EFS works through any ASCOM compliant software.

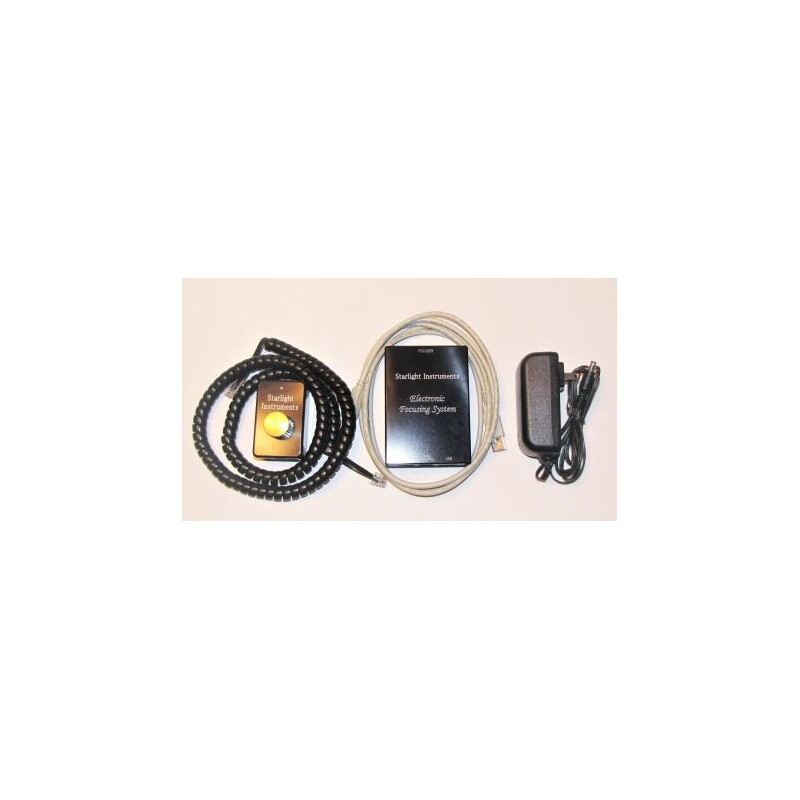

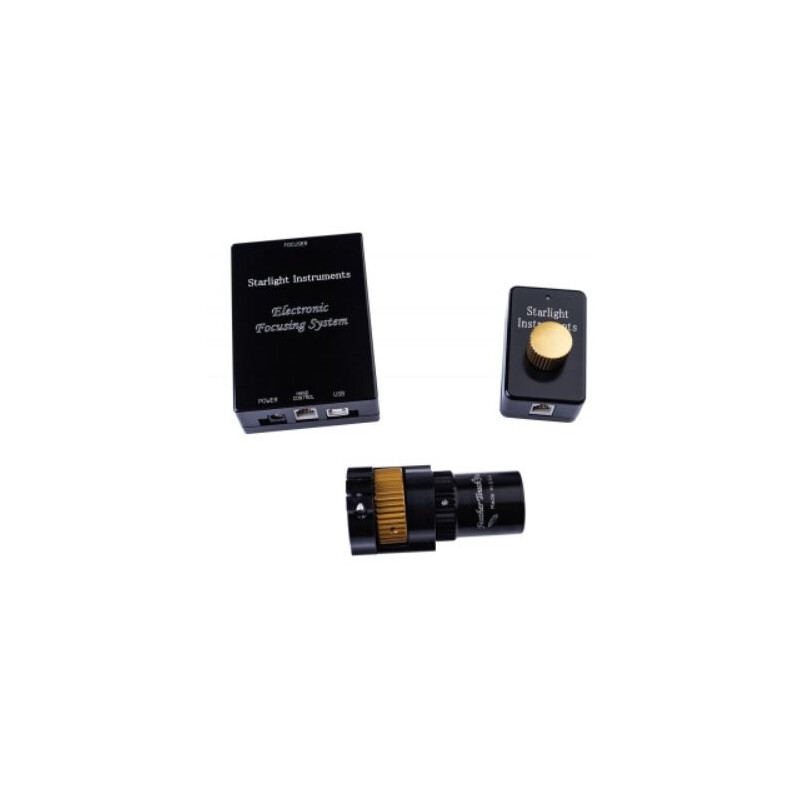

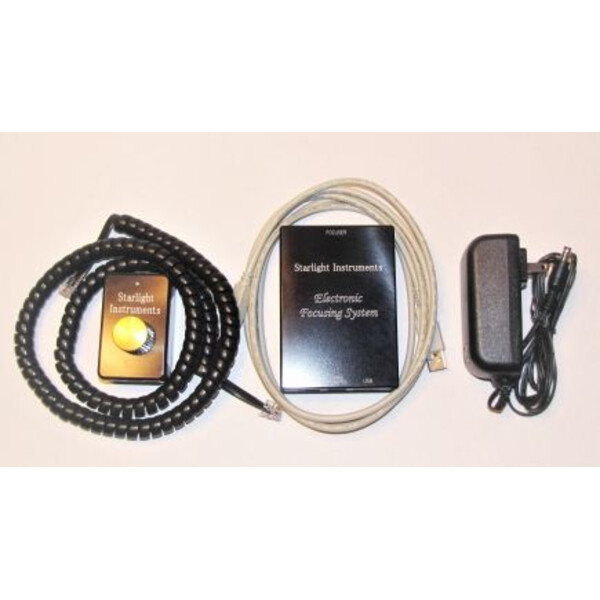

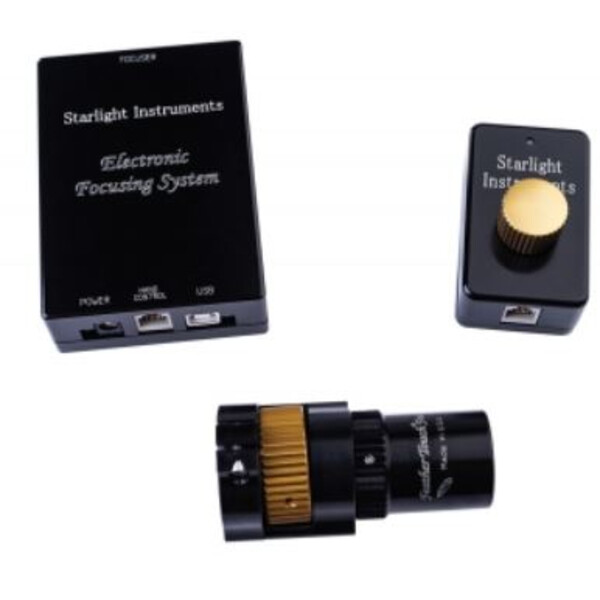

This system comes standard with the digital hub plus hand controller.

The control box and hand control are lightweight and compact.

The control box is 4.13" (105mm) long, 2.87" (73mm) wide and 1.1" (28mm) thick.

The EFS system draws a maximum 1 amp of power @ 12V and can be controlled by standard USB cable.

The motors connect to the EFS control hub via Ethernet cable and the hand controller is connected to the EFS control hub via RJ11 cable.

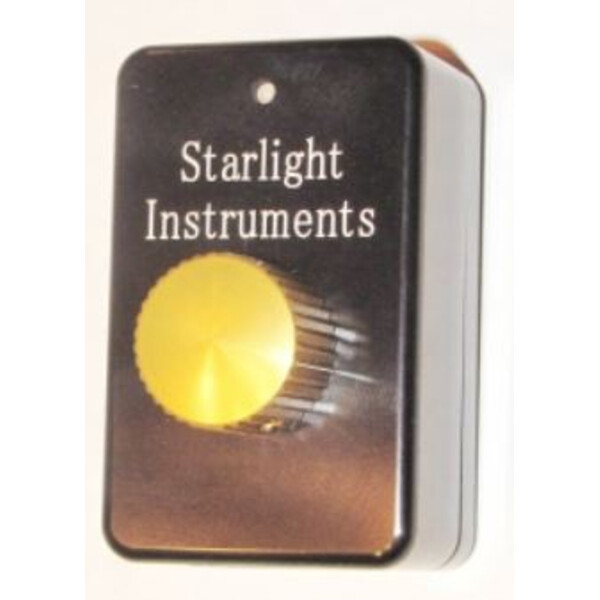

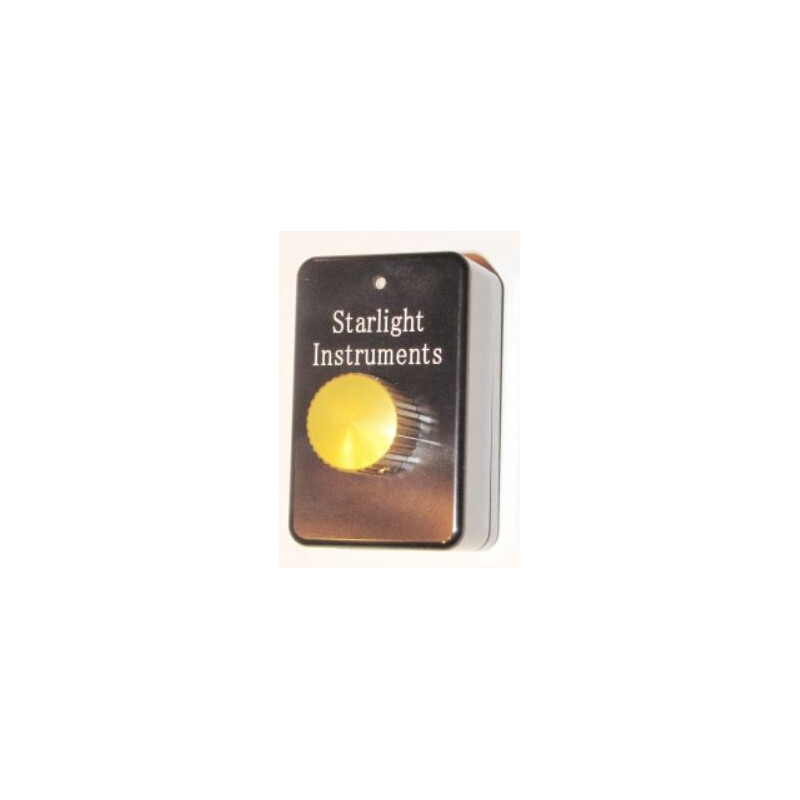

The hand controller has an innovative feature in that you can change the number of steps the focuser moves from 1 step, 10 step, or 100 step increments. This is done by pressing the knob on the hand controller. Each step speed has an LED light mode - red at 1 step, amber at 10 and green at 100.

All cables are supplied with the EFS.

Specifiche

Prestazioni


Connessione pulsantiera
Disponibile
Tipo di motore
Motore passo-passo
Tensione d'entrata
12

Particolarità


Aggiornabile via web
si
Controllo manuale
si
Interfaccia Pc
si
Controllo da PC
si

Equipaggiamento


Cavo
USB
Trasformatore
no

Generale


Tipo
Alimentatori
Tecnica di fabbricazione
Motori & Pulsantieri
Starlight Instruments Electronic Focusing System (EFS)
Starlight Instruments Electronic Focusing System (EFS)
Starlight Instruments Electronic Focusing System (EFS)
