Shortly:
- 6x USB 2.0
- 6x 12V DC outputs
- 1x always-on DC output
- Supply voltage: 11-14V DC (max 8A)
The Wanderer Box Plus V2 is equipped with 6x 12V DC outputs, 6 USB 2.0 ports. Thanks to this box, you avoid numerous cables on your telescope and have a much tidier system.

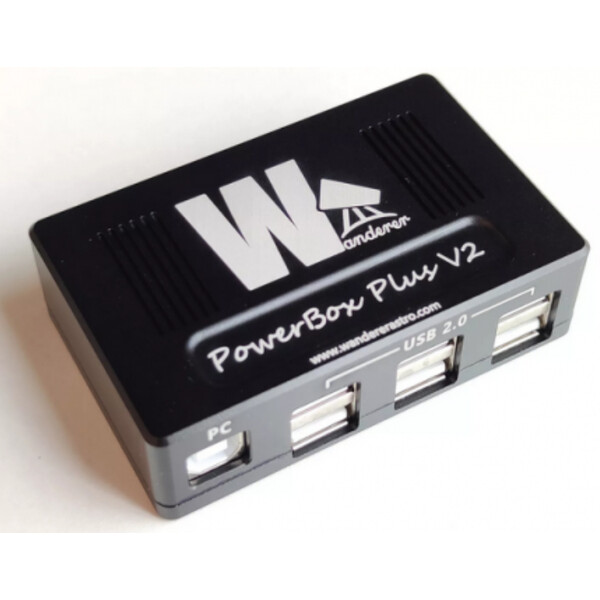

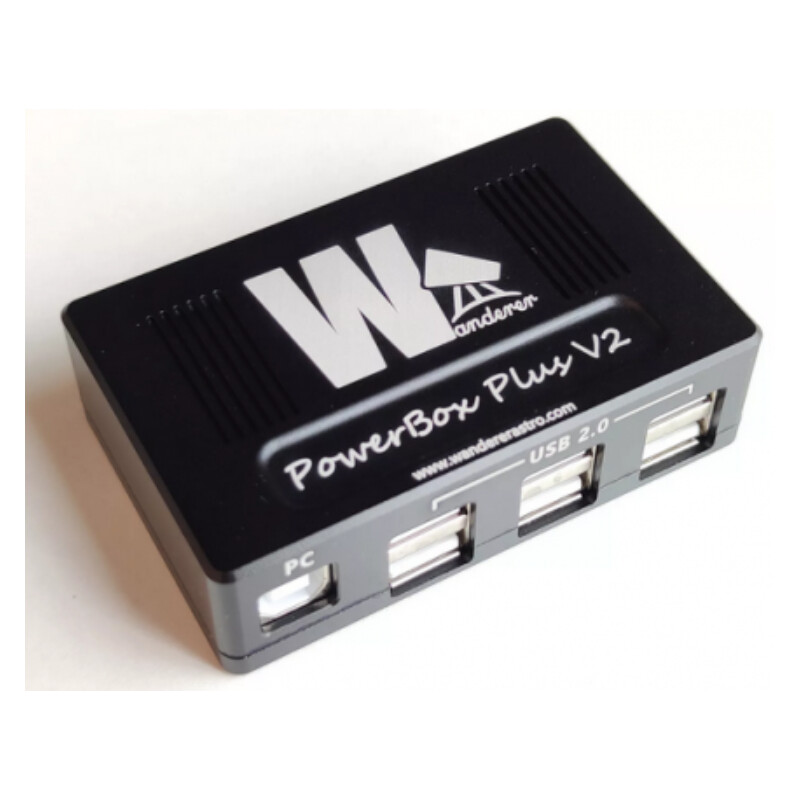

All USB 2.0 ports can be switched on or off independently and are protected against moisture and electrostatic charges.

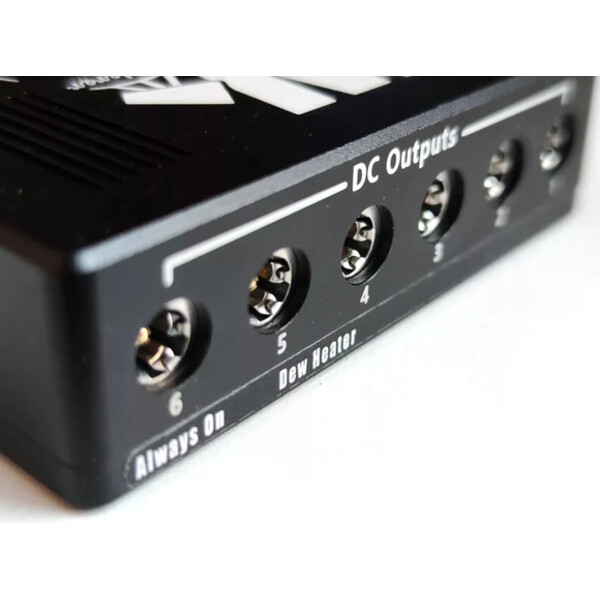

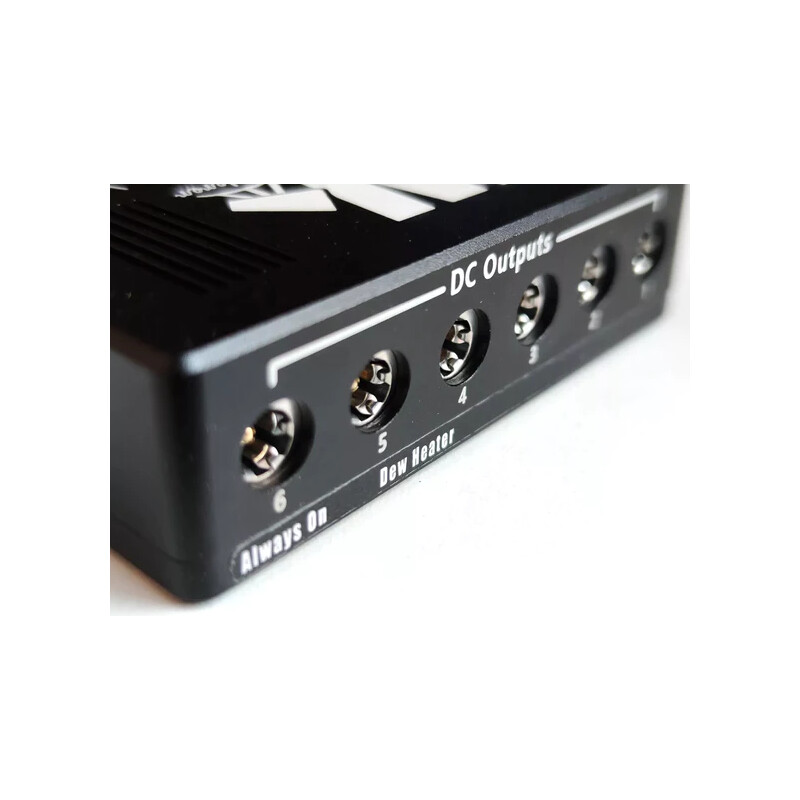

Port 6 is an always-on DC output, perfect for products that need to be always on when using your PC.
Ports 4 and 5 are PWM outputs that allow manual or automatic control of the dew protection bands.
Ports 1, 2, and 3 are DC outputs that you can use to power your camera, rotator, or focuser. All three can be connected in parallel.
If you don't have dew protection bands, you can convert ports 4 and 5 to switch mode, then they will behave like the other DC ports (1,2,3).

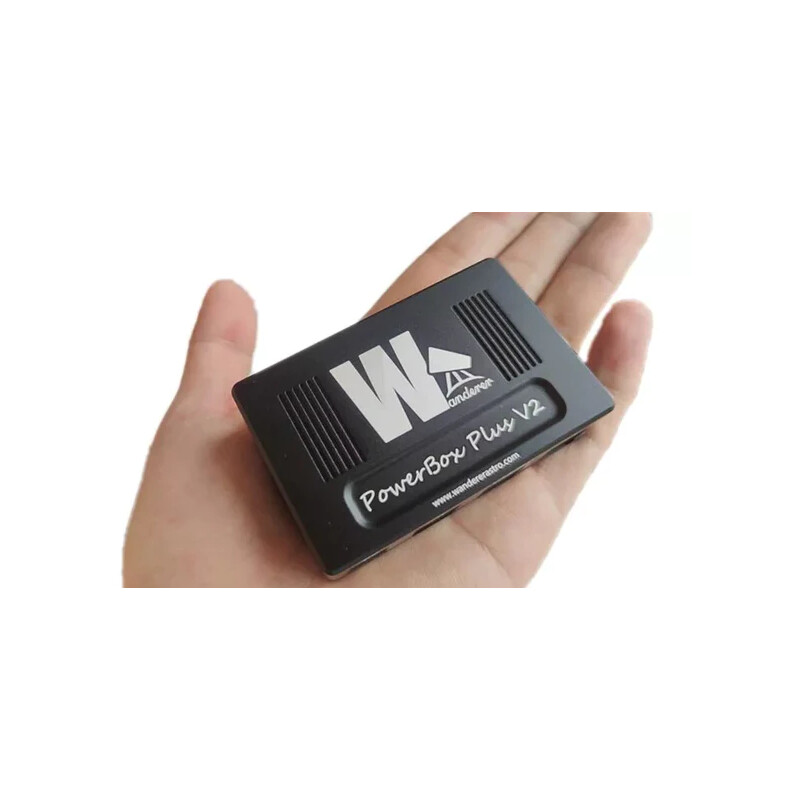

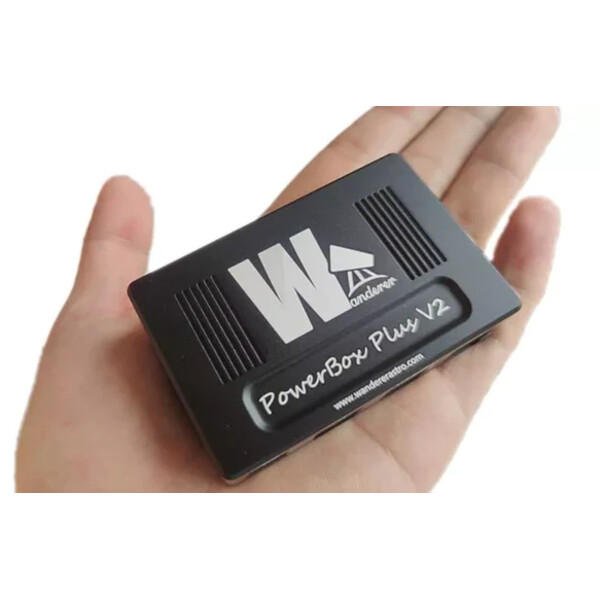

With a weight of only 122g, the Wanderer Box Plus V2 is the ideal partner for all applications.
An integrated step-down module makes it possible to guarantee up to 3A current continuously without latency.
Attention, for cameras that use USB 3.0 ports (e.g. planetary cameras), we recommend the Wanderer PowerBox Ultimate V2, which includes USB 3.1 ports
