Descrizione prodotto

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

The ACIS series is the currently fastest camera series from Atik, with full frame speeds of up to 30 fps. Designed not only to exceed the high demands required for scientific imaging, the ACIS also performs expertly in astronomical imaging. Manufactured at Atik's ISO 9001 certified European premises to the very highest standards, the ACIS is designed to provide reliable and excellent service for many years.

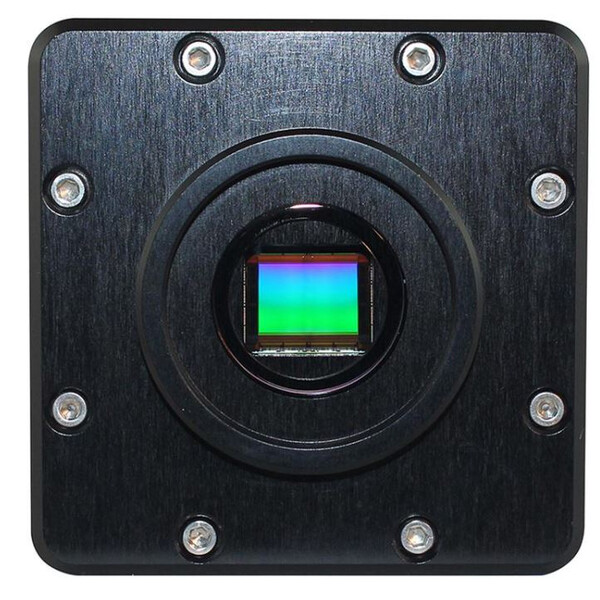

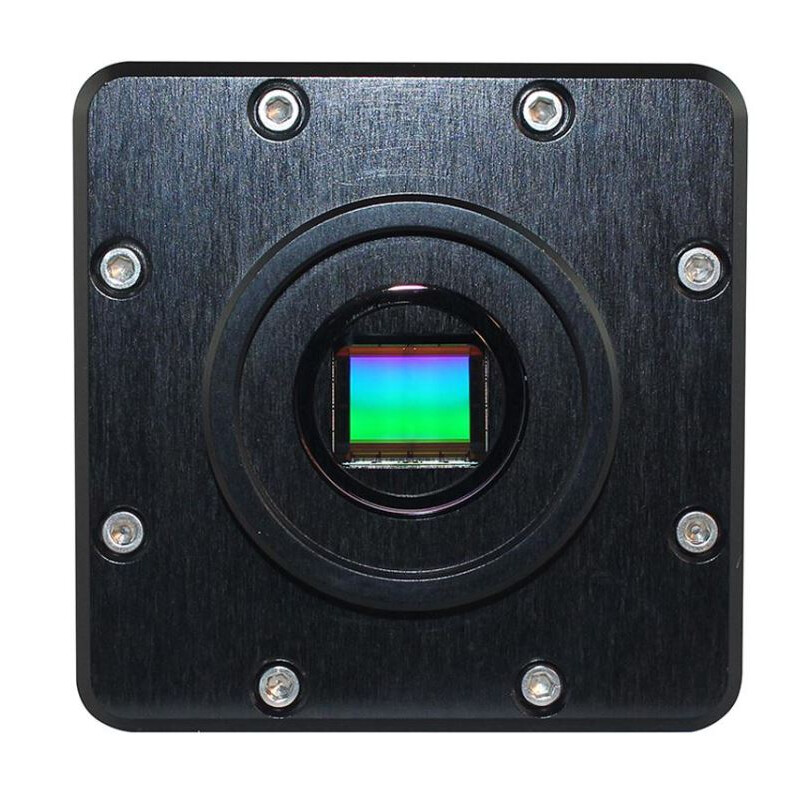

An innovative design based upon the Sony IMX sensors, the ACIS houses the sensor in a dried, air-tight environment which is sealed to industrial standards to enable condensation free imaging. The camera has low read noise and can image at the rapid speeds. With the signature Atik blend of form and function, the ACIS provides a sensitive sensor at a competitive price point.

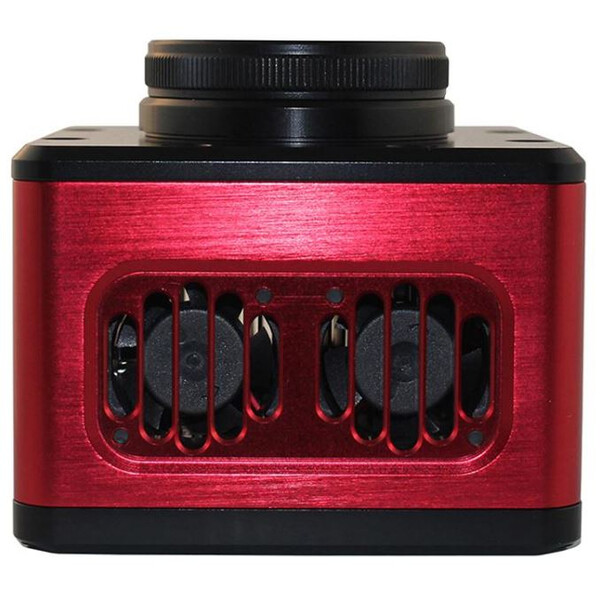

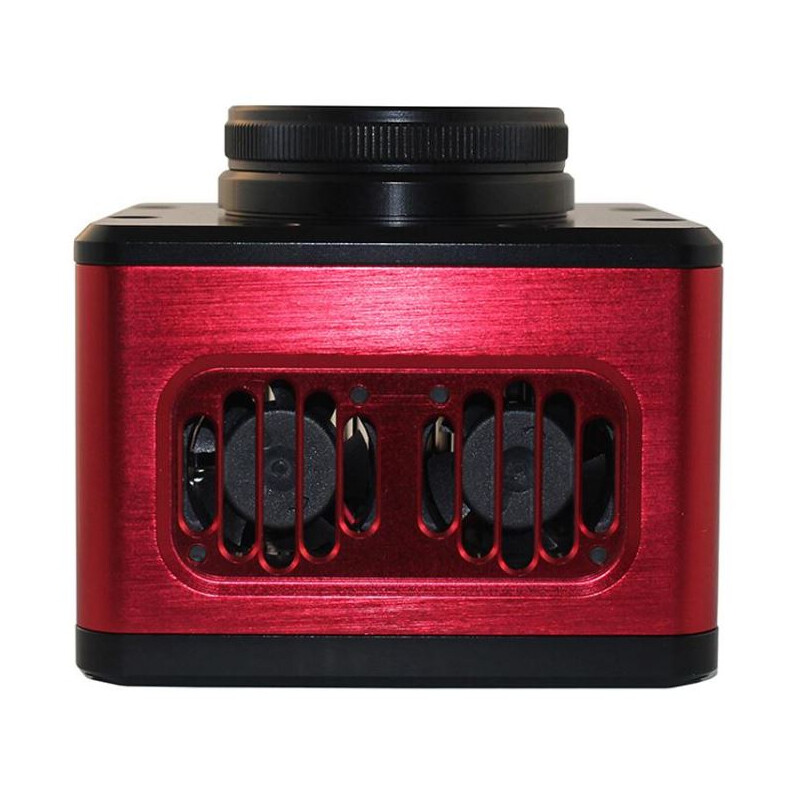

The ACIS also possesses a new case design that has allowed the camera to achieve a cooling delta of -35°C below ambient, this keeps thermal noise under control, irrespective of where you are imaging from.

The Atik ACIS offers three different power modes:

  • PowerSave Mode - Allows for the highest quality images to be taken
  • Normal Mode - The camera operates at its default setting to allow for normal imaging
  • Fast Mode - Takes advantage of the on-board DDR memory to return a constant stream of images. Fast mode increases the frame rate to 30FPS. This can increase to 175FPS through the use of sub framing

Atik's Signature Software
The ACIS is natively compatible with Atik's Infinity live stacking software to provide astrophotographers with incredible views of the night sky in a near real-time environment. Our on-the-fly image processing gets you up and running quickly, minimising the learning curve many people experience. However, our advanced functions ensure you are always in control as you steer your way through the night sky

  • Live continuous stacking
  • Flexible histogram control, including auto-stretch functions
  • Live YouTube broadcast integration
  • Interactive session replay
  • Focus assist and monitoring tools
  • Save to FITs, PNG, JPG and TIFF formats

The ACIS is also fully compatible with Atik's renowned Capture and Dusk imaging software that gives you full control over your imaging. Full ASCOM driver are also supplied, so you're free to use it with your preferred astro imaging software. When used with Dusk, the ACIS can not only be used as a cooled deep sky imaging camera but can also be used for high speed planetary imaging with frame rates reaching 300 frames per second using the ROI function.

Amp Glow
From the outset, the ACIS camera has benefited from a built-in 256mb DDR3 image buffer to help remove amp glow and other artifacts caused by data transfer over USB2, all while preventing issues with dropped frames. This makes for a seamless and fast imaging experience, whether you're taking advantage of the flexibility and low cable weight of USB2, or the fast speeds of USB3.

Atik's experience of working with demanding scientific applications has given us an advanced understanding of sealing techniques. This understanding allows us to create a condensation free environment, and means your desiccant lasts much longer between recharges. The ACIS uses the same quartz fused cover glass as our Atik 4 series cameras to prevent condensation forming on the outside of the glass when the camera's cooled. This added level of performance and reliability means you can spend less time maintaining your equipment, and more time imaging with it.



Tipo di sensore
Chip CMOS (IMX 249)
Dimensioni del chip (mm)
11,3 x 7,1
diagonale chip (mm)
Dimensione pixel
Risoluzione foto
1936 x 1216
Profondità di bit (Bit)
USB 3.0
Connessione (lato telescopio)
T2 (M42 x 0.75)
Camera a colori
Differenza max. di raffreddamento sotto la temperatura ambiente
Tempo di esposizione max. (min)
Tempo min. d'esposizione
Rumore di lettura
Full Well Capacity
Distanza piano focale e flangia (mm)
12 (2A)
Immagini per secondo


Ruota portafiltri


Peso (g)

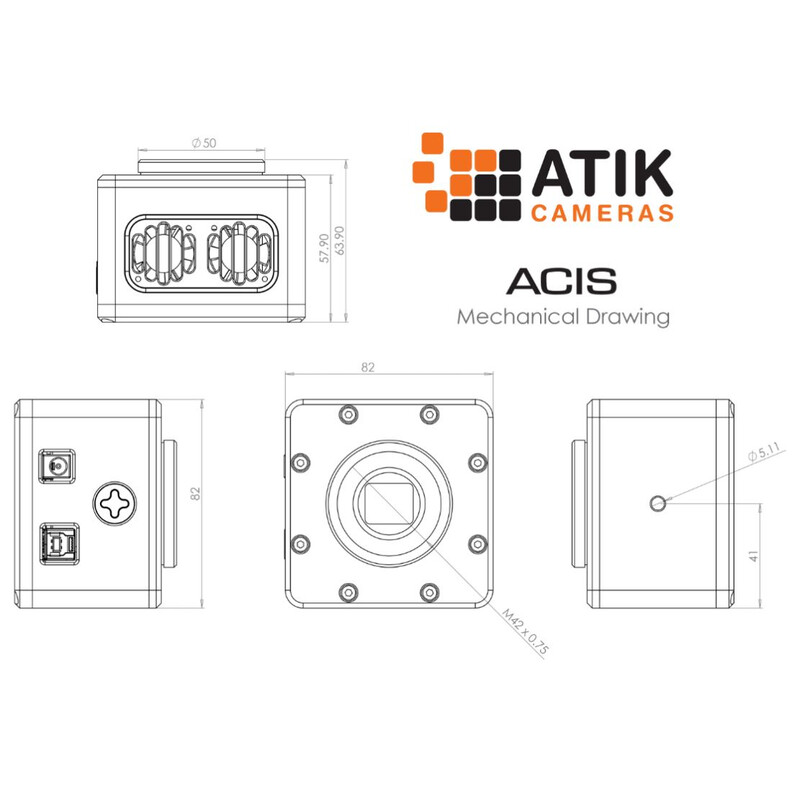

Dimensioni esterne Lunghezza x Larghezza x Altezza (mm)
82 x 82 x 58

Campi di utilizzo

AllSky, Meteore
Luna e pianeti
Nebulose e Galassie

Accessori raccomandati

Filtro (2)
Filtro blocca banda

Omegon Filtro UV/IR CUTOFF 1.25''

$ 79,00*
Spettrografia & Fotometria (1)

Paton Hawksley Spettroscopio Star Analyser 100

$ 193,00*

*Tutti i prezzi includono IVA e costi di spedizione.

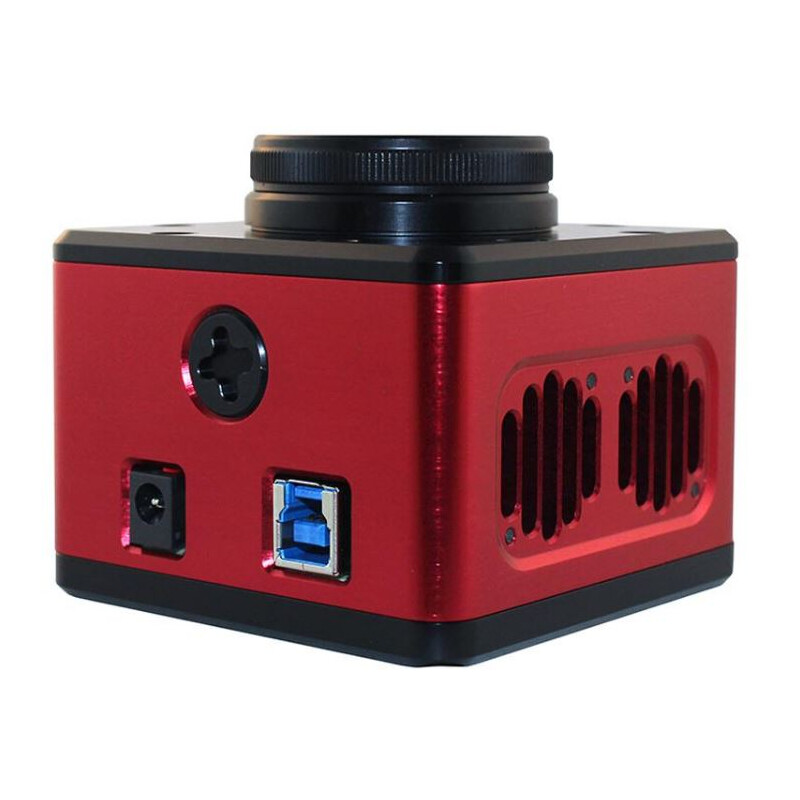

Atik Fotocamera ACIS 2.4 Color
