Astrofotografia > Fotocamere > Telecamere astronomiche > Moravian > G4 > Moravian Fotocamera G4-16000 Mono
Prodotto n.: 50324

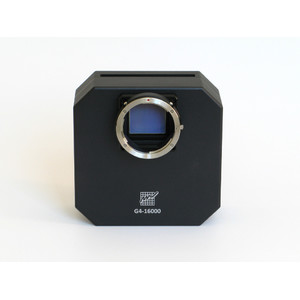

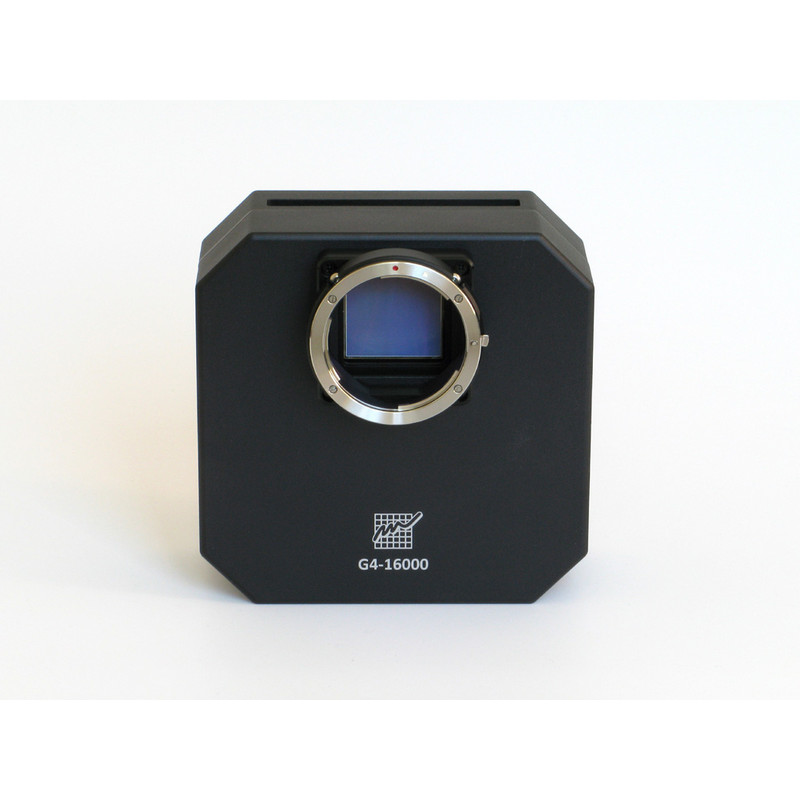

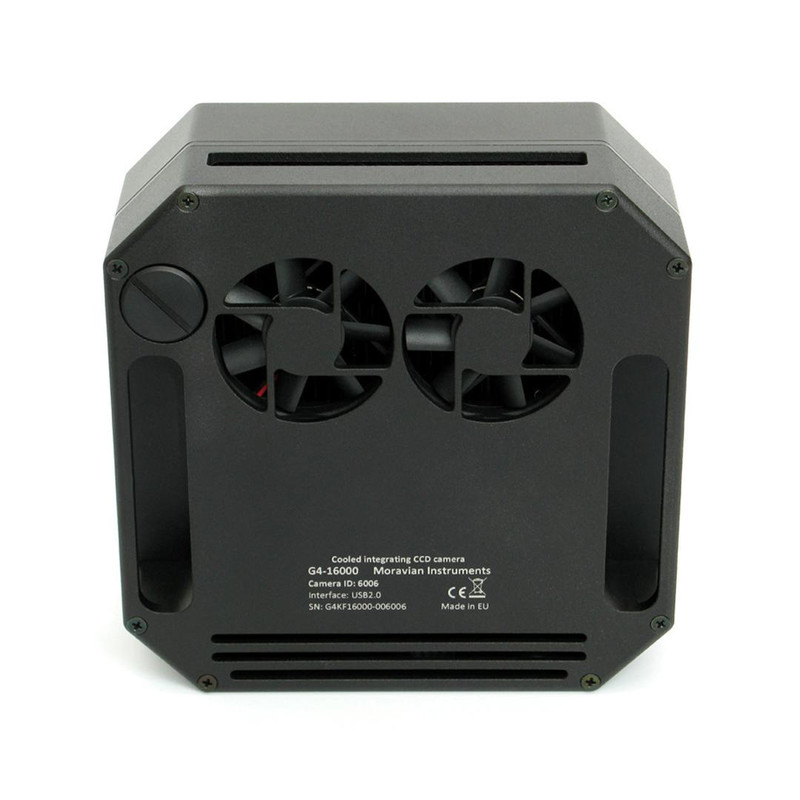

Fotocamera G4-16000 Mono

$ 8.400,00 IVA incl., più spese di spedizione
troppo caro?
a lungo termine
Prodotto non più disponibile + Tempo di trasporto

Descrizione prodotto

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

Cooled CCD cameras of G4 series contain detectors with 36 × 36 mm area, which is 50% more than photographic “full-frame” format. G4 camera dimensions are the same like dimensions of G3 series, with the exception of camera head thickness—G4 cameras are somewhat slimmer, because they do not contain internal filter wheel. Also camera handling, software control, power supply and connection to the host PC using fast USB 2.0 interface is the same like in the case of G3 cameras. Filter wheel for 50 × 50 mm square filters (round filters of 50 mm diameter cause vignetting on such large CCD chips) cannot be placed inside the camera head due to limited space. But it is possible to connect external filter wheel for 5 large filters to the G4 camera, the camera head already contains connector for external filter wheel control.

G4 cameras contain Full-Frame CCD chips OnSemi KAF. These detectors are equipped with so-called “anti-blooming gate” (ABG), which drains the over-abundant charge from saturated pixels. ABG ensures the round images of bright stars, without disruptive blooming spikes. On the other side, compromising of the CCD linearity by ABG is only negligible. G4 cameras can be used for astrometric and photometric applications as well as for astrophotography.

No matter if your target is reliable scientific data or beautiful images of deep-sky objects, G4 CCD cameras are able to provide both.

Specifiche

Prestazioni


Tipo di sensore
chip CCD (Kodak KAF-16803)
Risoluzione foto
4096 x 4096
Megapixel
16
Distanza piano focale e flangia (mm)
16,5
Raffreddamento
si
Dimensione pixel
9
Interfacce
USB 2.0
Connessione (lato telescopio)
M68
Camera a colori
no
Lunghezza del cavo (m)
1,5
Dimensioni del chip (mm)
36,9 x 36,9
Antiblooming
si
Profondità di bit (Bit)
16
Differenza max. di raffreddamento sotto la temperatura ambiente
45
Full Well Capacity
100.000
Corrente nera
3
Tempo di esposizione max. (min)
infinite
Tempo min. d'esposizione
0,2
diagonale chip (mm)
52

Equipaggiamento


Ruota portafiltri
no

Generale


Peso (g)
1600
Serie
G4

Campi di utilizzo


AllSky, Meteore
no
Autoguida
no
Luna e pianeti
no
Nebulose e Galassie
si

Accessori raccomandati

Accessori Telescopi (1)
Trasformatore

Moravian Trasformatore Alimentatore esterno 12V 5A

$ 59,00*
Filtro (4)

Moravian Ruota portafiltri per camera CCD G4 - 5x 50 mm - oppure per filtro 50 mm senza montatura

$ 510,00*
Astrofotografia > Adattore Fotocamera (3)

Moravian Adattatore M68x1 per camere G4 CCD

$ 75,00*
Astrofotografia > Altro (1)

Moravian Adattatore Ethernet per camere CCD da G0 a G4

$ 359,00*
Spettrografia & Fotometria (1)
Spettroscopio

Paton Hawksley Spettroscopio Star Analyser 100

$ 203,00*

*Tutti i prezzi includono IVA e costi di spedizione.

Moravian Fotocamera G4-16000 Mono

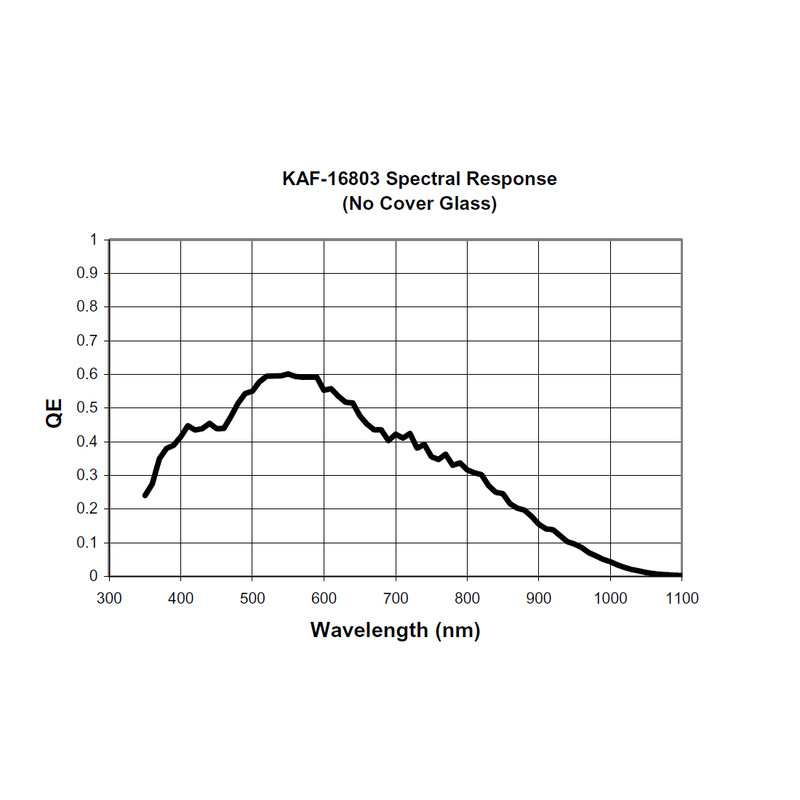

Efficienza quantica
Moravian Fotocamera G4-16000 Mono

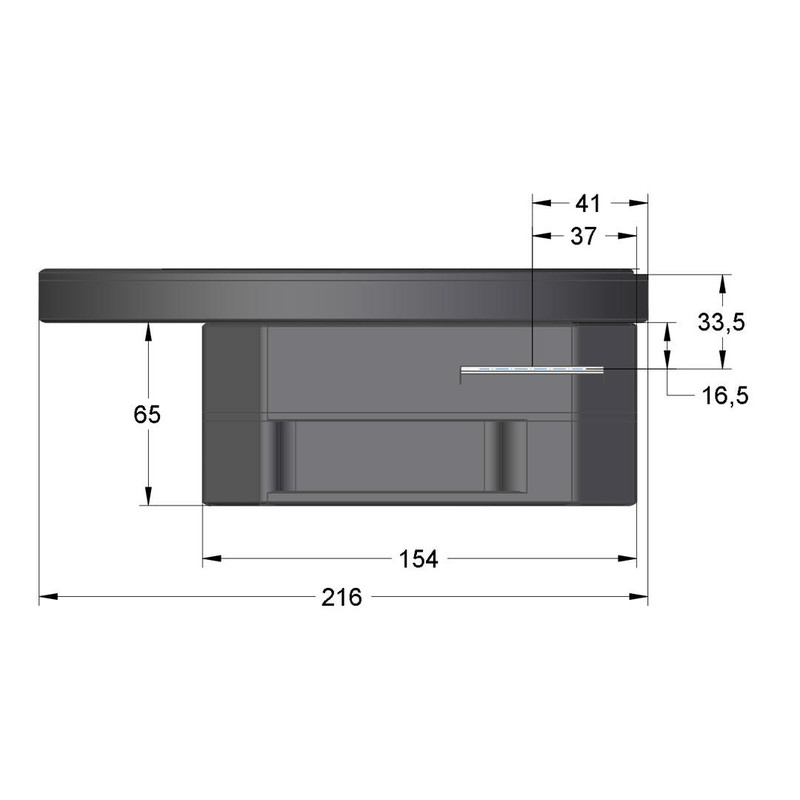

Dimensioni
