Prodotto n.: 58164

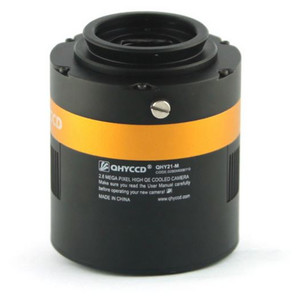

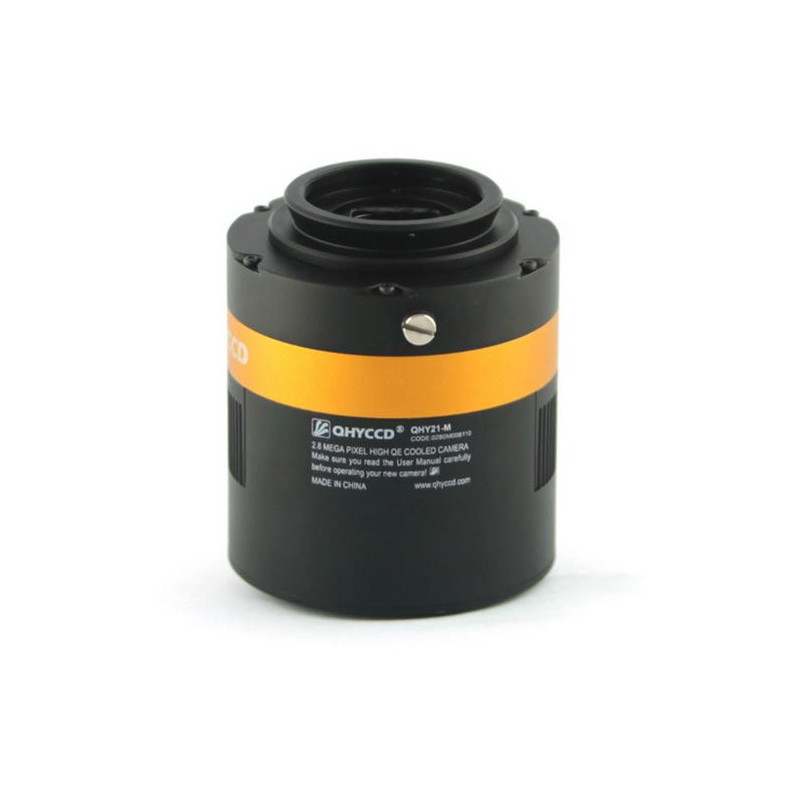

Fotocamera 22 Mono

$ 3.670,00 IVA incl., più spese di spedizione
troppo caro?
a lungo termine
Prodotto non più disponibile + Tempo di trasporto

Descrizione prodotto

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

The QHY21, QHY22 and QHY23 cameras use Sony's high-sensitivity EXview HAD CCD II sensors, ICX674, ICX694 and ICX814, respectively. These sensors have very high QE (close to 80%) and very low thermal noise. QHYCCD's dual stage TE cooling technology reduce the sensor temperature up to -45C below ambient for exceptionally low dark current. Compared to competing models, the QHY cameras achieve -10C to -15C extra cooling, resulting in very low noise and uniform background even during the hot summer months.

The read noise of these cameras is also a highlight of their performance. Typical read noise is around 5 electrons. Low read noise is very important when you want to capture faint deep sky objects or when using narrowband filters. Less read noise also means you can get a better image when you stack multiple frames. These Sony sensors all have relatively small pixels for high resolution. Using a suitable OTA results in outstanding detail as the sample images at the bottom of this page show.

The QHY21, 22 and 23 offer full moisture control, including an air-proof CCD chamber with silicon gel tube socket and a CCD chamber optical window heater. Mechanically, the QHY21, 22 and 23 are solidly built and include a USB/Power cable support. With this support, the USB and power cable will stay solidly affixed to the camera assuring a constant electrical contact.

Specifiche

Prestazioni


Tipo di sensore
chip CCD (Sony ExView II)
Megapixel
6,3
Raffreddamento
si
Camera a colori
no
Microlenti
si
Dimensione pixel
4,54
Risoluzione foto
2758 x 2208
Dimensioni del chip (mm)
14,6 x 12,8
Profondità di bit (Bit)
16
Differenza max. di raffreddamento sotto la temperatura ambiente
40
Tempo di esposizione max. (min)
160
Tempo min. d'esposizione
0,01
Antiblooming
si
Binning
1x1, 2x2, 4x4
Full Well Capacity
15.000 - 20.000
Rumore di lettura
5
Connessione (lato telescopio)
T2 (M42 x 0,75)
Distanza piano focale e flangia (mm)
20
diagonale chip (mm)
19,4

Equipaggiamento


Ruota portafiltri
no
Casse da trasporto
si

Generale


Diametro (mm)
77
Altezza (mm)
83
Peso (g)
470
Serie
Cooled CCD Mono

Campi di utilizzo


AllSky, Meteore
no
Autoguida
no
Luna e pianeti
si
Nebulose e Galassie
si
