Descrizione prodotto

The ALccd-QHY 5 is a very light and small special camera for autoguiding and planetary photography.

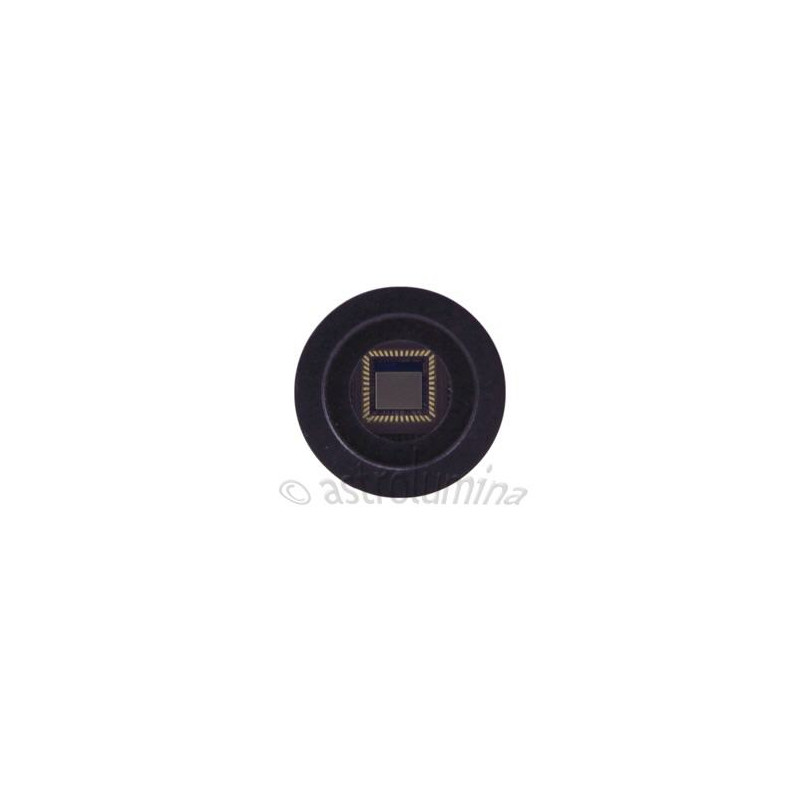

The camera is equipped with a powerful CMOS chip. This is characterized by extremely low noise with high photosensitivity . The resolution corresponds to the level of a comparable CCD chip. However, the CMOS has a lower power consumption and is also cheaper.

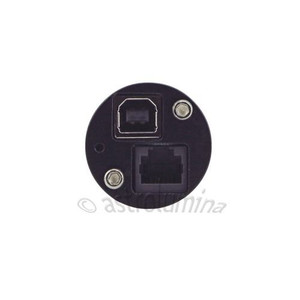

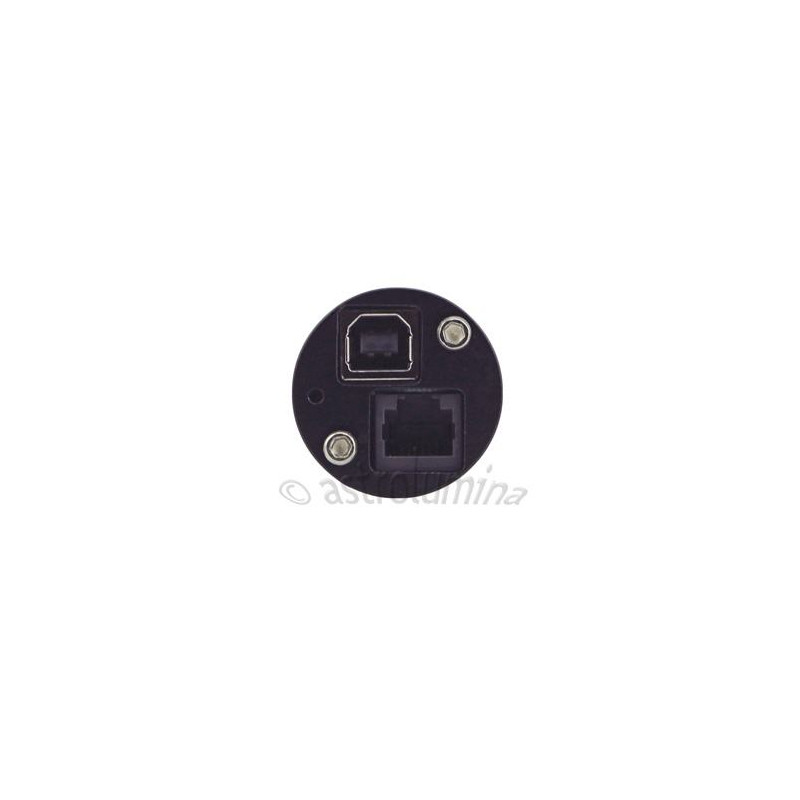

The camera does not require an external power supply. Power is supplied via the USB cable included in the delivery. A standard RJ-12 autoguider cable is also included. This works eg with the controls Koch FS2, Vixen StarBook, Sky-Watcher SynScan, Celestron NexStar, Losmandy Standard and Gemini (also older versions), Takahashi Temma, Astrophysics, Pulsar and many more.

For autoguiding we recommend the ASCOM-compatible software packages MSB AstroArt, PHD or MaxIm DL. For the recording operation the ALccd-QHY own software EZPlanetary.

The small pixel size also allows high-resolution images at a lower focal length without having to use a Barlow lens.

The camera has a 1.25 "socket, but since the camera body itself is sufficient for this size, it can be plugged directly into the focuser.

Specifiche

Prestazioni


Tipo di sensore
Chip CMOS (Micron MT9M034)
Megapixel
1,2
Risoluzione foto
1280 x 960
Dimensione pixel
3,75
Interfacce
USB 2.0
Profondità di bit (Bit)
8
Raffreddamento
no
Connessione (lato telescopio)
1,25"
Camera a colori
si
Tempo di esposizione max. (min)
1,65
Tempo min. d'esposizione
0,00002
Immagini per secondo
30
Sistemi operativi supportati
Windows XP (SP2), Vista, Windows 7, 8, 10
Dimensioni del chip (mm)
4,83 x 3,63
Distanza piano focale e flangia (mm)
10,4
Efficienza quantica
52% @300nm, 62% @500nm, 58% @656nm
diagonale chip (mm)
6

Particolarità

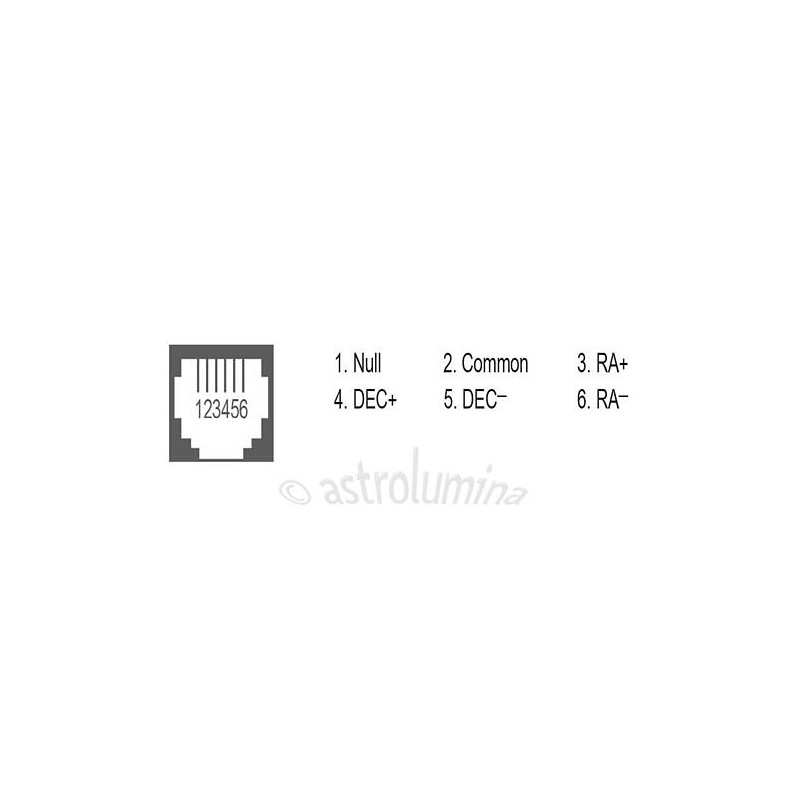

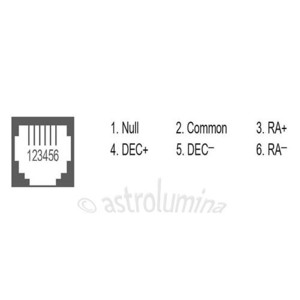

Interfaccia Autoguida
si (RJ-12)
Filetto per filtro
si

Equipaggiamento


Ruota portafiltri
no

Generale


Peso (g)
45
Diametro (mm)
31,7
Altezza (mm)
52
Materiale esterno
Alluminio
Serie
5-II

Campi di utilizzo


AllSky, Meteore
no
Autoguida
si
Luna e pianeti
si
Nebulose e Galassie
no

Accessori raccomandati

Filtro (2)
Filtro blocca banda

Omegon Filtro UV/IR CUTOFF 1.25''

$ 79,00*
Astrofotografia (1)
Sopporto per macchina fotografica

Omegon Supporto per CMOS camera

$ 49,90*
Spettrografia & Fotometria (1)
Spettroscopio

Paton Hawksley Spettroscopio Star Analyser 100

$ 182,00*

*Tutti i prezzi includono IVA e costi di spedizione.

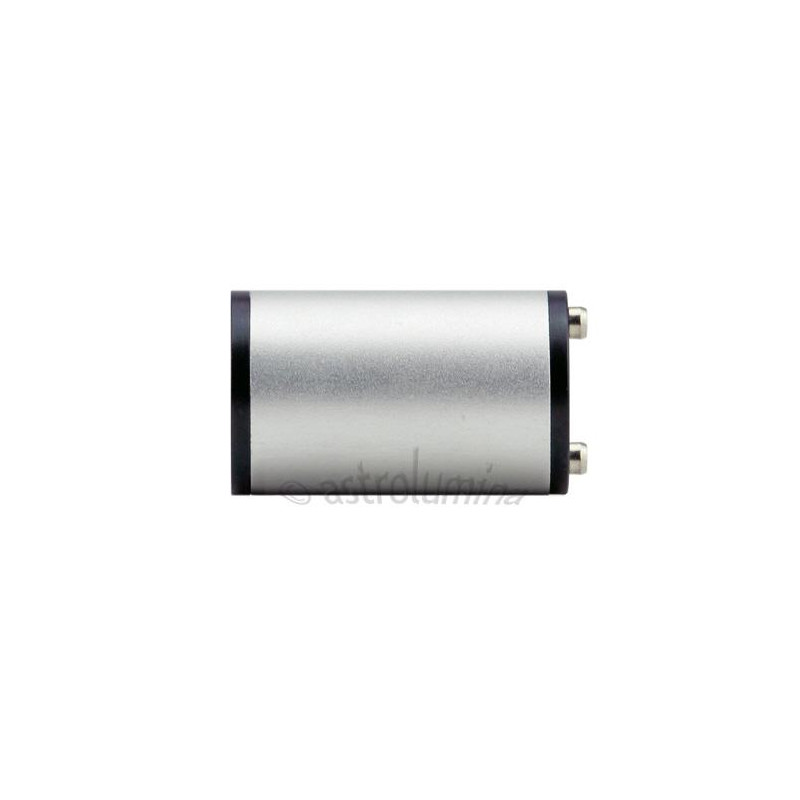

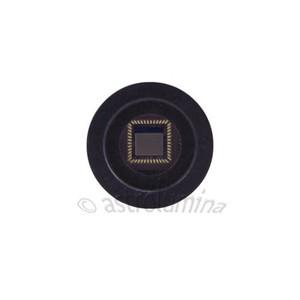

QHY Fotocamera 5L-IIc Color

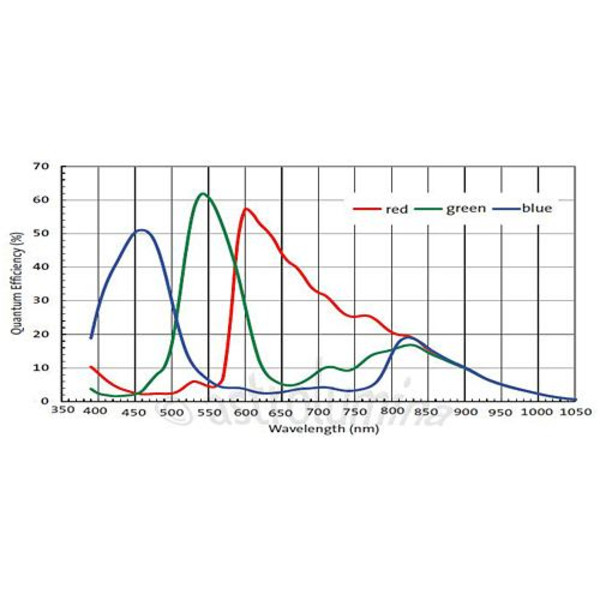

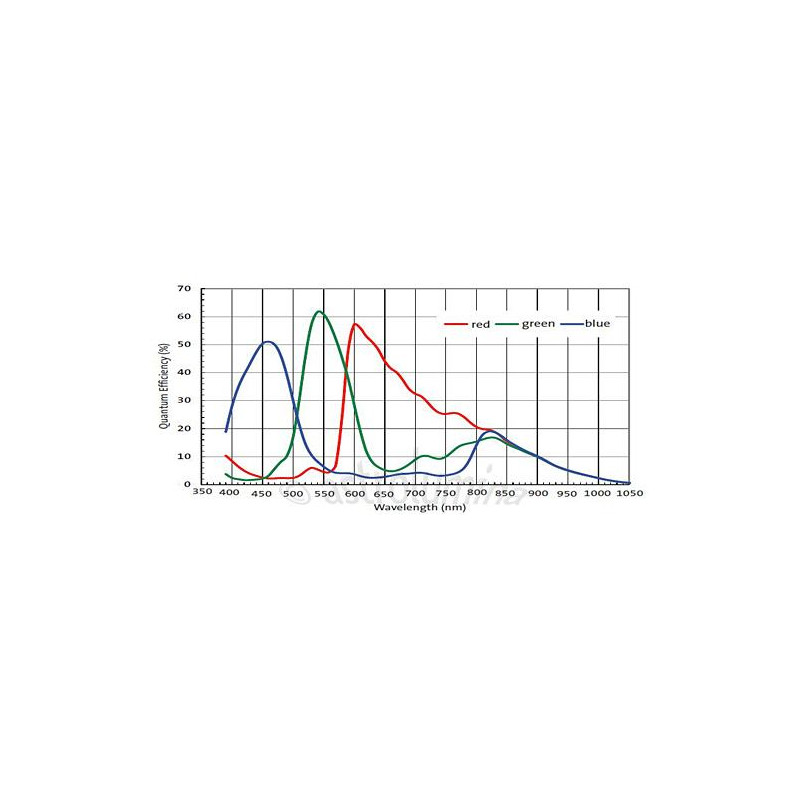

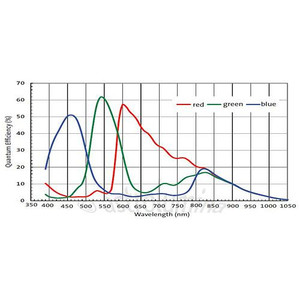

Efficienza quantica
QHY Fotocamera 5L-IIc Color

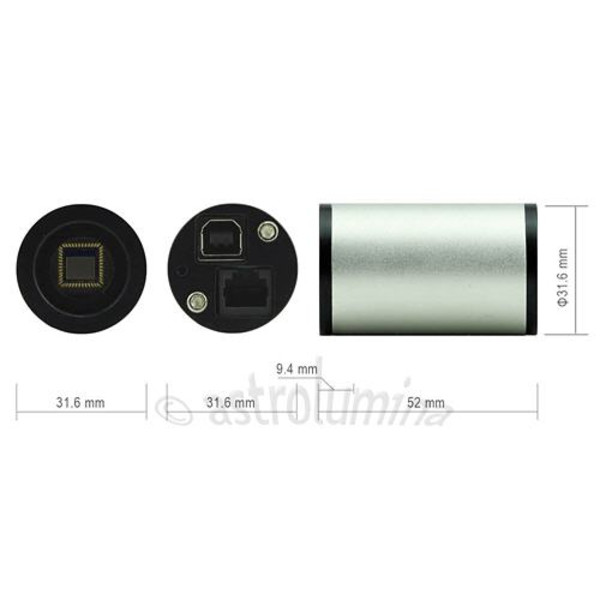

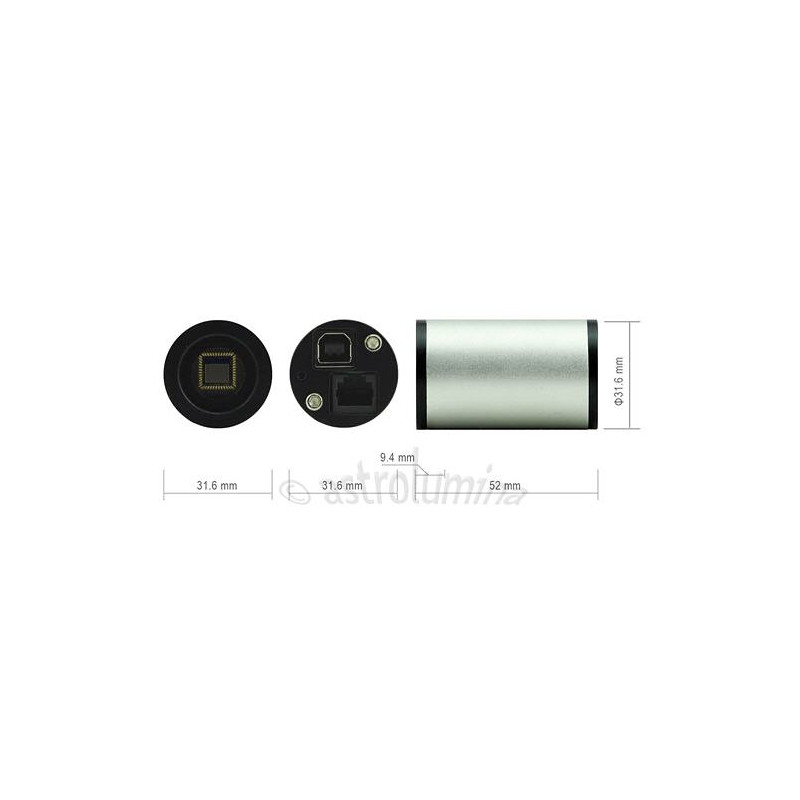

Dimensioni
