Astrofotografia > Fotocamere > Telecamere astronomiche > QHY > 5-II > QHY Fotocamera 5L-IIc Color
Prodotto n.: 58161

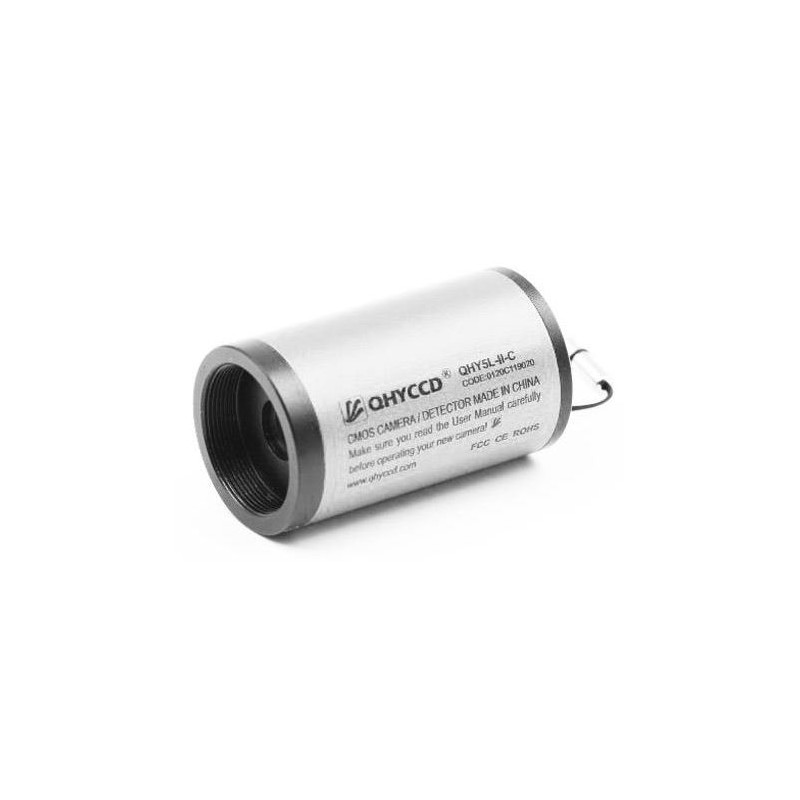

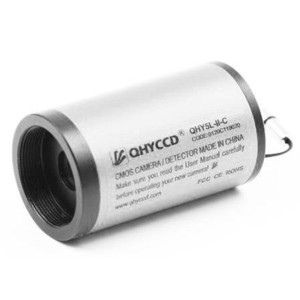

Fotocamera 5L-IIc Color

a lungo termine
Prodotto non più disponibile + Tempo di trasporto

Descrizione prodotto

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

QHY5-II Series - USB 2.0

Compact, High Speed, High Sensitivity Planetary / Guiding Cameras

After the success of the QHY5 Guiding Camera (2006-2012), QHYCCD released its next-generation QHY5-II Planetary/Guiding Cameras. The QHY5-II series improves the data-transfer speed up to the maximum USB2.0 data rate of 39MB/sec, 30FPS@1280x1024 or 1280x960 on modern computers and hundreds of frames per second in certain ROI modes.

QHY5-II series cameras fit in a standard 1.25-inch eyepiece holder and have an adjustable location ring for confocality with an eyepiece. They are ideal for use as low-weight autoguiders. QHY5-II series cameras come in very small but powerful packages! The improved thermal design allows the heat generated by the CMOS sensor to be transferred externally to the telescope's eyepiece tube.

QHY5-II series cameras are supplied with both Native WDM and Broadcast WDM drivers, which means you can use them as an ultra-high-performance web-cam for video capture or live video broadcasting. Show real-time astronomy images and events to your friends! QHY5-II series cameras can also be connected with the QHY InterCam stand-alone camera.

Specifiche

Prestazioni


Tipo di sensore
Chip CMOS (Micron MT9M034)
Megapixel
1,2
Risoluzione foto
1280 x 960
Dimensione pixel
3,75
Interfacce
USB 2.0
Profondità di bit (Bit)
8
Raffreddamento
no
Connessione (lato telescopio)
1,25"
Camera a colori
si
Tempo di esposizione max. (min)
1,65
Tempo min. d'esposizione
0,00002
Immagini per secondo
30
Sistemi operativi supportati
Windows XP (SP2), Vista, Windows 7, 8, 10
Dimensioni del chip (mm)
4,83 x 3,63
Distanza piano focale e flangia (mm)
10,4
Efficienza quantica
52% @300nm, 62% @500nm, 58% @656nm
diagonale chip (mm)
6

Particolarità


Interfaccia Autoguida
si (RJ-12)
Filetto per filtro
si

Equipaggiamento


Ruota portafiltri
no

Generale


Peso (g)
45
Diametro (mm)
31,7
Altezza (mm)
52
Materiale esterno
Alluminio
Serie
5-II

Campi di utilizzo


AllSky, Meteore
no
Autoguida
si
Luna e pianeti
si
Nebulose e Galassie
no
