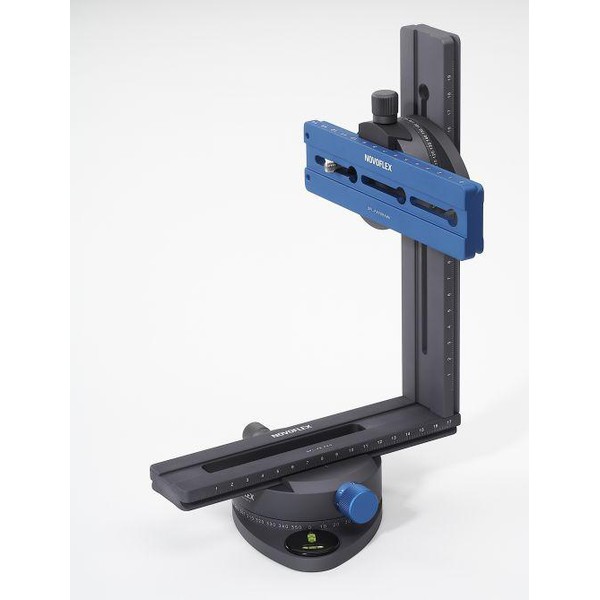

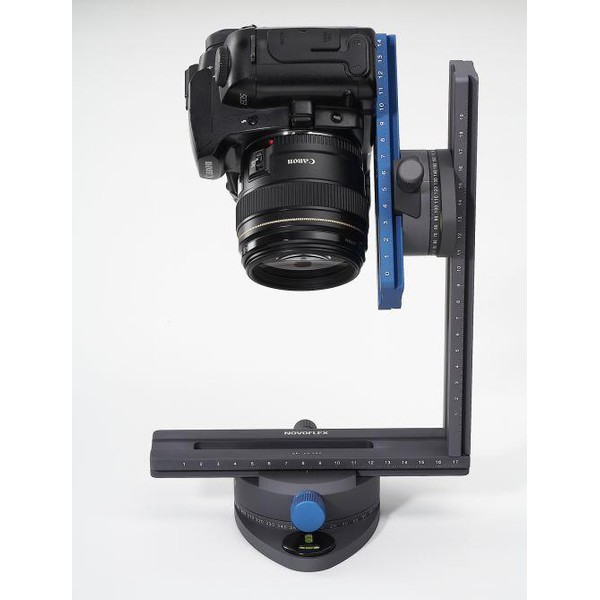

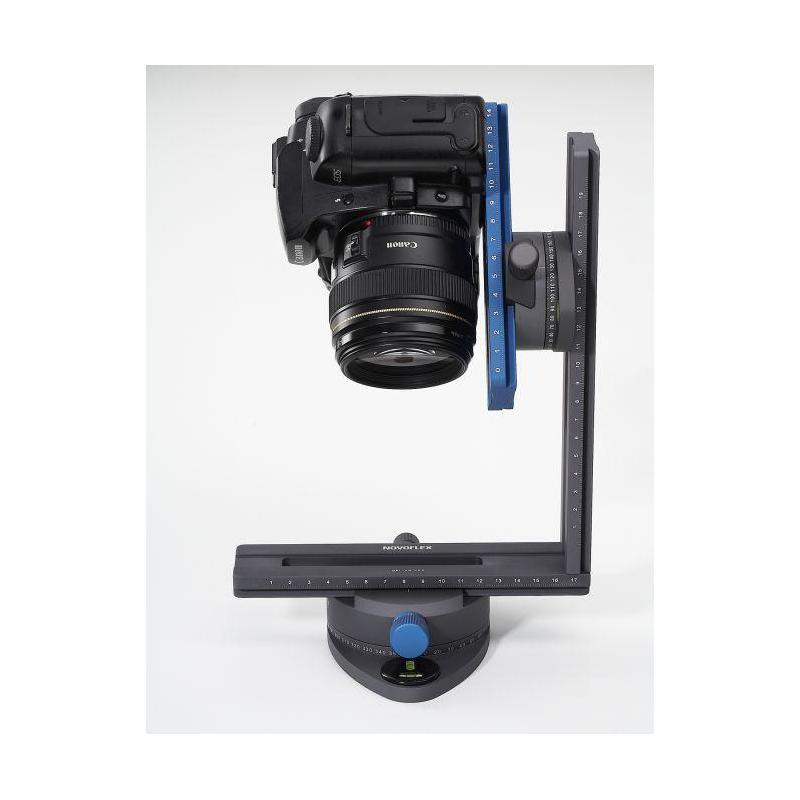

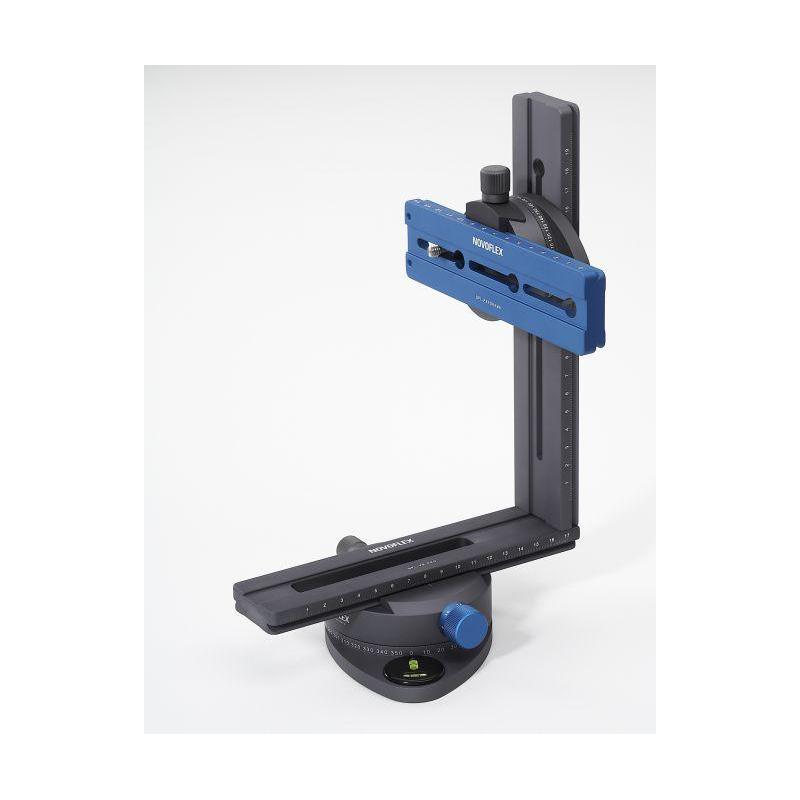

Thanks to the digital recording and software processing technology, perfect all-round views and 360 ° panoramas are becoming more and more the focus of the photographic interest. The new NOVOFLEX Panorama VR system perfectly meets the demands of professional photographers on an easy-to-use adjustment system to rotate a camera recording system in Nodalpunkt by 360 °. For a perfect 360 ° panorama shot with no perspective offset , it is essential to position the capture camera so that the axis of rotation passes through the nodal point of the capture system . The VR system PRO (VR-PRO) is the professional recording system for multi-line, cubic panoramas. With this adjustment system, the camera can be rotated horizontally and vertically around the nodal point . Engravings on the clamping plates make each camera-specific setting reproducible. A patented (pat. Pend.) Adjustment allows recordings in 8 different clicked angle steps:
36 detent positions (10 °), 24 detent positions (15 °)
18 detent positions (20 °), 15 detent positions (24 °)
12 detent positions (30 °), 10 detent positions (36 °)
8 detent positions (45 °) and stepless (360 °)
The horizontal rotation adjustment is facilitated by an opposite engraving of 2 x 180 °.
