Prodotto n.: 49427

Treppiede- testa panoramica VR-System Mini Sistema panoramico mono-riga

disponibile in 1-2 settimane + Tempo di trasporto

Descrizione prodotto

Per saperne di più sulla serie VR...

VR system Mini

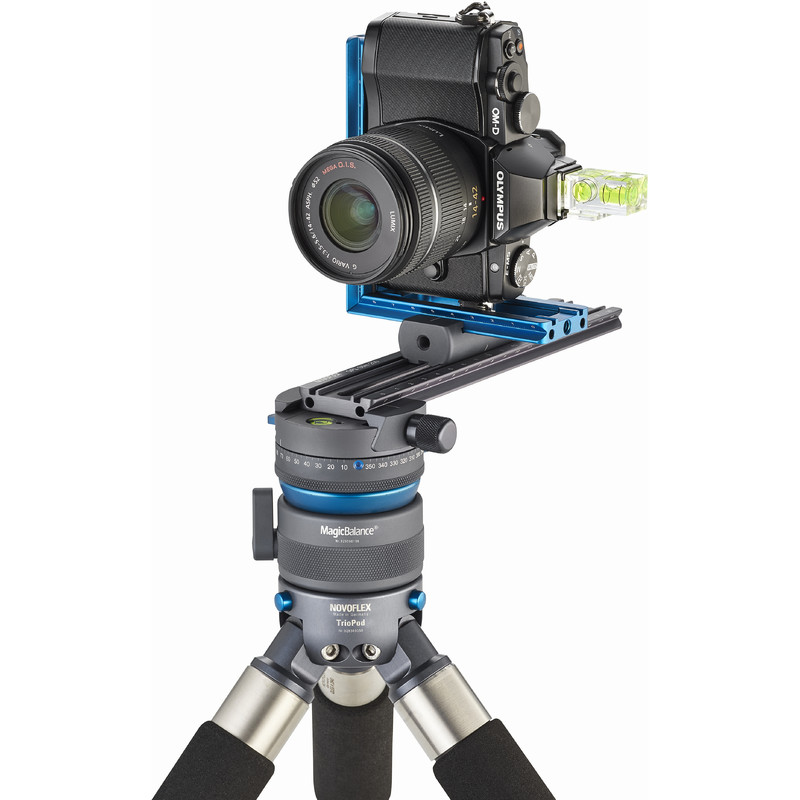

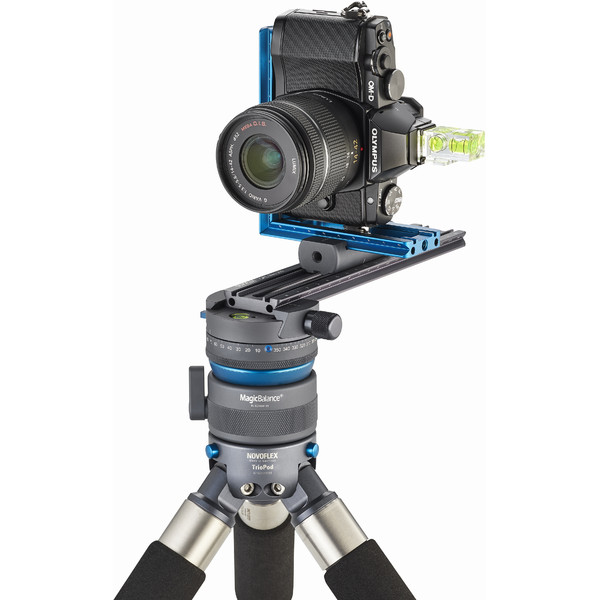

Thanks to the digital recording and software-processing technology are perfect all-round view and 360 ° panoramas increasingly the focus of the photographic world. The new NOVOFLEX Panorama VR-System Mini perfectly meets the demands of professional photographers working on an easy-to-use adjuster to rotate a camera recording system in the nodal point around 360 ° can. For a perfect 360 ° panorama shot without perspective offset, it is imperative to position the camera so that the axis of rotation passes through the nodal point of the recording system. Here the new NOVOFLEX Panorama-VR system provides the perfect setting and mini rotary elements in a set, which are required for such recordings. The system is suitable for portrait and landscape shots with an axial travel of maximum 185 mm. Also new are the adjustable notches 16, 30, 36 and 48 levels. By skipping individual click stops further partial steps can be achieved.

Designed for mirrorless system cameras as well suited for lighter DSLRs. For single-row cylindrical and surface panoramas. Depending on the camera and lens picture angle up to 360 ° horizontally and 120 ° vertically. Recommended lenses: Wide-angle lenses from 10 mm focal length via standard zooms up to slight telephoto lenses up to 135 mm focal length.

New to the VR system Mini
The system is particularly compact and light as it is based on the Slim profiles and a special Q = MOUNT Mini. The compact rotary plate has adjustable detents 16 (22.5 ° degree steps), 30 (12 degrees steps), 36 (10 degrees steps) and 48 steps (7.5 ° degree steps. Further steps may be single by skipping Rest steps are achieved. For example, every third step of the 30 screening results in a 10 grid so 36 degrees steps.

• Simple, straightforward, very compact and lightweight system.
• The items can also be used for other tasks

For whom?
The Panorama VR system Mini is suitable for all photographers who prefer the classic, single-row cylindrical and flat panoramas and are searching for a possible lightweight and compact system.

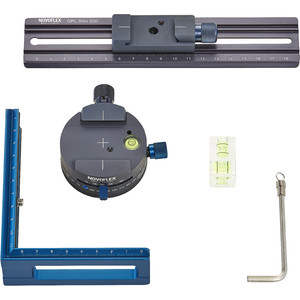

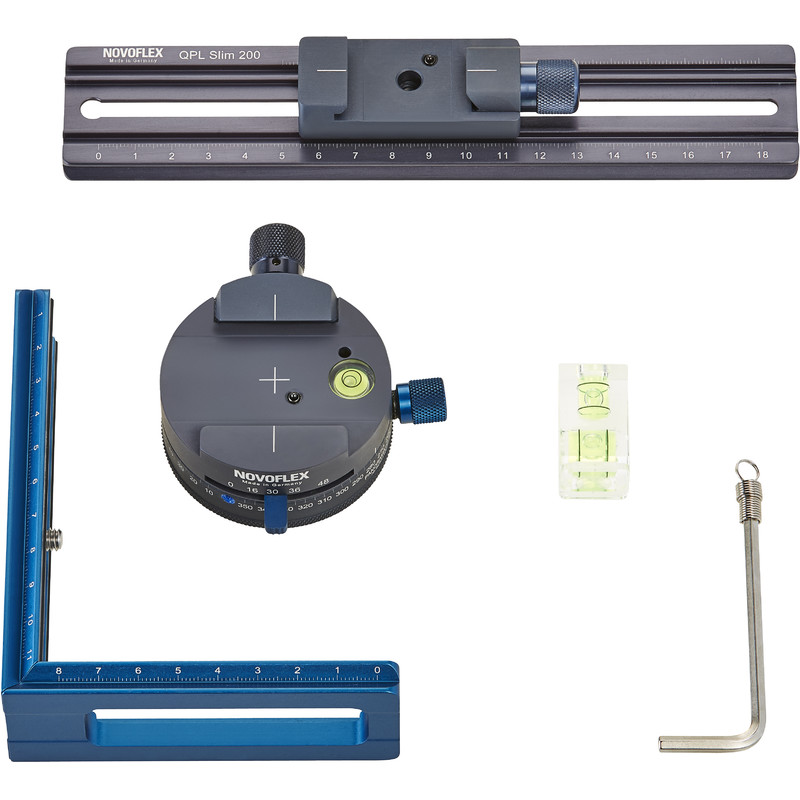

Scope of supply:

  • Panorama Panorama plate = Q 48,
  • QPL Slim 200 with mounted Q = MOUNT Mini
  • Angle QPL-SLIM Vertical,
  • Spirit level for flash shoe,
  • Operating instructions

Technical specifications:

  • Suitable lenses: Focal lengths from 10 mm to 135 mm
  • Adjustment in optical. Axis: 185 mm
  • Recording: single line
  • Panorama Type: Surface and cylindrical projection
  • Recommended software: PanoramaStudio 2, PTGui
  • Weight: 525 g
  • Tripod / Camera connection: 1/4 "or 3/8" / 1/4 "



Testa panoramica
Filetto fotografico
Filetto sulla testa del cavalletto
1/4 e 3/8
Raggio d'inclinazione (°)
Raggio d'oscillazione (°)
Quantità di livelle


Morsetto girevole
Scala panoramica


Peso (kg)
Novoflex Treppiede- testa panoramica VR-System Mini Sistema panoramico mono-riga
Novoflex Treppiede- testa panoramica VR-System Mini Sistema panoramico mono-riga
