Accessori Telescopi > Accessori per Collimatore > Varie > Howie Glatter > Howie Glatter Holographic Attachment for Laser Collimator - Square Grid
Prodotto n.: 25253

Holographic Attachment for Laser Collimator - Square Grid

Rosso
Il prodotto è disponibile a partire dal 01.02.2023 + Tempo di trasporto

Nessuna consegna possibile prima di Natale.
Mostra alternative


Descrizione prodotto

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

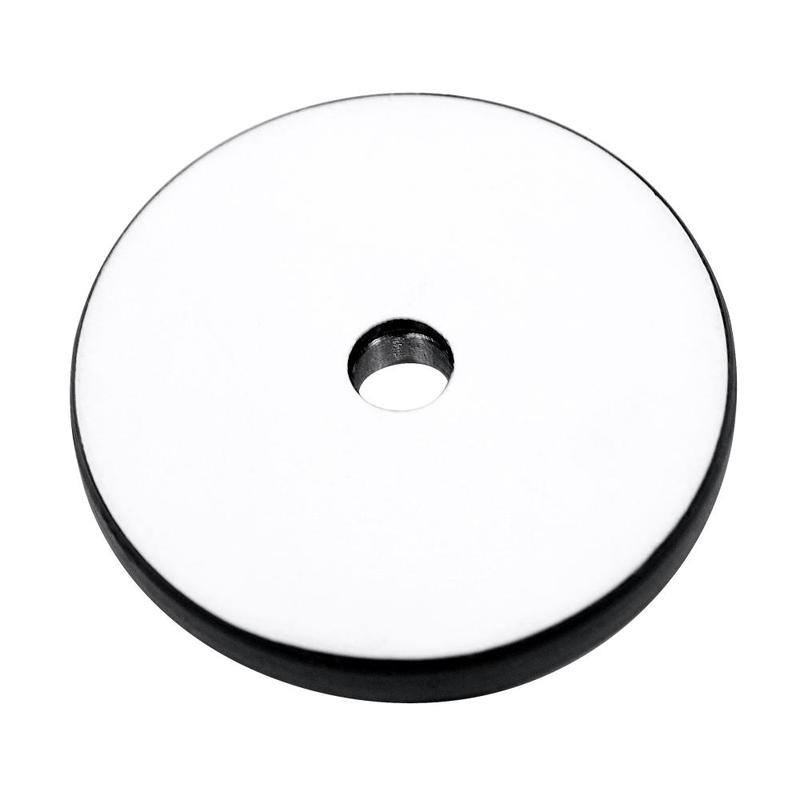

Optional holographic attachments screw into the laser aperture and have a white screen front surface. They contain an optical element that diffracts most of the laser light into a diverging symmetrical pattern around the central beam. The projected pattern is useful for centering optical elements by making it symmetrical with the edge of the optic.

Three different patterns are available:

  • A 10 x 10 line square grid pattern is supplied as standard unless otherwise requested because it is the widest pattern. It spreads 21 degrees which allows centering of optics as fast as f/ 2.7. This pattern is recommended for general use because it can be used with the fastest telescopes likely to be encountered.
  • A nine-concentric circle pattern is available that spans 10 degrees and will reach to the edge of f/ 5.7 optics. This pattern is recommended for scopes around this focal ratio or slower. Because the laser light is spread over a smaller area it is brighter than the square grid pattern, and this makes it particularly useful with Cassegrain scopes, where the pattern impact is sometimes scrutinized on the mirror surfaces. The projected pattern is seen only by light that is scattered from dust, dirt, or optical roughness, so a brighter pattern is better, especially if the mirrors are very clean.
  • A cross-hair and circle “scope” pattern is available that spans 10 degrees. It has utility for non-Barlowed , conventional Newtonian primary collimation, where the primary is adjusted to return the reflected central laser beam back into the laser aperture of the collimator. The cross-hair intersection makes it easier to see when the return beam is centered on the collimator face.

Commento del nostro esperto:

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

This is the new version ("NV") with coarse thread. The attachment fits all Howie Glatter/Starlight Instruments laser collimators, which also have a new thread ("NV" in the item number). If you own an older version of the laser (before 2020), please contact us prior to your order!

(Jan Ströher)

Specifiche

Generale


Tipo
Accessori per Collimatore
Howie Glatter Holographic Attachment for Laser Collimator - Square Grid
Howie Glatter Holographic Attachment for Laser Collimator - Square Grid
