Osservazione della natura > Visori notturni & camere termiche > Instrumenti > Camere termiche > Armasight > Command > Armasight Camera termica Command 336, 5-20x75 (60 Hz)
Prodotto n.: 54557

Camera termica Command 336, 5-20x75 (60 Hz)

$ 5.900,00 IVA incl., più spese di spedizione
troppo caro?
a lungo termine
Prodotto non più disponibile + Tempo di trasporto

Descrizione prodotto

Note: The authorized export countries for this product are: Argentina, Australia, Austria, Belgium, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, South Korea, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

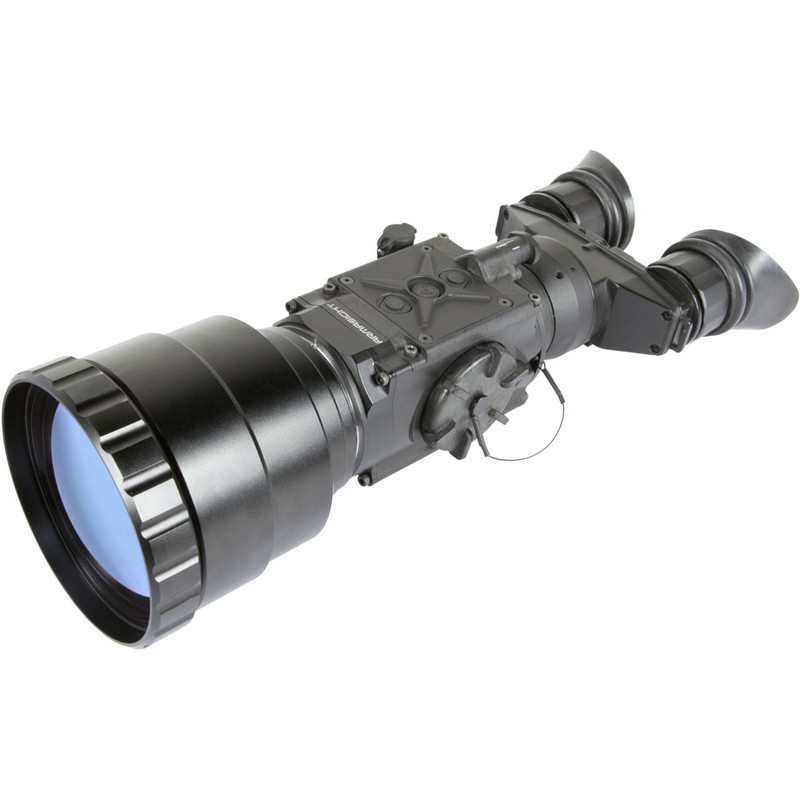

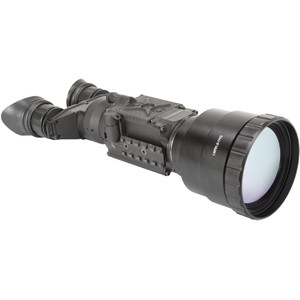

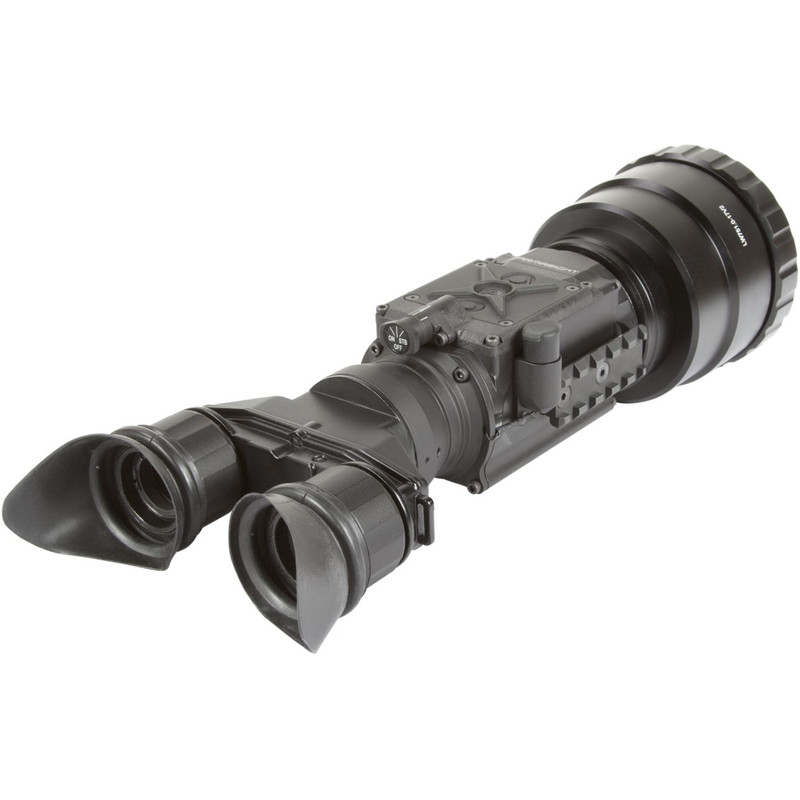

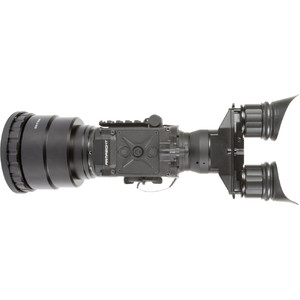

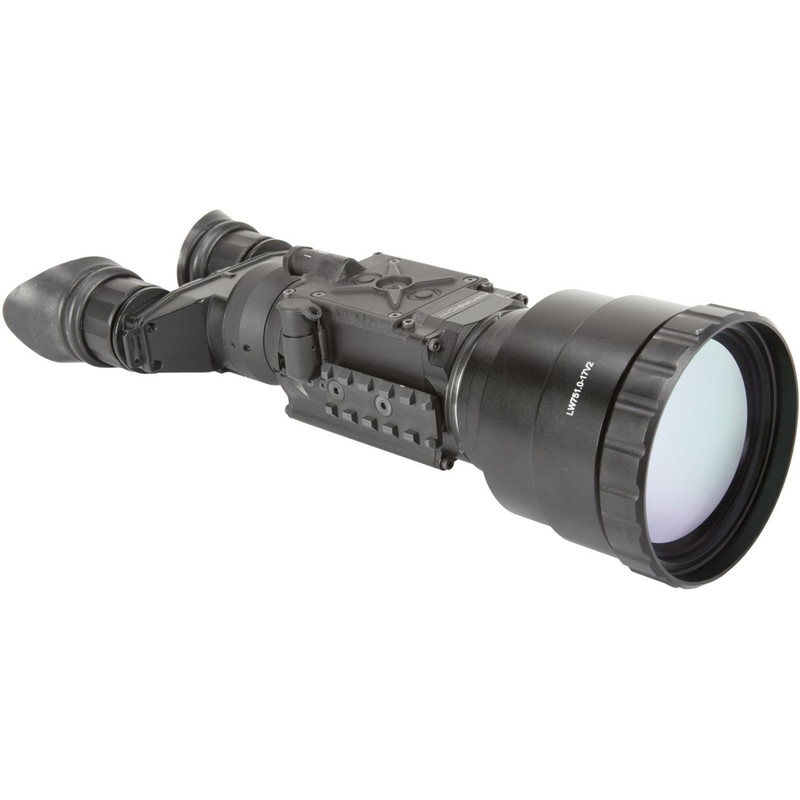

Armasight Command
The Command is the most technologically-advanced Thermal Imaging bi-ocular for the sporting, law enforcement, and military markets. The Command is based on the advanced FLIR VOx microbolometer core that is suitable for a variety of uses and missions.

The Command is a solid state, uncooled, long-wave infrared, magnified, dedicated handheld thermal imager intended for day and nighttime missions. The 24/7 mission capability is only one of the strengths of the Command bi-ocular. The thermal imaging technology also allows you to detect targets by cutting through snow, dust, smoke, fog, haze, and other atmospheric obscurants. Unlike the use of laser targeting or near-infrared illumination to augment night vision equipment, the Command thermal imager is extremely difficult to detect with other devices, as it emits no visible light or RF energy.

Special User-Adjustable Imaging Tools

  • Active Contrast Enhancement (ACE) – a digital “Contrast” correction that allows for a smart scene optimization based on dynamic adjustments where a variety of contrast levels occur depending on relative scene temperature.
  • Second Generation Digital Detail Enhancement (DDE) – a “Sharpness” correction that is digitally enhances the picture to present clearer imagery, significantly improves edge sharpening and further reduces image noise.
  • Smart Scene Optimization (SSO) – a fine-tuning computational correction that significantly improves an overall visual acuity for targets that have thermal signatures similar to a surrounding background.
  • Automatic Gain Control (AGC) – a “Gain” correction that used to automatically adjust the gain to an appropriate range, the weaker the image signal, the stronger the gain.
  • User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC). There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC) also known as flat-field correction (FFC. During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Command models allow for user to manually trigger or interrupt scheduled UCMNUC/FFC function.
  • Silent Shutterless NUC ™ (SSN) – In addition to user controlled manual NUC/FFC all Command models employ a digital supplemental non-mechanical flat-field correction that allows to extend the periods between mechanical shutter events and to further reduce image noise. SSN is always ON enhancement.

FEATURES

  • High-performance thermal imaging camera
  • Lightweight and robust design
  • Easy to operate
  • Manually adjustable eyepiece and objective lens
  • Real-time display
  • Special user-adjustable imaging tools
  • Current operational state information display
  • Wireless remote control
  • Analog video input and output
  • Powered by two standard CR123A batteries
  • Power input capability
  • Digital video recorder (optional)
  • Serviceability under severe conditions
  • Filled with dry nitrogen to prevent internal fogging

Specification Command 336 5-20x75 (60 Hz)

  • Magnification 5,3 (NTSC) / 6,3 (PAL)
  • Objective Lens Type Germanium
  • Objective Focal Length 50mm
  • Objective F-number 1:1
  • Type of Focal Plane Array FLIR Tau 2
  • Refresh Rate 60 Hz
  • Pixel Array Format 336×256
  • Pixel Size 17 µm
  • Display Type AMOLED SVGA 060 800x600
  • Video Recording Optional Digital Video Recorder with SD card slot
  • Operating Temperature -40°C to +50°C (-40°F to +122°F)

Specifiche

Prestazioni


Tecnica di fabbricazione
Binoculare (un obiettivo)
Tecnologia
Camera termica
Ingrandimento
5 (+ 4x Digital Zoom)
Obiettivo
75mm F:1
Risoluzione sensore
336x256
Rappresentazione immagine
diverse versioni
Frequenza rotazione immagine (Hz)
60
Compensazione diottrica
+/- 5
Durata della batteria (h)
4

Particolarità


Illuminatore ad infrarossi
-
Immagine digitale
si
Uscita video
si
Porta testa
-
Protezione sovraesposizione
si
Sistema giorno-notte
si
Anti-spruzzo
si
Filetto per connessione al cavalletto
si
Lenti ausiliarie disponibili
no

Campo visivo


Campo visivo reale (°)
4,3
Campo visivo a 100m (m)
7,5
Distanza minima di messa a fuoco (m)
5

Campi di utilizzo


Protezione ed osservazione
si
Caccia e osservazione della natura
si
Pesca e navigazione
si
Speleologia & Campeggio
si

Generale


Colore
nero
Lunghezza (mm)
272
Larghezza (mm)
102
Altezza (mm)
89
Peso (g)
1080
Serie
Command

Varie


Tipo di batteria
CR123 (4 pezzi)

Accessori raccomandati

Cura & Pulizia > Liquidi e kit per pulizia (3)

Omegon Kit per la pulizia delle lenti 7 in 1

$ 19,90*
Cura & Pulizia > Altro (2)

Omegon Panno in microfibra 20cm x 20cm

$ 4,90*
Varie (1)

Varta CR123 batteria al litio

$ 8,90*

*Tutti i prezzi includono IVA e costi di spedizione.

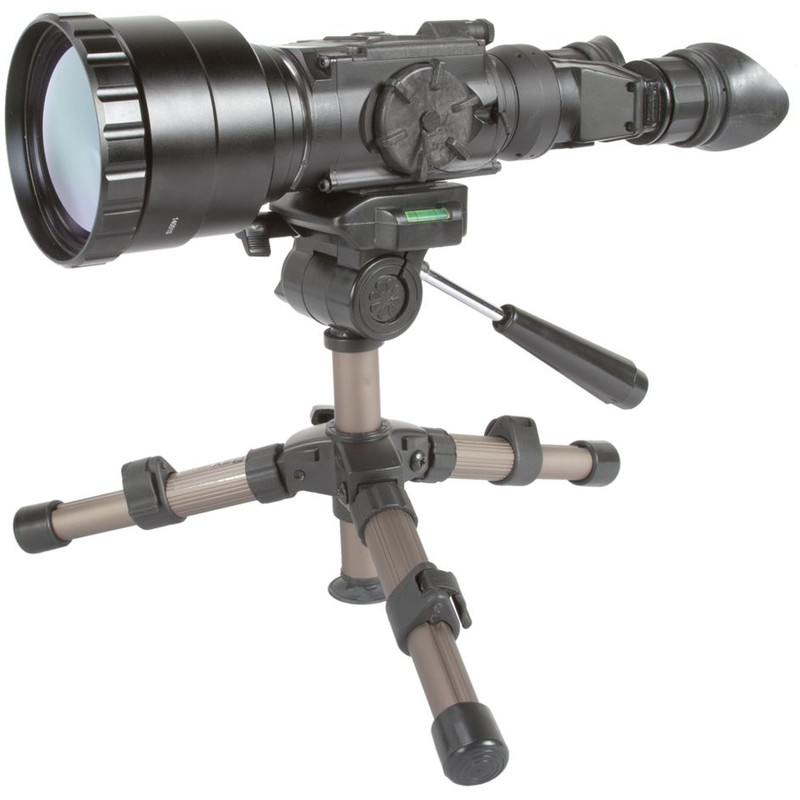

Armasight Camera termica Command 336, 5-20x75 (60 Hz)

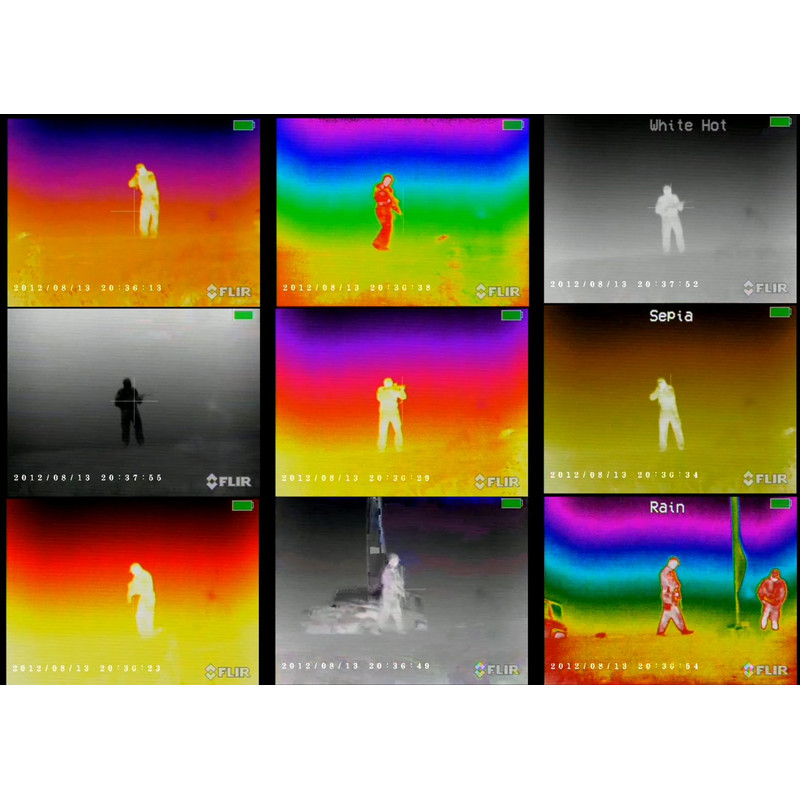

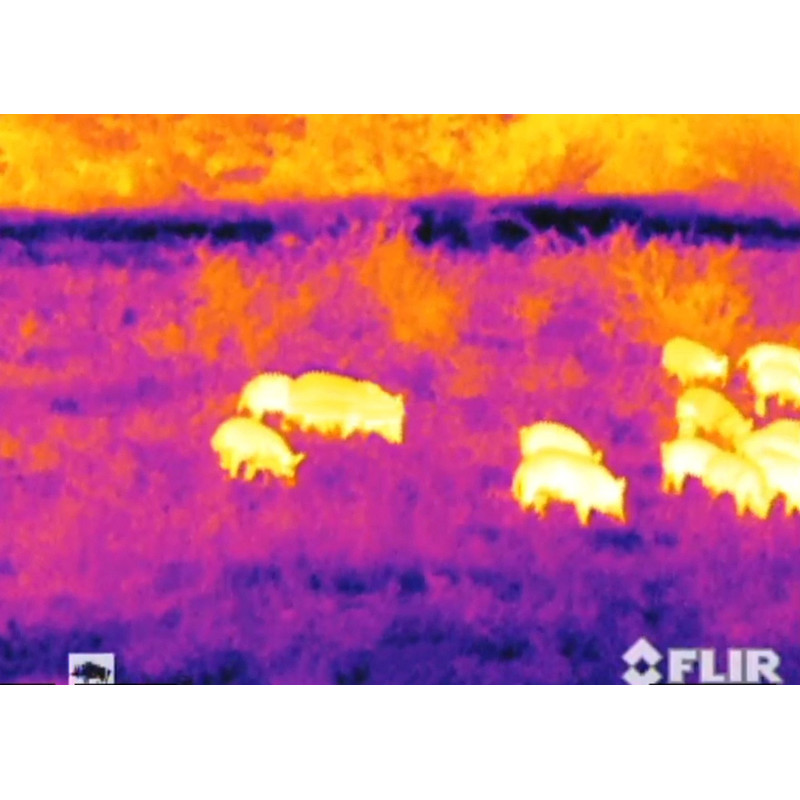

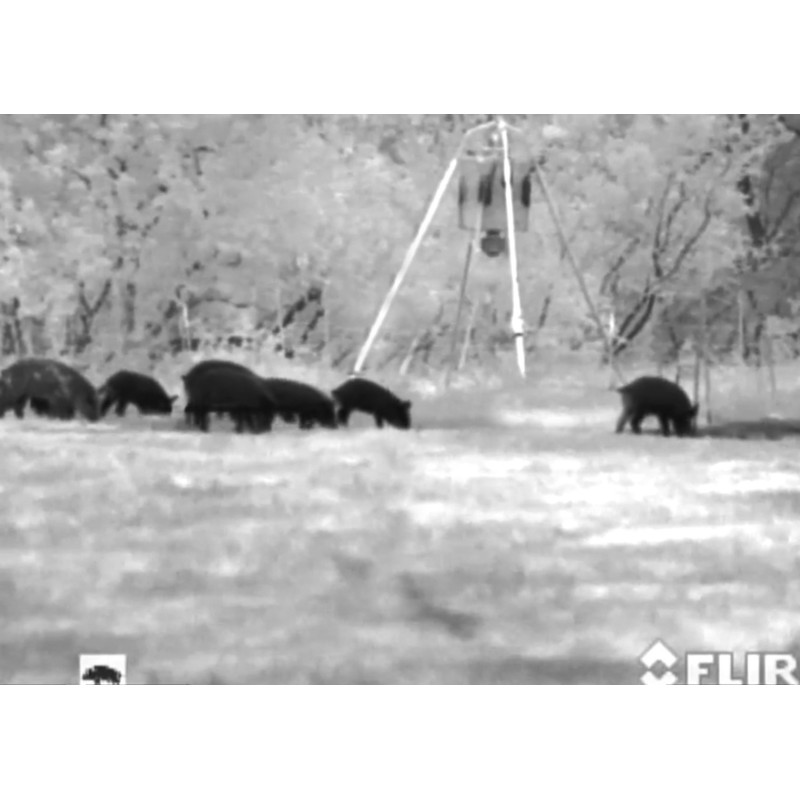

Esempio d'uso
