Microscopi > Accessori Microscopia > Fotocamere > Fotocamere > Optika > C-B > Optika Fotocamera C-B5, color, CMOS, 5.1 MP, 1/2.5", USB 2.0
Prodotto n.: 57546

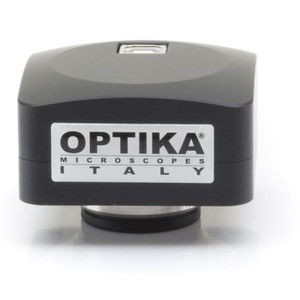

Fotocamera C-B5, color, CMOS, 5.1 MP, 1/2.5", USB 2.0

a lungo termine
spedibile in 6-10 settimane + Tempo di trasporto

Descrizione prodotto

Per saperne di più sulla serie C-B...

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

USB Cameras – B Series

Cameras have become indispensable nowadays and OPTIKA is offering a line of remarkable solutions for digital imaging.

OPTIKA B Series represents a cost-effective solution equipped with the latest technology sensors with more vivid colors and great contrast for stunning images. This series features Aptina CMOS sensor with excellent color reproduction, significantly high frame rates and several resolutions available to match any customer need. Thanks to the convenience and simplicity, being extremely intuitive to install and operate, the OPTIKA B Series is recommended for educational and routinary microscopes, also as eyepiece cameras (no need for additional adapters/rings in case of monocular and binocular microscopes).All the main operating systems like Windows, IOS, Linux are supported. SUPERB RESULTS AND VIVID DETAILS FROM STANDARD TO HIGH RESOLUTION. OPTIKA B cameras are provided with remarkable and cost-effective sensors to capture vivid colors and generate relevant contrast for stunning images and delivering incredibly accurate colors just as you see them. Convenience and simplicity make sure these cameras are appreciated for teaching and routine applications in several fields. USER-FRIENLDY USB CAMERAS FOR GENERAL PURPOSES. Connect the camera to a PC via USB and install the most suitable OPTIKA software for your needs. The incredible capabilities of OPTIKA software suites ensure intituitive operations for live view and image/video capturing for basic users and give the chance to obtain more advanced functions (including HDR, EDF, stitching & tiling, customized report generator etc.) for experienced users. All the main operating systems like Windows, Mac OS, Linux are supported.

C-B5

Cost-effective CMOS camera for routine applications. Recommended for educational microscopes and routinary microscopes, also as eyepiece camera. Aptina CMOS sensor with excellent color reproduction for routine applications. 5.1 MP resolution. Eyepiece and C-mount connection for each application required. Excellent color reproduction. Can be connected to monocular, binocular or trinocular microscopes. Including 3 softwares (OPTIKA Vision Lite, OPTIKA Lite View and OPTIKA Pro View) for Windows. Lite versions available for Mac OS and Linux. Equipped with lens for optimized field of view, 30 and 30.5 mm eyepiece adapter rings and calibration slide for establishing measurement baselines.

CAMERA SPECIFICATION

Digital camera resolution: 5.1 MP (2592 x 1944)

Signal output: USB 2.0

Sensor Size 1/2.5”

Sensor technology: CMOS

Sensor type Aptina: CMOS

Image format: 4/3

Pixel size: 2.2 x 2.2 µm

Frame rate full resolution: 7 fps (2592 x 1944)

Frame rate other resolutions: 27 fps (1280x 960); 90fps (640x 480)

Sensitivity: 0.53 V/lux-second

Signal / noise ratio: 40.5 dB

Dynamic range: 66.5 dB

ADC conversion: 8 Bit

Color Depth: 1 Bit; 4 Bit; 8 Bit; 24 Bit

Exposure Time: 0.294 msec - 2 sec

Binning: 1x1; 2x2; 4x4

IR filter: 380-650 nm (IR-cut filter)

Camera power: PC USB

C-mount: YES

ACCESSORIES

Optical adapters 0.5x (for 23 mm eyepiece tube)

Adapters for Binocular & Monocular microscopes: 30 mm & 30.5 mm diameter

Calibration Slide: YES

Always Included: 1.8 m USB cable

ENVIRONMENT SPECIFICATION

Working temperature: -10 up to +50°C

Storage temperature: -20 up to +60°C

Relative Humidity: 30% to 80%

Storage Humidity: 10% to 60%

Dimensions: 58 x 58 x 36.4 mm

Weight: 0.18 Kg

SYSTEM REQUIREMENTS

Operating System: Win XP / Win Vista / Win 7 / Win 8 / Win 10 (32 o 64 bit) OSx (Mac OSx) starting from 10.7.5 Linux

PC Requirements CPU: Equal to Intel Core2 2.8GHz or higher RAM: 2 GB or more USB port: USB 2.0, at least two ports

Specifiche

Prestazioni


Dimensioni del chip (mm)
1/2.5"
Megapixel
5.1
Sensibilità alla luce (Lux)
0.53V/lux-sec
Formato immagine
4/3
Risoluzione foto
2592 x 1944
Memoria interna (Megabyte)
-
Interfaccia
C-Mount

Fotocamera


Megapixel
5.1
raffreddamento
no
Camera a colori
si
Dimensione pixel
2,2
Trasmissione di immagini
USB 2.0
sensore
CMOS
Dimensioni del chip (″)
1/2.5
Risoluzione foto
2592x1944
frame rate (fps)
7
Innesto camera
Rolling Shutter
Tempo min. d'esposizione (ms)
0.294
Tempo di esposizione max. (ms)
2000
Sensibilità (mV/s)
0.53 V/lux sec
adattatore necessario
0.5x
Software
LiteView
Sistemi operativi supportati
Win 7/8/10 Mac OS Linux

Generale


Lunghezza (mm)
58
Larghezza (mm)
58
Altezza (mm)
36.4
Peso (g)
180
Serie
C-B

Campi di utilizzo


Basso ingrandimento
si
Ingrandimento elevato (100x)
si
Live
no

Varie


Codice prodotto del fornitore
C-B5
Optika Fotocamera C-B5, color, CMOS, 5.1 MP, 1/2.5", USB 2.0
Optika Fotocamera C-B5, color, CMOS, 5.1 MP, 1/2.5", USB 2.0
Optika Fotocamera C-B5, color, CMOS, 5.1 MP, 1/2.5", USB 2.0
Optika Fotocamera C-B5, color, CMOS, 5.1 MP, 1/2.5", USB 2.0
