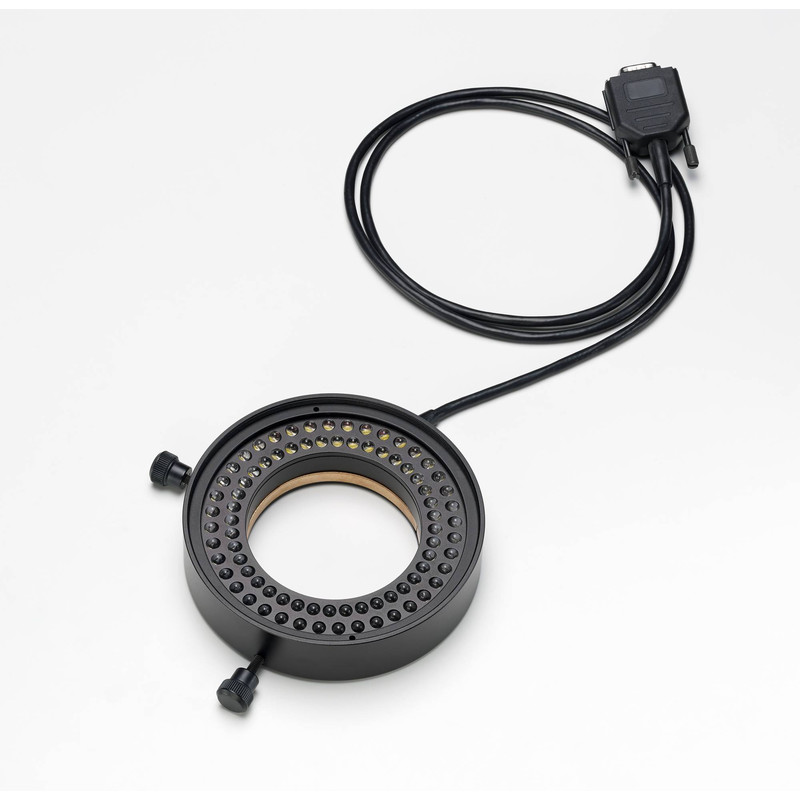

SCHOTT Illuminatore anulare LED per campo chiaro S 80-55 Ø 66

Prodotto n.: 49579
Produttore: SCHOTT

$ 870,00

IVA incl.
SCHOTT Illuminatore anulare LED per campo chiaro S 80-55 Ø 66
SCHOTT Illuminatore anulare LED per campo chiaro S 80-55 Ø 66
SCHOTT Illuminatore anulare LED per campo chiaro S 80-55 Ø 66
SCHOTT Illuminatore anulare LED per campo chiaro S 80-55 Ø 66
SCHOTT Illuminatore anulare LED per campo chiaro S 80-55 Ø 66
SCHOTT Illuminatore anulare LED per campo chiaro S 80-55 Ø 66
SCHOTT Illuminatore anulare LED per campo chiaro S 80-55 Ø 66
Descrizione prodotto
Specifiche
Recensioni clienti
Downloads

Descrizione prodotto:

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

VisiLED Brightfield Ringlights - for incident lighting

Brightfield ringlights for high intensity incident light illumination with 80 or 40 white LEDs

  • Ringlights S80-55 and S40-55 with minimum working distance of 55 mm for objectives up to magnification 1
  • Ringlight S80-25 with working distances of 25 - 50 mm for higher magnifying objectives

Illumination system specially developed for stereo microscopy and macroscopy applications

  • 4 Lightheads for brightfield illumination techniques
  • 3 Brightfield ringlights for high and low brightness requirements
  • 1 Transmitted light stage for brightfield applications

Easily adaptable to microscope objectives by means of thumb screw and clamp ring

  • Homogenous illumination.
  • Best white quality: typically 5,600 K.
  • Long operating life: typically 50,000
  • By actively controlling the LED’s temperature.

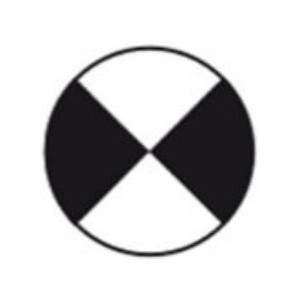

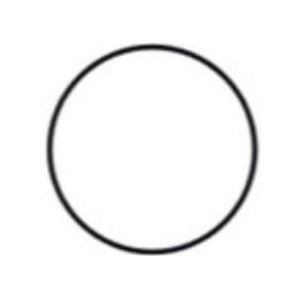

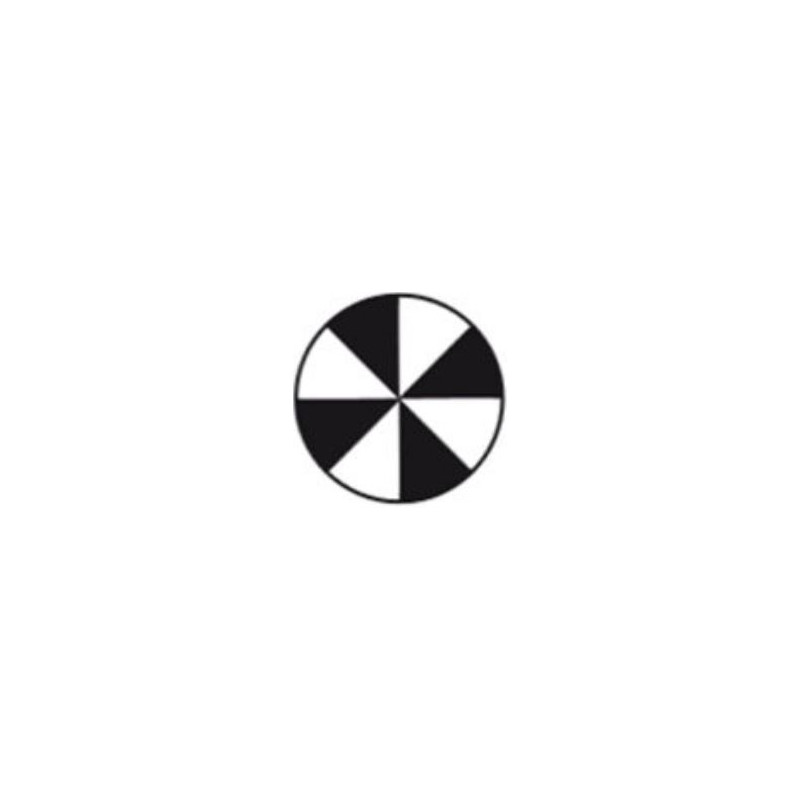

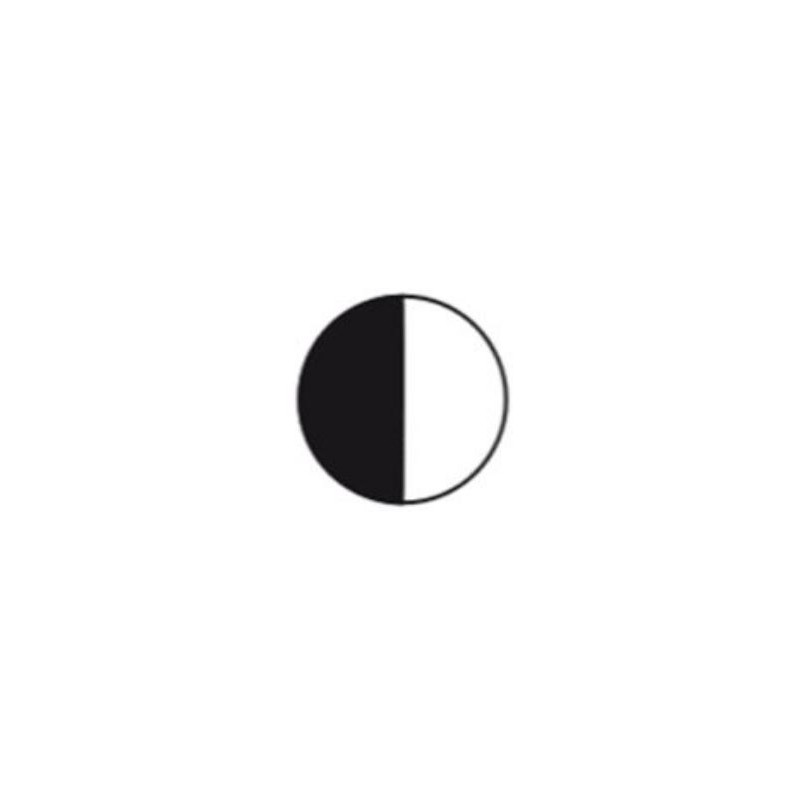

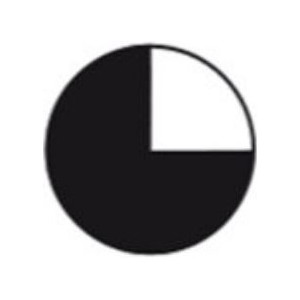

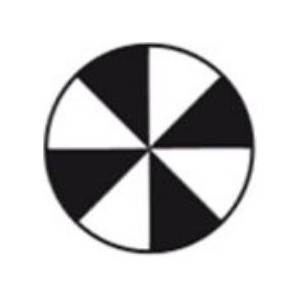

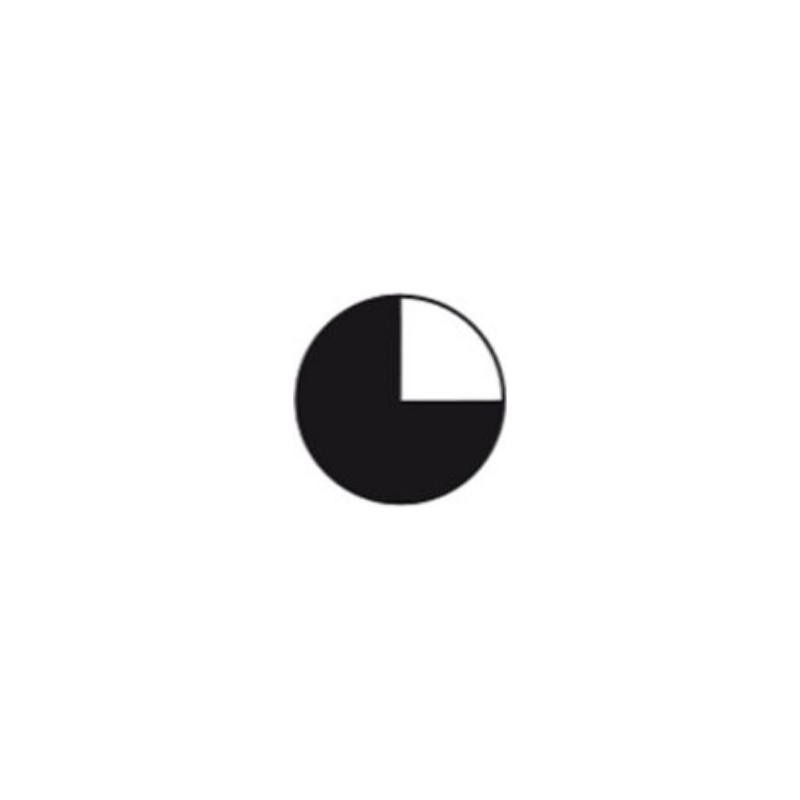

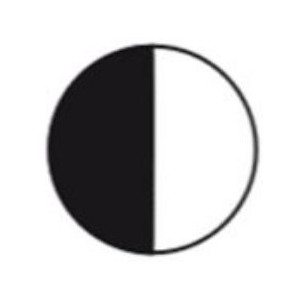

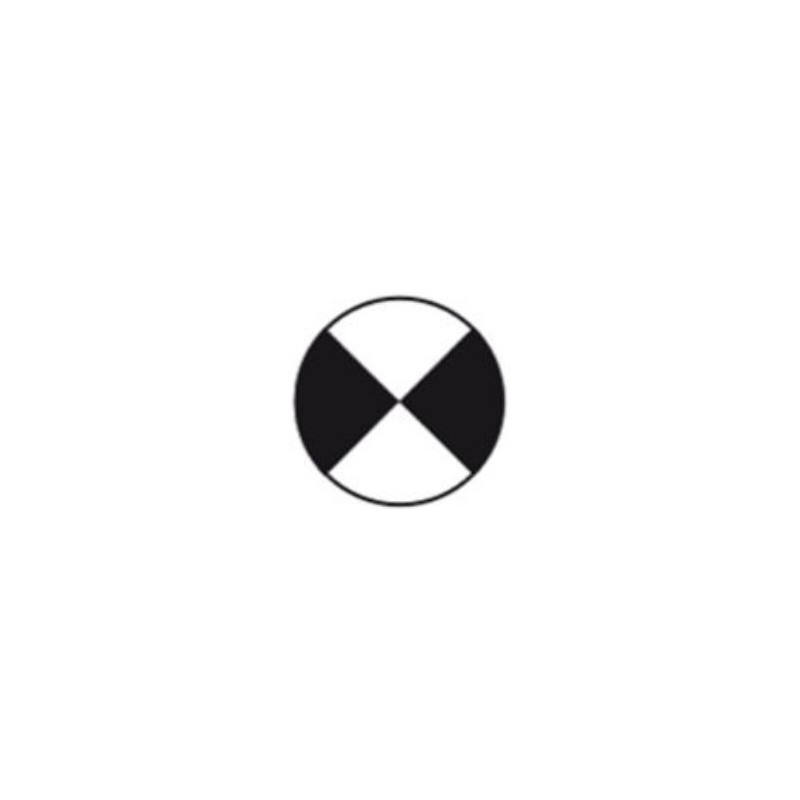

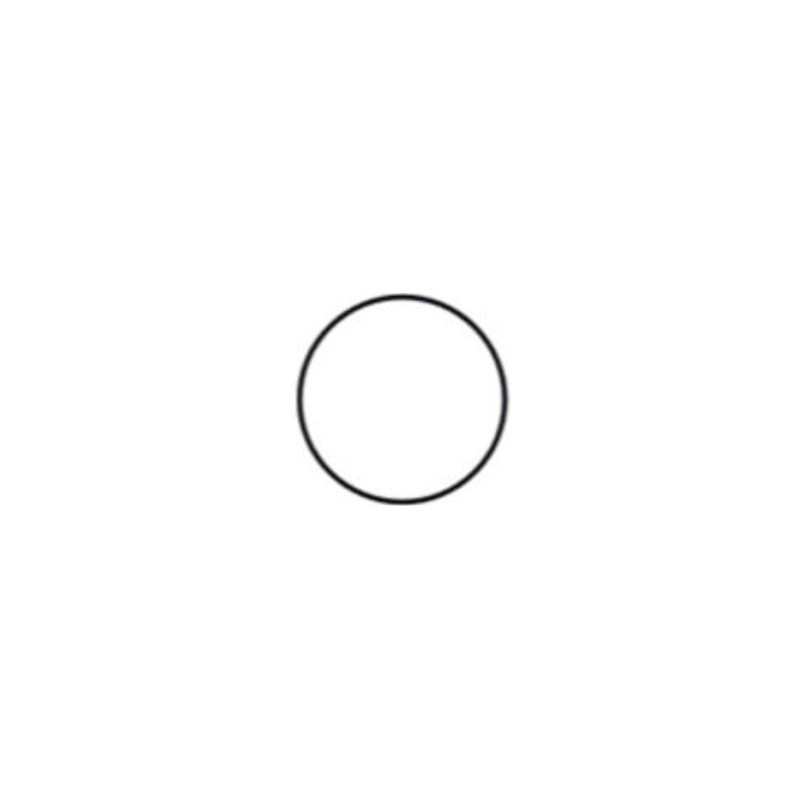

  • Segments controllable in different preset modes for optimum contrasting

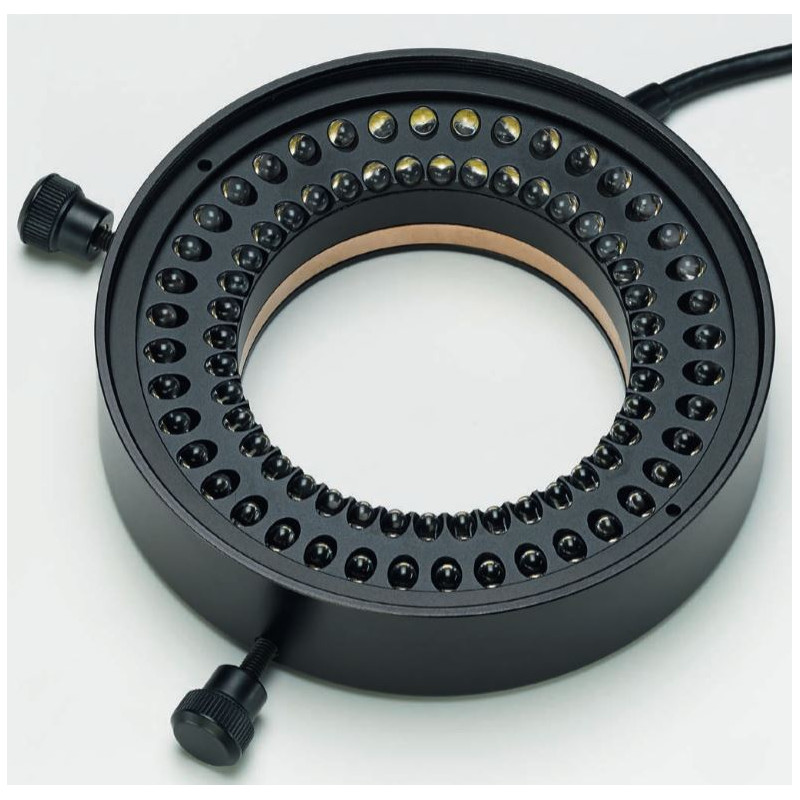

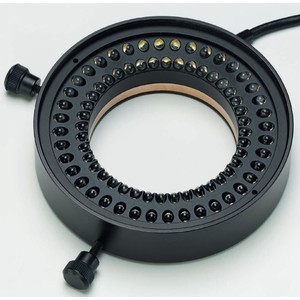

Ringlight S80-55

  • Illumination Method: Brightfield
  • Diodes: 80 high brightness LEDs in 8 segments
  • Color Temperature: 5600K
  • Working Distance: 50 mm ... 135 mm
  • Max. Illuminance: 200 kLx (at 75 mm WD)
  • Dimensions: outerØ: 114 mm/ innerØ: 66 mm/ height: 25 mm

15.09.2019
