Microscopi > Accessori Microscopia > Iluminazione > Lampade ad anello > StarLight Opto-Electronics > RL12 > StarLight Opto-Electronics RL12-18s WW, warm-weiß (3.000 K), Ø 66mm

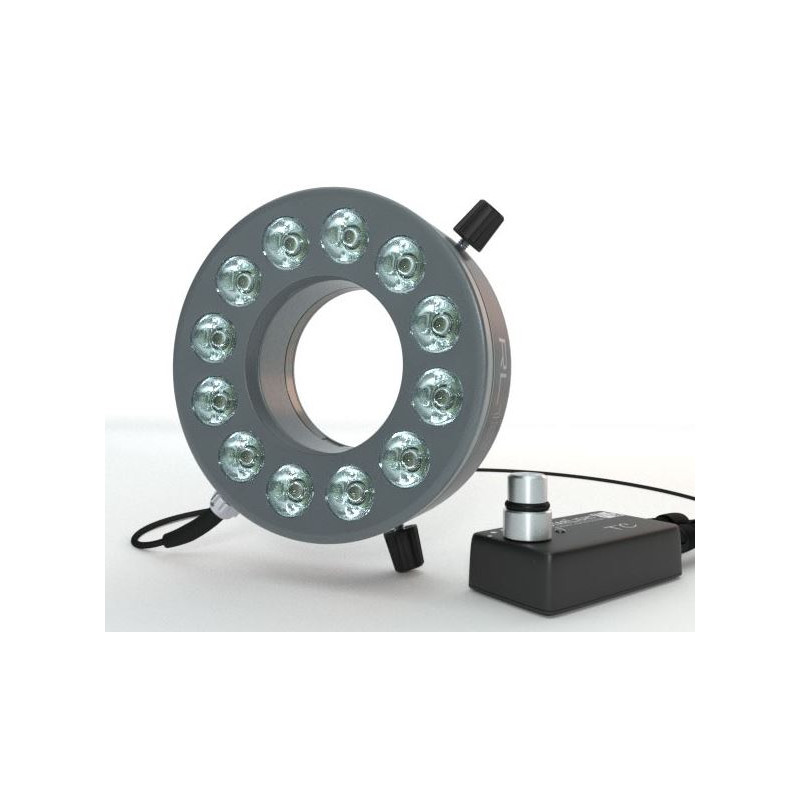

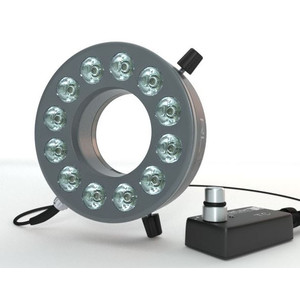

RL12-18s WW, warm-weiß (3.000 K), Ø 66mm

disponibile in 1-2 settimane + Tempo di trasporto
Questo prodotto è disponibile nelle seguenti varianti:
$ 1.070,00
ambra (590nm) $ 1.070,00
bianco (5.600 K) $ 970,00
bianco (3.500 K) $ 970,00
bianco puro (6500K) $ 970,00
blu (470nm) $ 1.070,00
verde (540nm) $ 1.070,00

Descrizione prodotto

LED ring lights

A round thing in many sizes

Mini LED ring lights RL1 and RL2

The RL1 and RL2 miniature LED ring lights are ideal for use where space is limited, due to their compact size. Nevertheless, these ring lights provide a lot of light, eg for camera applications or as lighting for production machines. Both series are available with two different nominal working distances, which is achieved by different LED installation angles.

LED ring lights RL4 and RL5

The series RL4 and RL5 are primarily designed as reflected-light illumination for microscopy. The working range of the ring lights is selected so that the focus is at the typical distance of the objective and the stage from standard microscopes. Both series are available with two inner diameters, so that the right model is available for all common microscope types.

Power LED ring light RL12

The RL12 power LED ring light offers enormous brightness thanks to the twelve 3W LEDs and is suitable for applications with increased light requirements, eg in conjunction with high-speed cameras. Thanks to five different variants with different geometries, the perfect lighting is available for both small and large working distances.

High Power LED ring light RL12

The extremely bright and variably deployable High Power LED ring light RL12 was developed for a variety of applications in microscopy, production and industrial image processing. The 12 high-quality power LEDs of the ring light, which are housed in a compact metal housing, have a long life and are characterized by a strong light intensity. The LED ring light RL12 is available in many variants, allowing each user to find the right lighting in terms of brightness, working distance, light color and optics. The modular design allows a factory exchange of the LED modules. With the help of extensive accessories, the ring light can also be adapted to individual needs and requirements. For example, there is a polarizing filter and various reducing rings to adjust the inside diameter, which allows the LED power ring light to be attached to many devices such as cameras or microscopes.

  • Energy-saving and environmentally friendly LED technology
  • Very well-balanced brightness setting from 0% to 100% via practical table controller with memory function for saving the last brightness setting
  • Robust metal housing with high protection class
  • Noiseless and vibration-free thanks to passive cooling without fan


  • High Power LED ring light RL12
  • LED table controller TC-1000
  • operation manual

The connecting cable is permanently installed.

LED ring light RL12-18s

High-performance high-performance ring light for working distances from 90 mm to 180 mm

  • photometric values ​​depending on the selected model
  • Number of LEDs 12 × Power LED (Spot)
  • Color temperature 6,000 K
  • maximum power consumption 15 W
  • Working distance 90 - 180 mm
  • Optimal working distance approx. 140 mm
  • Dimensions control (LxWxH) 78 × 38 × 21 mm
  • Thread M67 × 0.75
  • Length of cable approx. 0.8 m
  • Outside Ø ring light 130 mm
  • Height ring light 42 mm
  • Inner diameter ring light 66 mm
  • Clamping Ø max. 66 mm
  • LED life 50,000 h (manufacturer)
  • Material anodized aluminum
  • Color titanium and black
  • Weight light control approx. 50 g
  • Weight ring light 720 g
  • Input power supply (EU | UK | US) 100 - 240 V AC, 50/60 Hz
  • Output power supply 24 V DC, 1000 mA
  • Cable length power supply approx. 1.4 m
  • Dimensions with packaging 320 mm × 205 mm × 95 mm
  • Weight with packaging 1140 g
  • Pure-white light color
  • Max. Power consumption 15 W
  • Inside diameter 66 mm
  • Outer diameter 130 mm
  • Clamping diameter max. 66 mm
  • Internal thread M67 × 0.75
  • Weight control 50 g
  • Dimensions Packaging (L × W × H) 320 × 205 × 95 mm

Light color: warm white (3000 K)



Tipo di pila
LED 12 (3W)


Distanza di lavoro (mm)
90 - 180 mm
Diametro dell'obiettivo (mm)


Diametro (mm)
bianco (3.500 K)
StarLight Opto-Electronics RL12-18s WW, warm-weiß (3.000 K), Ø 66mm
StarLight Opto-Electronics RL12-18s WW, warm-weiß (3.000 K), Ø 66mm
StarLight Opto-Electronics RL12-18s WW, warm-weiß (3.000 K), Ø 66mm
