Microscopi > Microscopi > Microscopi diritti > Microscopi a campo chiaro > Motic > BA-310 > Motic Microscopio BA310, alogeno, trinoculare
Prodotto n.: 45001

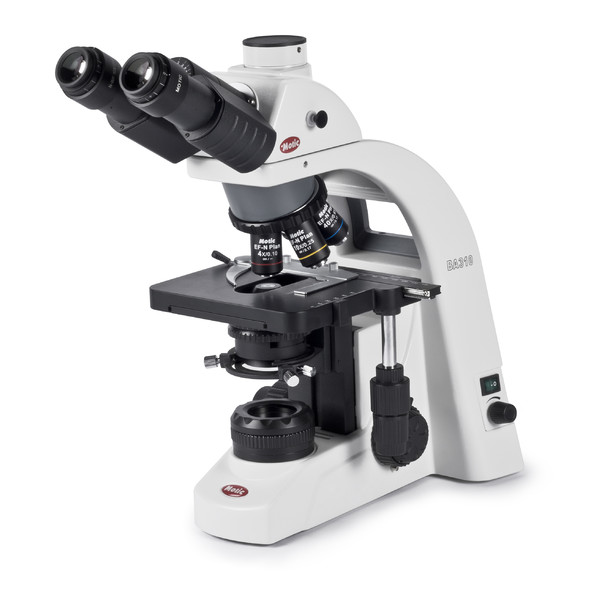

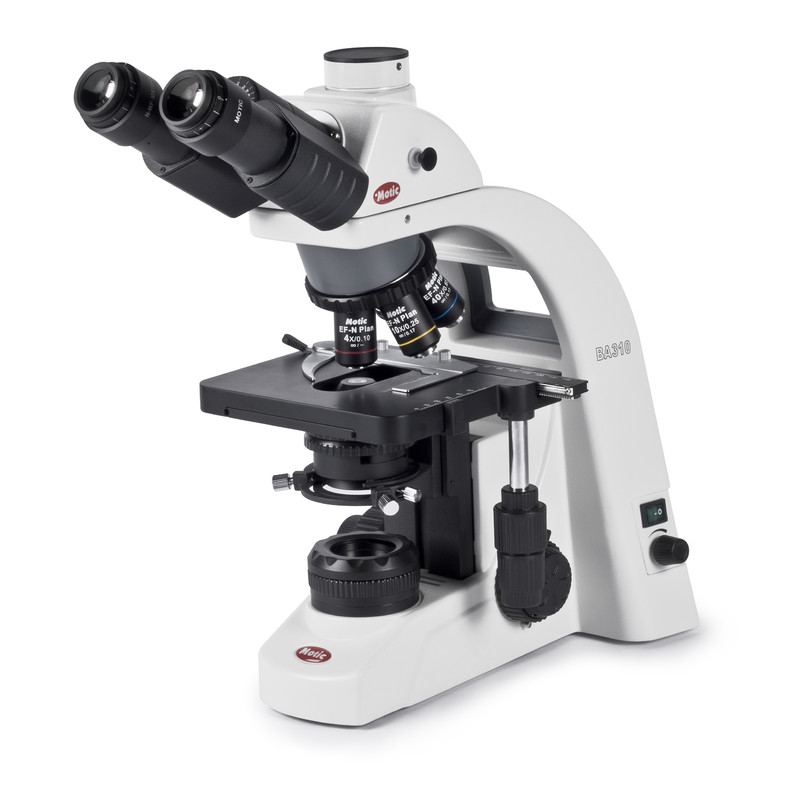

Microscopio BA310, alogeno, trinoculare

$ 1.910,00 IVA incl. più spese di spedizione
troppo caro?
a lungo termine
Prodotto non più disponibile + Tempo di trasporto

Descrizione prodotto

Per saperne di più sulla serie BA-310...

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

Microscope BA310

The BA310 from Motic is designed specifically for the rigors of daily routine work in the demanding applications of Universities, Clinics, Laboratories, and any other life science or medical application requiring quality optical performance. Using Motic's Color Corrected Infinity Optics (CCIS®) with newly designed EF-N Plan Achromats, this model's full Koehler configuration provides maximum illumination quality for even the most demanding samples. Also, the BA310's upgradeability to include additional contrast methods and discussion devices, ensure this model will offer long term functionality to all user levels in a variety of applications.

Objectives

To improve the overall optical performance of the BA310, Motic introduces a newly designed generation of Plan Achromatic Objectives made of high quality optical glass; CCIS® EF-N Plan. These new lenses are now multi-layer coated for improved contrast to enhance images even with weak slide stainings. Together with a new calculated tube lens, the result is a fully corrected, perfected intermediate image without colored fringes.

Eyepieces

The new standard eyepieces, N-WF 10X/20 with high eyepoint for eyeglass wearers, also made of high quality optical glass, provide consistent diopter adjustment for both eyes. This enables perfect usage of reticles for measuring, counting, etc. Lockable eyepieces prevent inadmissible removal and confirms Motic's dedication to student proof quality.

Eyepiece Tubes

Designed with an ergonomic viewing angle of 30º and incorporating an interpupillary distance of 48-75mm, the BA310 observation tubes guarantee fatigue-free viewing for hours. A large field of view (20mm) enables fast and comfortable screening. All standard eyepiece tubes now offer an extended “butterfly” swivel adjustment to increase the viewing height to accommodate individual user’s positioning. The trinocular tubes allow digital documentation by using a wide variety of digital cameras, with 20/80 or optional 0/100 light splits for the trinocular exit.

Illumination

The BA310 offers multiple illumination options, such as the Koehler 6V/30W Halogen or 3W LED.

The BA310 Trinuklear offers Koehler illumination Quartz Halogen 6V/30W

General Specifications

• Binocular/Trinocular head Siedentopf type, 30° inclined, 360° rotating (light split in trinocular head 100:0/20:80)

• Interpupillary distance 48-75mm

• Widefield high eyepoint eyepieces, N-WF10X/20mm, with diopter adjustment on both eyepieces and rubber eyecups

• Reversed quintuple revolving nosepiece

• CCIS® EF-N Plan 4X, 10X, 40X S and 100X S-Oil

• Coaxial coarse and fine focusing system

• Built-in low position coaxial mechanical stage (right hand control)

• Focusable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slot

• Koehler illumination Quartz Halogen 6V/30W or 3W LED with intensity control

• Universal power supply 100-240V

• Blue filter, immersion oil, power cord, Allen hexagonal key, thumb screw and vinyl dust cover are included

Contrast Techniques

Phase Contrast -Slider solution

Offered as an option, phase contrast is available for objectives EF-N Plan Phase 10X/0.25 and EF-N Plan Phase 40X/0.65.

Darkfield - Slider solution

Darkfield is possible with a separate DF slider (upto 40X, max. N.A. 0.65).

Polarization

Convenient and easy, the BA310 polarization system consists of a polarizer, placed on top of the collector lens, and the analyzer placed between the head and body.

Phase Contrast - Turret condenser

This Turret condenser contains the light rings for all EC-H Phase lenses 10X / 20X / 40X / 100X as well as a Dark field stop and a Bright field position.

Specifiche

Ottica


Oculare
10
Tipo di obiettivo
Planare acromatico
Tipo di pila
Alogena
Condensatore
Condensatore di Abbe (N.A. 1,25), con slot per vetrini, centratura e diaframma ad iride
Iluminazione
Luce trasmessa
Ingrandimento
1000

Meccanica


Tecnica di fabbricazione
Trinoculare
Messa a fuoco
Movimenti ampi e micrometrici
Visione
Visione angolata 30°, testa ruotabile a 360°
Tavolino portaoggetti
Tavolo a croce

Particolarità


Tavolino traslatore
-
Borsa anti-polvere
si
Portafiltro
si
Oculare grandangolo
si

Generale


Larghezza (mm)
400
Colore
grigio-nero
Peso (g)
8600
Altezza (mm)
200
Serie
BA-310
Lunghezza (mm)
400

Campi di aplicatione


Biologia e Medicina
si

Campi di utilizzo


Campo scuro
-
Fluorescenza
-
Contrasto per interferenza
-
Metallurgia
-
Contrasto di fase
-
Polarizzazione
-
Coltura cellulare
-
Medicina veterinaria
si
Università
si
Patologia e istopatologia
si
Biologia, zoologia e botanica
si

Sicurezza del prodotto

Produttore: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
