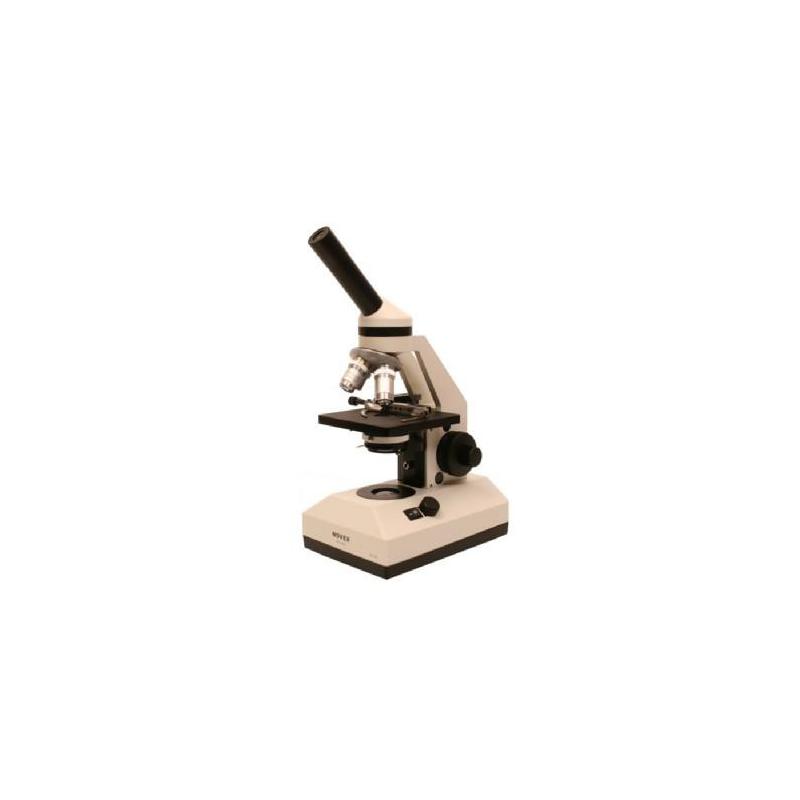

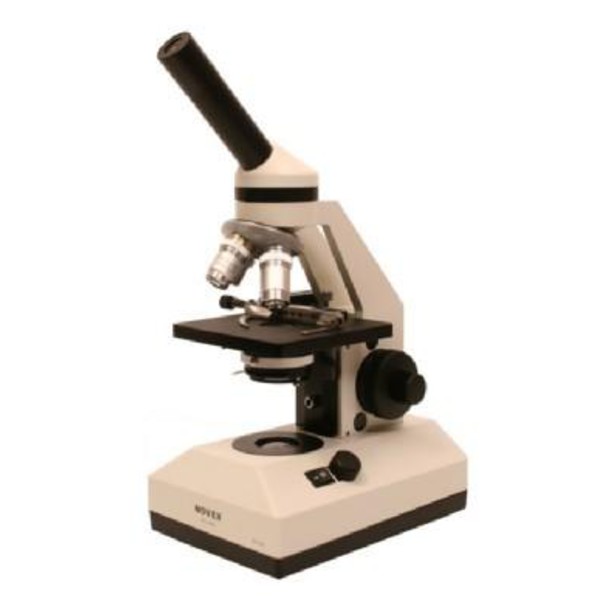

Novex SH-45 student/school microscope
- Wide field eyepiece WF10x/18 with fixed pointer
- Monocular 45° inclined tube, 360° rotatable, tube length 160 mm
- Ball-beared nosepiece suitable for 4 objectives
- DIN achromatic objectives 4x N.A. 0.10, 10x N.A. 0.25 and S40x N.A. 0.65.
All objectives anti-reflection coated. The 40x is spring-loaded. Magnification 40x, 100x and 400x - Modern and stable stand. Focusing by means of co-axial coarse and fine adjustment knobs Fine adjustment with slip clutch mechanism Protection with adjustable stopper to prevent damage to objectives and specimen
- 120x120 mm with attachable mechanical stage. Range 50x30 mm, provided with double nonius 0.1 mm. Horizontally placed control knobs
- Vertically adjustable Abbe condenser N.A. 1.25. With iris diaphragm, filter holder, blue filter and dark field disc
- Adjustable halogen illumination 12 V, 10 W with collector lens
Detachable cable with plug-transformer for 230 V - Packing complete with dustcover in styrofoam case
