Microscopi > Microscopi > Microscopi manuali > Dino-Lite > Universal > Dino-Lite AM4113ZT, 1.3MP, 20-70x & 200x, polarizer
Prodotto n.: 76923

AM4113ZT, 1.3MP, 20-70x & 200x, polarizer

Giallo
disponibile in 3-7 giorni + Tempo di trasporto

Descrizione prodotto

In brief :

  • Magnification 10-70x and 200x
  • USB 2, 30 fps
  • infrared filter
  • polarizing filter
  • measuring, calibrating
  • CE, ROHS, FCC certified

AM4113ZT

The Dino-Lite AM4113ZT is a convenient, easy-to-use, professional handheld digital microscope that delivers superior image quality with up to 200x optical magnification.

It is equipped with a high-quality 1.3 megapixel sensor with crystal-clear image quality and natural color reproduction, allowing you to view and record objects in the greatest detail. This model comes with DinoCapture 2.0 software for Windows and DinoXcope software for MacOS, which allows you to perform calibrated measurements on images captured with the Dino-Lite. The built-in polarization filter reduces reflections on reflective materials such as metals, plastic, electronic components, etc.

Specification

  • Light/ LED type: White
  • Number of LEDs: 8
  • LED on/off switchable: Yes
  • Infrared filter: IR cut filter >650 nm
  • Diffuser available: MSAA111A2 (optional accessory)
  • Emission filter: no
  • Polarizer: Yes, linear
  • Magnification: 10-70x, 200x
  • Macro zoom: no
  • Lens type: Glass with anti-reflection coating
  • Sensor type: CMOS
  • Resolution: 1.3 megapixels (1280x1024)
  • Maximum frame rate: 30 fps
  • Interface: USB2.0
  • Operating system: Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up
  • Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
  • Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
  • Supported video formats (Windows): WMV, FLV, SWF
  • Supported image formats (MacOS): JPEG, PNG
  • Supported video formats (MacOS): MOV
  • Imaging standards: DirectShow, UVC
  • HOUSING Housing material: Composite/ plastic housing
  • Magnification lock: Yes Dimensions:
  • 10.5cm (L) x 3.2cm (D) Weight: 105g
  • Cable length: 1.8m
  • Special feature: no
  • Measurement: Yes
  • Calibration: Yes
  • Microtouch sensor: Yes
  • ESD safe: no

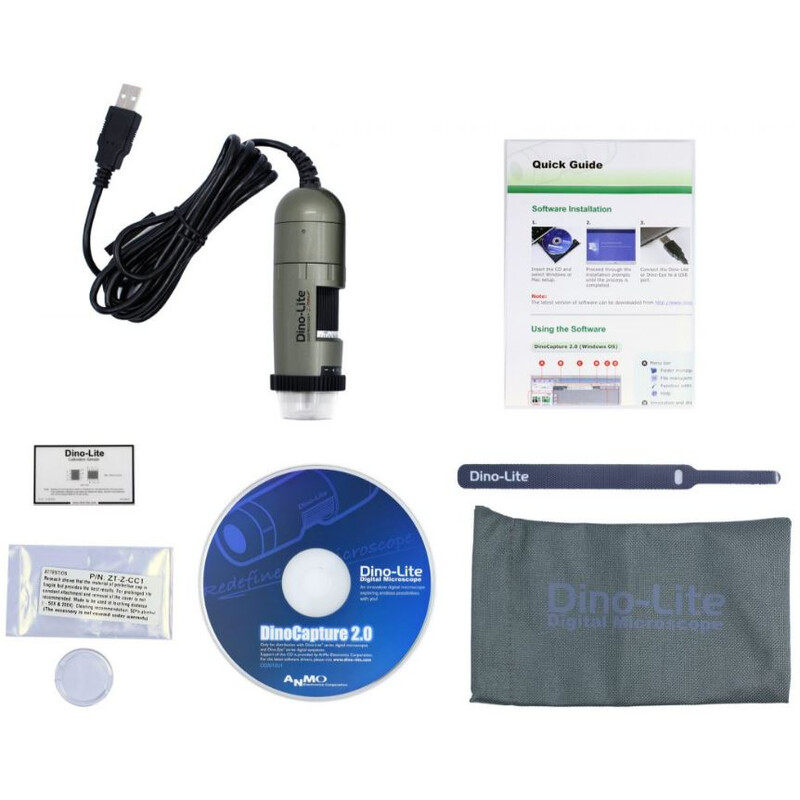

  • Package contents: Microscope, Carry pouch, Software CD, Calibration target, ZT-Z-CC1 Cap closure, User manual
  • Warranty information: 2 years European warranty
  • Regulatory Approval: CE, FCC, ROHS

Specifiche

Ottica


Ingrandimento
10-70 + 200
Iluminazione
Illuminazione incidente

Prestazioni


Tipo di pila
8 LED
Interfaccia
USB 2.0
Megapixel
1.3
Risoluzione foto
1280x1024
frame rate (fps)
30

Fotocamera


sensore
CMOS

Generale


Peso (g)
105
Lunghezza (mm)
1,5
Diametro (mm)
3,2
Serie
Universal

Campi di aplicatione


Industria e Materiali
-
Didattica
si
Hobby e amatore
si
Biologia e Medicina
-

Campi di utilizzo


Metodi di guargione alternativi
-
Archeologia
-
Odontoiatria
-
Tecnologia dei semiconduttori
-
Criminologia forense
-
Metallurgia
-
Ingegneria meccanica
-
Patologia e istopatologia
-
Medicina veterinaria
-
Elettronica
no
Industria tessile
-
Scuola
si
Università
-
Ingegneria dei materiali
si
Polarizzazione
si
