Briefly:
- Extended depth of field
- Flexible LED controls
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: no
- Polarizer:Yes, linear

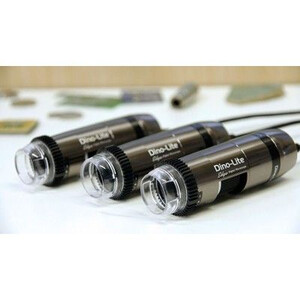

AM7915MZT - EDGE
With the use of the latest innovative optics, an all new 5 megapixel sensor and several special features, the Dino-Lite AM7915MZT is a technological marvel and the best choice for demanding professionals. The Dino-Lite AM7915MZT offers excellent image quality and color reproduction in a robust, compact and attractive body.
The AM7115MZT is part of the Dino-Lite Universal series and with its standard working distance and wide magnification range of 20 - 220x, suitable for a variety of applications. Due to the built-in polarizing filter, this model is ideal for working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc. The main features of the AM7115MZT are: 5-megapixel edge sensor, 20-220x magnification, integrated polarizer, aluminum body , Flexible LED Control (FLC), extensive measurement functions, calibration, exchangeable front caps and more.
(* Currently FLC only works on Windows OS)
Specification:
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: no
- Polarizer: Yes, linear
- Magnification: 20-220x
- Macro zoom: no
- Working distance: default
- Lens type: Glass with anti-reflection coating
- Sensor type: CMOS
- Resolution:5 megapixels (2592x1944)
- Maximum frame rate: 30 fps
- Interface: USB 2.0
- Operating system: Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up
- Included software:DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS):JPEG, PNG
- Supported video formats (MacOS): MOV
- Imaging standards: DirectShow, UVC
- Housing material:Aluminium alloy housing
- Magnification lock:Yes
- Dimensions: 10.5cm (L) x 3.2cm (D)
- Weight:125g
- Cable length:1.8m
- Special feature: Flexible LED Control (FLC)
- Measurement:Yes
- Calibration:Yes
- Microtouch sensor: Yes
- ESD safe:Yes
Package contents:
- Microscope
- Carry pouch
- Software CD
- Calibration target
- User manual
- N3C-O-Open cap
- N3C-C- Closed cap
- N3C-D diffuser cap
- N3C Extension cap
N3C-L-Long cap
N3C-S-Side light cap
Warranty information: 2 years European warranty
Regulatory Approval: CE, FCC, ROHS
