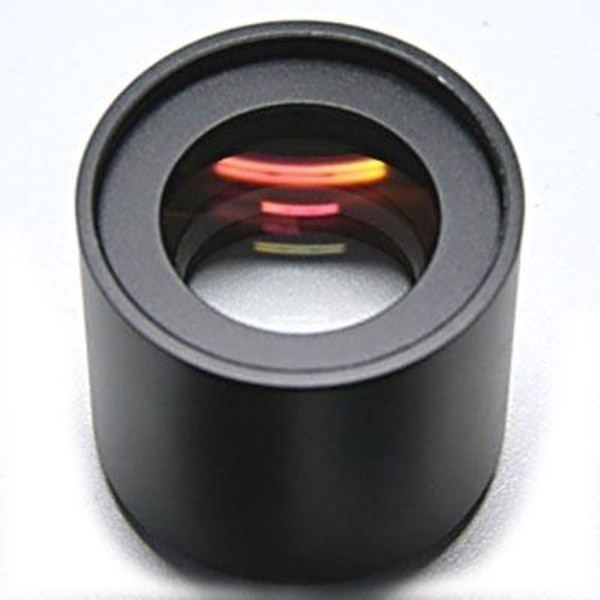

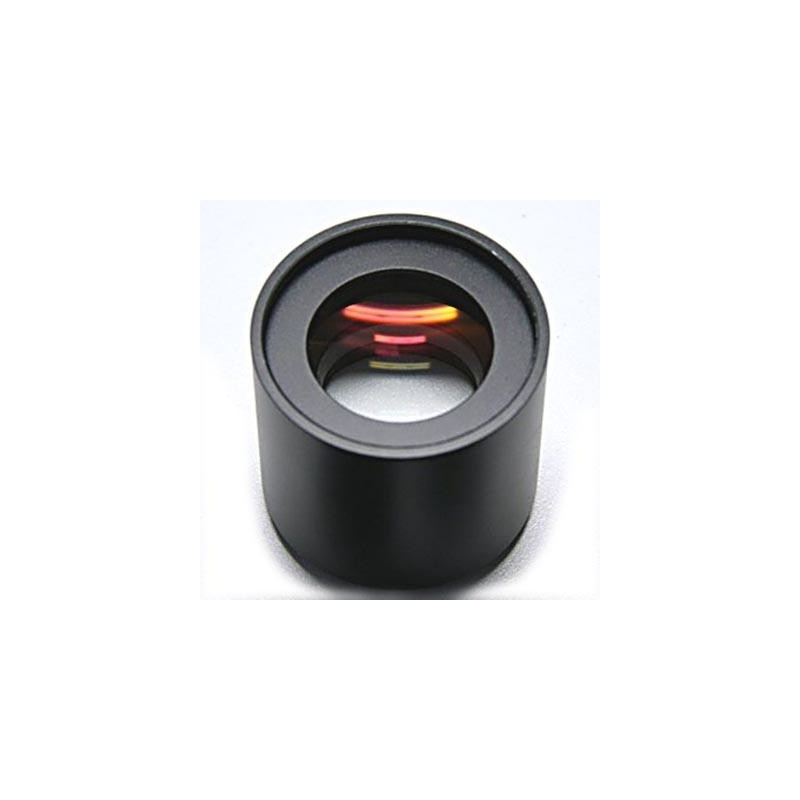

TS Optics Riccardi Riduttore e correttore 0,75x

Prodotto n.: 50208
Produttore: TS Optics

Prezzo di vendita consigliato: $ 830,00

Il nostro prezzo:
$ 560,00

IVA incl.
Risparmi: $ 270,00
Descrizione prodotto
Specifiche
Recensioni clienti
Accessori raccomandati

Descrizione prodotto:

Questo articolo è notevolmente ridotta nel prezzo!

Notare che questa descrizione prodotto è una traduzione automatica. Per maggiori informazioni contattare il nostro servizio clienti di lingua inglese.

The Reducer is expected for the current Triplet Apo. It reduces the focal length by 1/4 and correspondingly increasing the light intensity. This Reducer is fully illuminate its big lenses capable of even full-frame sensors.

Connection data:

  • telescope-side connection thread: M82x1 thread with adjustment flange
  • camera side connection thread: M82x1 female thread

Distance from kameraseitigem thread for chip, see Connection data:

  • TS APO 115 / 800mm / APM LZOS Apo 115/800 ... 76,5mm
  • APM APO 107 / 700mm ... 78,3mm
  • APM LZOS 105 / 650mm 80mm ...
  • APM LZOS 100 / 800mm ... 77,5nn
  • TS APO 130/780 / APM LZOS 130 / 780mm ... 77,4mm
  • Skywatcher Esprit Apo 120mm 77mm ...
  • APM LZOS 152 / 1200mm ... 74,2mm
  • TS APO 150 / 1000mm and Skywatcher Esprit Apo 150mm 77mm ...
  • APM LZOS 175 / 1400mm ... 71,3mm
  • GSO / Astrotec RC telescopes from 10 "... 91,2mm

Required Back Focus when the Reducer to the extension tube is screwed: The corrector focuses purely on. The Reducer has a case diameter of 90mm. To sink the Reducer in the extract, the extract pipe must thicker than 90mm be like all 3.5 "Feather Touch Excerpts from Starlight Instruments. Then you will definitely have no problems to find the focus. If the reducer but to the are screwed extension tube, you need about 210mm back focus from the connecting thread of your focuser. If you do not want to necessarily go to full size, the smaller Reducer is an alternative.
