Euromex NZ.1703-S, NexiusZoom EVO, 6.5x to 55x, rack and pinion, LED 3 W, trino

Prodotto n.: 55613
Produttore: Euromex

$ 1.070,00

IVA incl.
Descrizione prodotto
Recensioni clienti
Accessori raccomandati

Descrizione prodotto:

Notare che questa descrizione prodotto è una traduzione automatica. Per maggiori informazioni contattare il nostro servizio clienti di lingua inglese.

Nexius Zoom Evo

The NexiusZoom and NexiusZoom Evo stereomicroscopes from Euromex make it possible to carry out examinations of your samples with high performance precision. It generates three-dimensional images for microscopy of the highest demands. These high-end zoom microscopes are perfect for analyzing all types of surfaces or for observing biological samples. The NexiusZoom stereo microscopes are available with a large selection of stands and are supplied with or without LED lighting. Ideal for all types of educational and laboratory applications. With additional lenses and lenses, magnifications of 3.3 x up to 220 x can be achieved

NexiusZoom EVO series

Technical specifications

  • Eyepieces : pair of WF 10x / 23 mm, both eyepieces with ± 5 diopter adjustment
  • Head: Bino- or Trinocular head with 45 ° angled view, eye relief adjustable from 54mm to 75 mm
  • Lenses: Zoom from 1: 8.4 lenses with 0.65x to 5.5x magnification. Field of view from 35.4 mm to 4.2 mm. Large working distance of 110 mm
  • Front lens: 0.5x / 0.75x / 1.5x and 2.0x optional
  • Tripod: Ergonomically designed column or rack tripod with LED lighting and two object clamps or ergonomically designed overhanging tripod with one or double arm with rough adjustment, without lighting.
  • Material: metal alloy, painted white
  • optical parts are anti-fungal treated

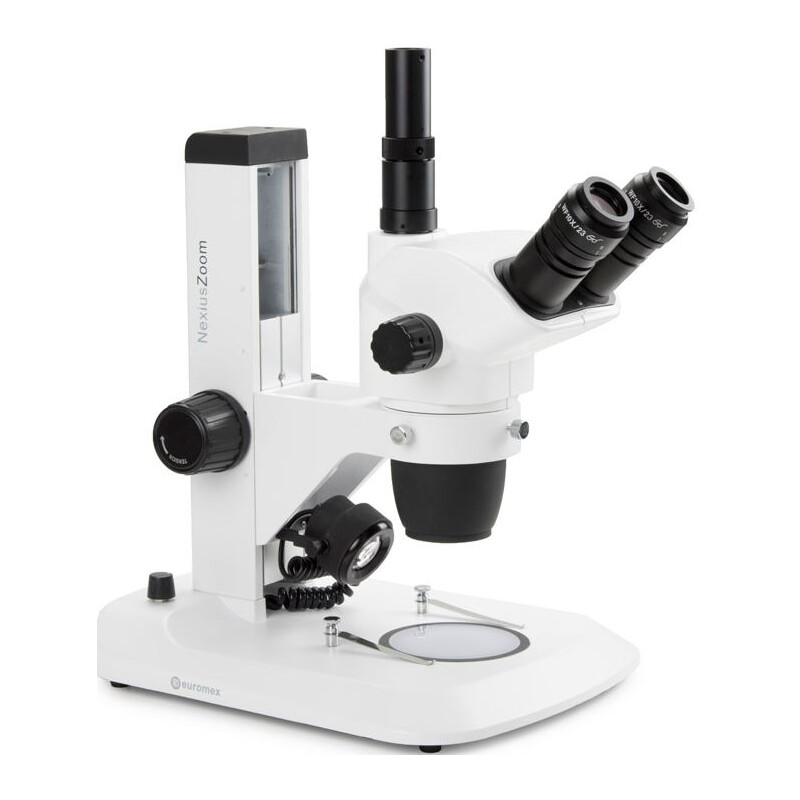

NZ.1703-S, NexiusZoom EVO, 6.5x to 55x, rack and pinion, LED 3 W, trino


  • Lens: zoom, 0.65 x - 5.5 x
  • Eyepieces: WF 10x / 23 eyepieces in 45 ° inclined tube with +/- 5 diopter adjustment
  • Magnification : from 6.5 to 55x
  • Field of view: from 33 mm to 4.9 mm
  • Free working distance: is 110 mm
  • Maximum object height: 148 mm
  • Packed in a styrofoam box

Tripod: Rack tripod

Lighting: LED lighting
