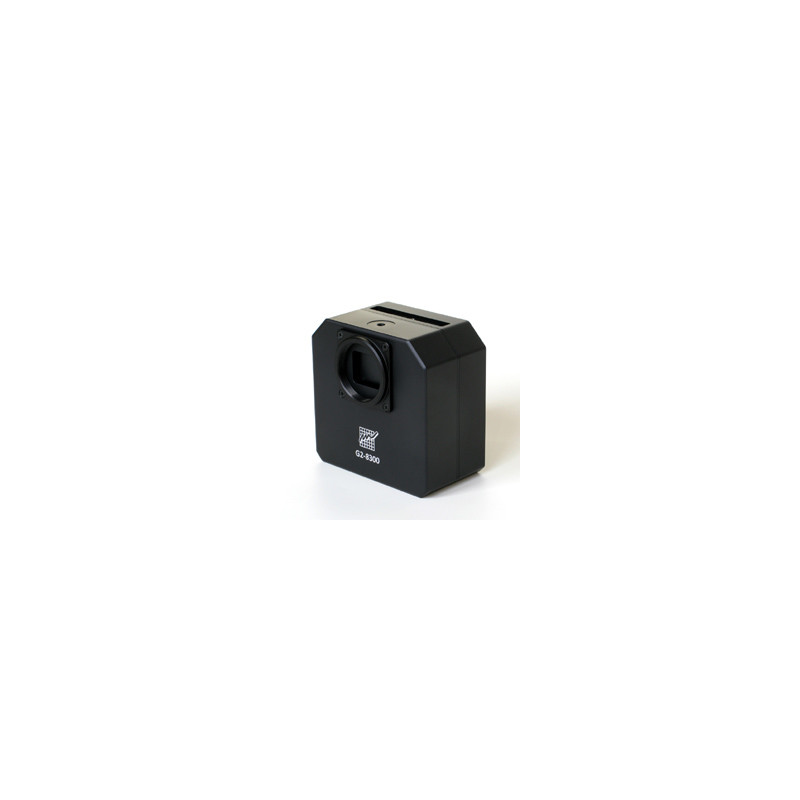

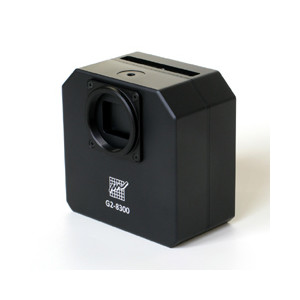

G2-series of small format CCD-cameras uses high sensitive, low noise OnSemi Full-Frame and Interline-Transfer CCD detectors.
While high-speed USB 2.0 interface allows plug-and-play operation and ensures download time within a few seconds, optional Ethernet interface provides camera connection to practically unlimited distance. Advanced analog electronics ensures uniform frames without artifacts and very low read noise. Efficient, regulated two-stage Peltier cooling keeps detectors frozen to minimize dark current. Compact and robust camera head integrates all electronics, mechanical shutter and optional internal filter wheel. Various threaded and bayonet adapters enable attaching of the camera to almost any optical system and numerous accessories like autoguiding cameras, off-axis guider adapters, external filter wheel etc. allow tailoring of the imaging system to almost every application.
All members of the G2 series share the same design, making them powerful research and imaging tools:
- Lowest possible read noise, limited by CCD detector itself
- High dynamic range, 16-bits digitization
- Compact camera head, small and lightweight enough to be attached even to small telescopes
- Integrated mechanical shutter not to bother with covering the telescope when taking dark frames
- Optional integrated filter wheel
- Plug and play installation
- Rich software support
No matter if your target is reliable scientific data or beautiful images of deep-sky objects, G2-CCD-cameras are able to provide both.
G2-0402, G2-1600 and G2-3200 models are equipped with Full-Frame, Non-Antiblooming Gate (NABG) detectors. Their features make them especially suitable for research applications:

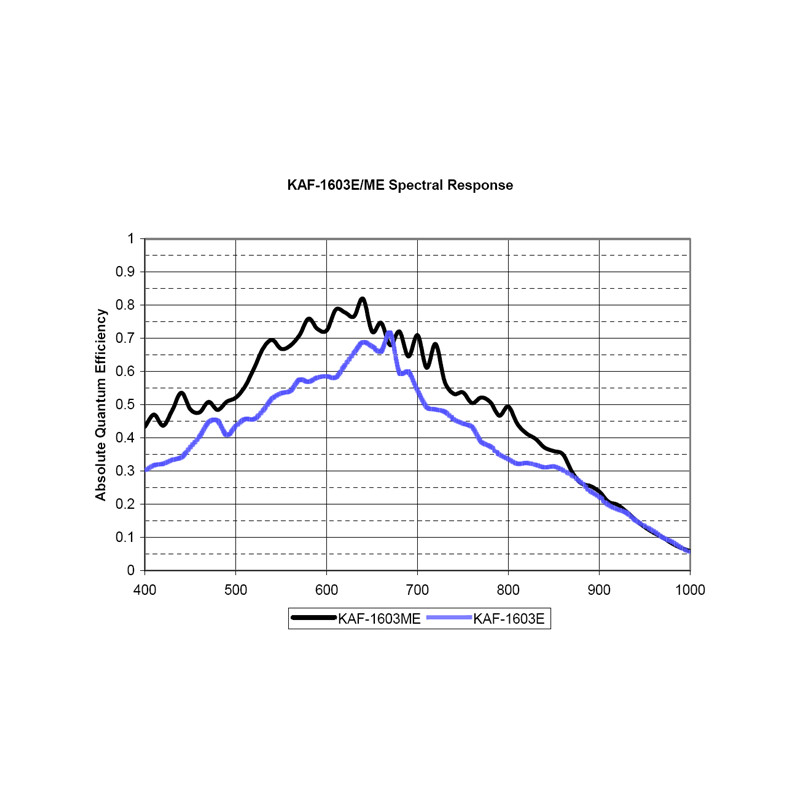

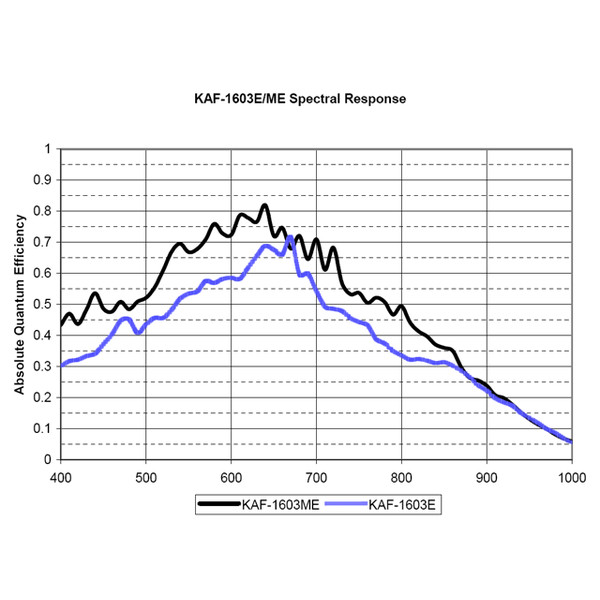

Very high sensitivity with peak QE above 80%
High full-well capacity (up to 100ke- in the case of G2-0402 and G2-1600 models)
Non-ABG detectors with linear response to light
