Astrofotografia > Fotocamere > Telecamere astronomiche > Moravian > G2 > Moravian Fotocamera G2-3200 Mono
Prodotto n.: 50302

Fotocamera G2-3200 Mono

$ 5.700,00 IVA incl., più spese di spedizione
troppo caro?
a lungo termine
Prodotto non più disponibile + Tempo di trasporto

Descrizione prodotto

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

G2-series of small format CCD-cameras uses high sensitive, low noise OnSemi Full-Frame and Interline-Transfer CCD detectors.

While high-speed USB 2.0 interface allows plug-and-play operation and ensures download time within a few seconds, optional Ethernet interface provides camera connection to practically unlimited distance. Advanced analog electronics ensures uniform frames without artifacts and very low read noise. Efficient, regulated two-stage Peltier cooling keeps detectors frozen to minimize dark current. Compact and robust camera head integrates all electronics, mechanical shutter and optional internal filter wheel. Various threaded and bayonet adapters enable attaching of the camera to almost any optical system and numerous accessories like autoguiding cameras, off-axis guider adapters, external filter wheel etc. allow tailoring of the imaging system to almost every application.

All members of the G2 series share the same design, making them powerful research and imaging tools:

  • Lowest possible read noise, limited by CCD detector itself
  • High dynamic range, 16-bits digitization
  • Compact camera head, small and lightweight enough to be attached even to small telescopes
  • Integrated mechanical shutter not to bother with covering the telescope when taking dark frames
  • Optional integrated filter wheel
  • Plug and play installation
  • Rich software support

No matter if your target is reliable scientific data or beautiful images of deep-sky objects, G2-CCD-cameras are able to provide both.

G2-0402, G2-1600 and G2-3200 models are equipped with Full-Frame, Non-Antiblooming Gate (NABG) detectors. Their features make them especially suitable for research applications:

Very high sensitivity with peak QE above 80%

High full-well capacity (up to 100ke- in the case of G2-0402 and G2-1600 models)

Non-ABG detectors with linear response to light

Specifiche

Prestazioni


Tipo di sensore
chip CCD (Kodak KAF-3200ME)
Risoluzione foto
2184 x 1472
Megapixel
3,2
Distanza piano focale e flangia (mm)
16,5
Raffreddamento
si
Dimensione pixel
6,8
Interfacce
USB
Connessione (lato telescopio)
M48
Camera a colori
no
Lunghezza del cavo (m)
5
Dimensioni del chip (mm)
14,9 x 10
Profondità di bit (Bit)
16
Full Well Capacity
55.000
Corrente nera
0,8
Antiblooming
no
Microlenti
si
diagonale chip (mm)
18,1

Equipaggiamento


Casse da trasporto
si
Trasformatore
si
Ruota portafiltri
no

Generale


Serie
G2

Campi di utilizzo


AllSky, Meteore
no
Autoguida
no
Luna e pianeti
no
Nebulose e Galassie
si

Accessori raccomandati

Accessori Telescopi (1)
Trasformatore

Moravian Trasformatore Alimentatore esterno 12V 5A

$ 59,00*
Filtro (4)

Moravian Ruota portafiltri per camera CCD G2 - 10x filtro senza montatura 36 mm

$ 510,00*
Astrofotografia > Adattore Fotocamera (14)

Moravian Adattatore 2" per camere CCD G2 e G3

$ 64,00*
Astrofotografia > Altro (2)
Guida fuori asse

Moravian Guida fuori asse Off Axis Guider CCD-OAG-M48

$ 291,00*
Spettrografia & Fotometria (1)
Spettroscopio

Paton Hawksley Spettroscopio Star Analyser 100

$ 203,00*

*Tutti i prezzi includono IVA e costi di spedizione.

Moravian Fotocamera G2-3200 Mono

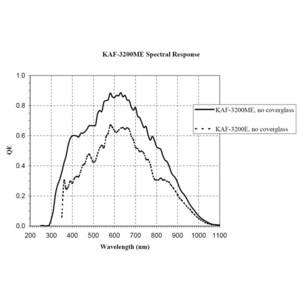

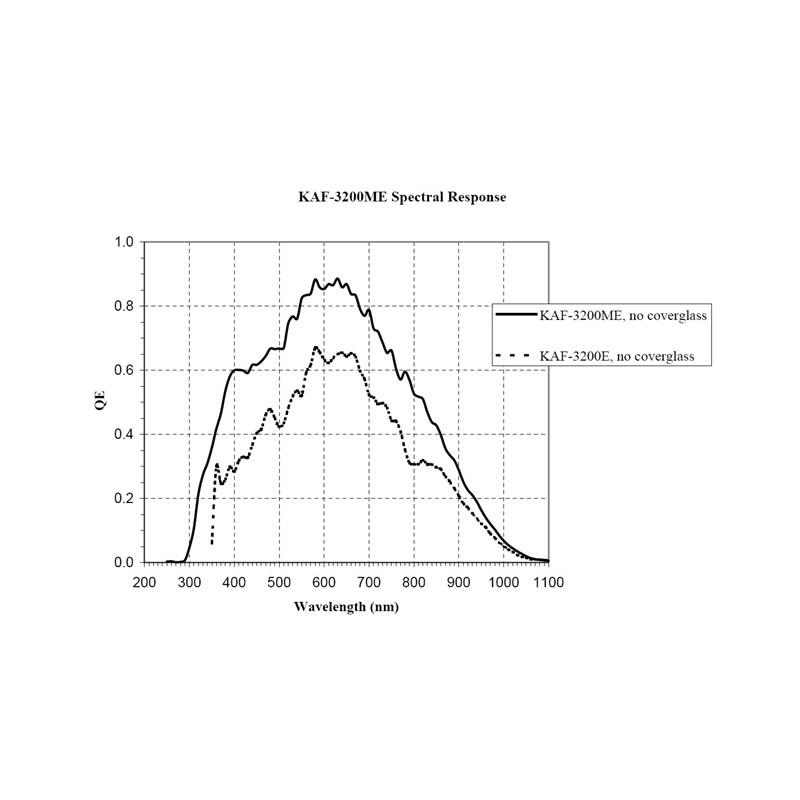

Efficienza quantica
