The EduBlue is ideal for training purposes. It is available with double or triple lenses and achieves a magnification range of 5x to 80x. Transmitted light and reflected light LED lighting enable 3-dimensional observation of small objects such as insects and stones.
HIGHLIGHTS OF THE SERIES
• The ideal stereo microscopes for beginners
• Binocular and trinocular models available
• Robust and stable metal tripods with secured eyepieces
• With 1x/3x, 2x/4x, 1x/2x/3x, or 1x/2x/4x magnification
• Rack stand or column stand
• Incident and transmitted light 1 W LED
• Cordless operation with batteries possible
• Digital models available with 5 MP camera
• Ergonomic carrying handle
TECHNICAL SPECIFICATIONS OF THE SERIES
Eyepieces :
• A pair of secured WF10x/20mm eyepieces with eyecups
• Diopter adjustment ± on the left eyepiece
Head:
• Binoculars inclined at 45°
• Eye relief from 55 to 75mm
Lenses:
• Dual magnification turret: 1x/3x, or 2x/4x
• Turret with triple magnification: 1x/2x/3x, or 1x/2x/4x
• Working distance 60 mm
• Field of view 20/10/6.7 mm or 20/10/5 mm
• Magnification can be changed through optional eyepieces
• All optics are antifungal treated
Tripod:
• Rack stand or pillar stand equipped with 2 object clamps and Ø 60 mm transparent and black/white plate
• Two coarse adjustment knobs
Lighting:
• Transmitted and reflected light with 1 W LED lighting, can also be used simultaneously
• Illuminance adjustable
• With rechargeable batteries for cordless use
Camera (digital models)
• Digital versions equipped with 5 MP USB2.0 camera. Resolution 2560 x 1920 pixels, 24-bit color depth, up to 30 frames per second
• Supplied as standard with ImageFocus Plus software, USB2.0 cable and micrometer 1mm/100
Software:
• Supplied with ImageFocus Plus for capturing images and videos
• This software allows a wide range of analysis as well as measurements on images and films.
• Save images in .jpg, .tif, .bmp formats and videos in AVI format
• Compatible with Windows 7, 8 and 10, all 32 and 64 bit configurations
• Mac OS software is available as a light version
• Updates can be downloaded from the Euromex website

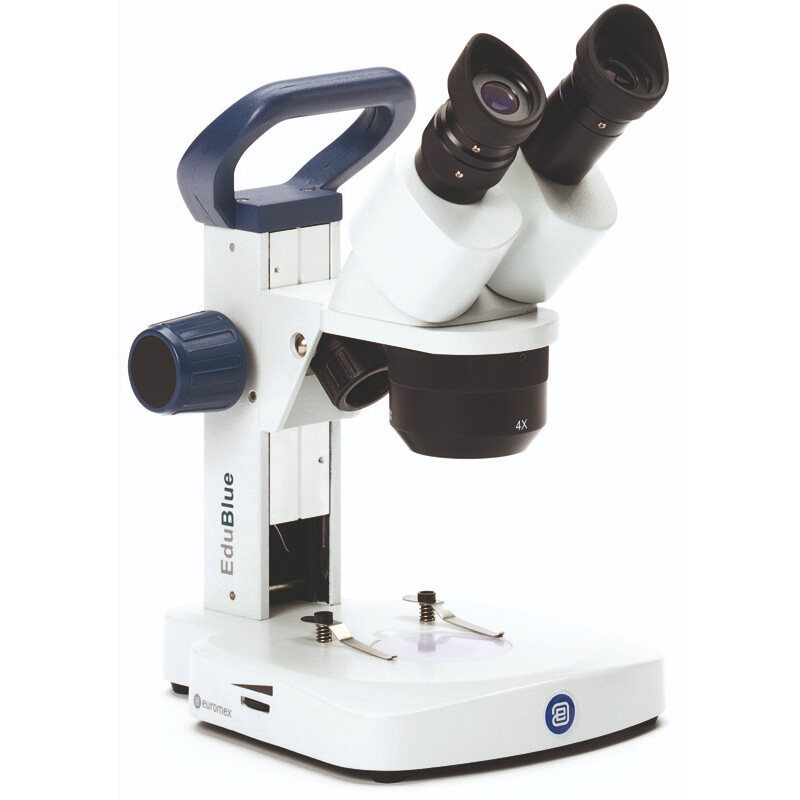

Specification Model EduBlue ED.1402-S
- Magnification: 20x, 40x,
- Rack and pinion tripod
- Incident and transmitted light
