Microscopi > Microscopi > Microscopi diritti > Microscopi a campo chiaro > Euromex > BioBlue LAB > Euromex Microscopio BioBlue LAB, BB.1153PLi, Trino, infinity, plan, 10x/20, 40x-1000x, NeoLED, 3W
Prodotto n.: 64559

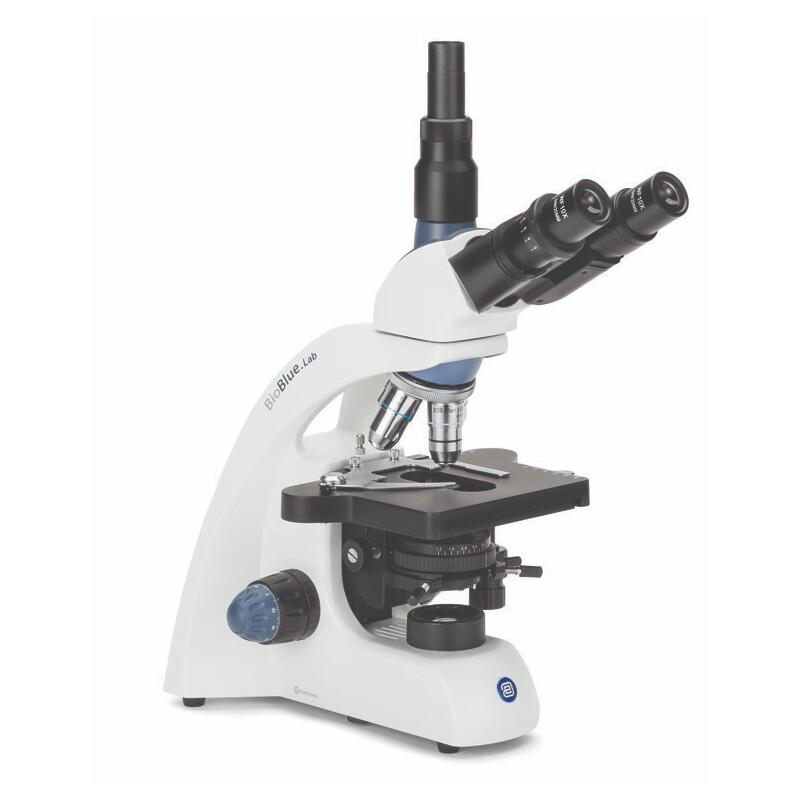

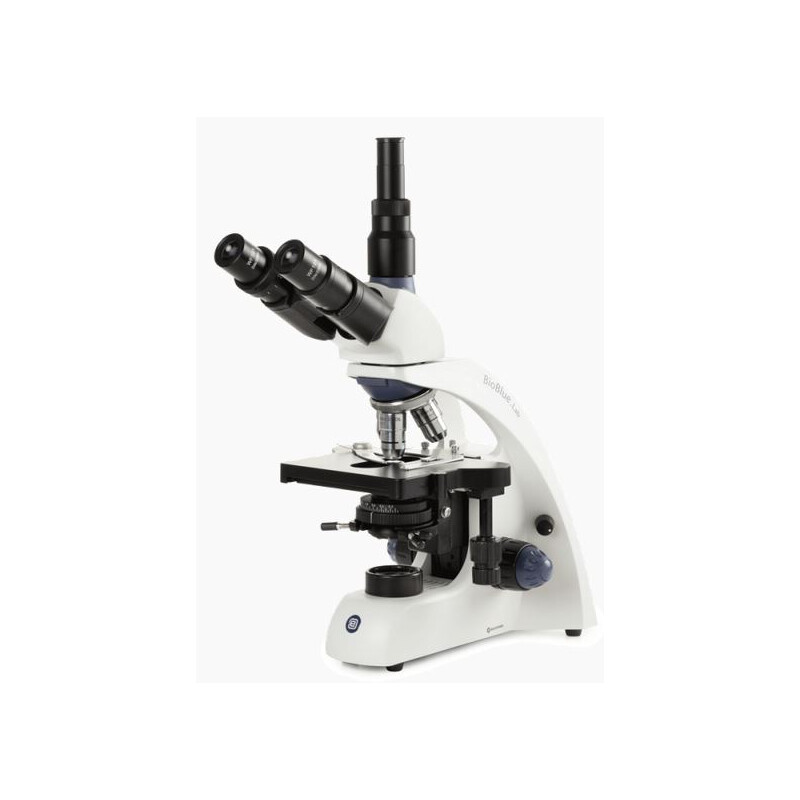

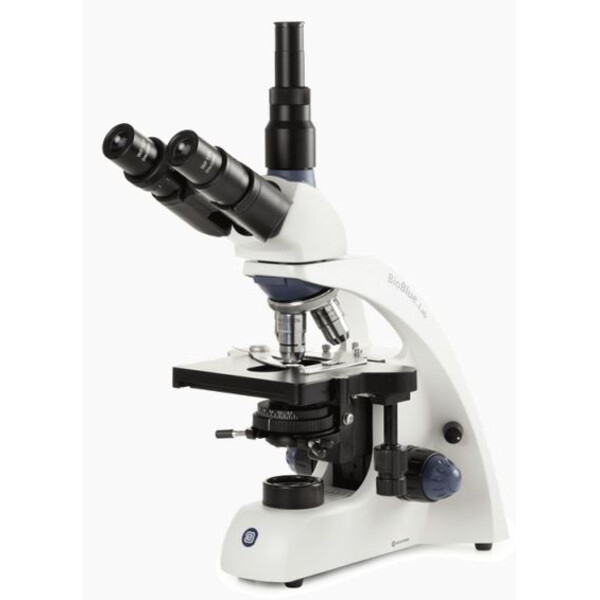

Microscopio BioBlue LAB, BB.1153PLi, Trino, infinity, plan, 10x/20, 40x-1000x, NeoLED, 3W

Giallo
disponibile in 1-2 settimane + Tempo di trasporto

Consegna prima di Natale,
quando il vostro ordine entro il 04.12!
Restituzione possibile fino al 31.1.23!


Descrizione prodotto

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

BioBlue.Lab

The BlueLine flagship BioBlue.Lab is an instrument that precisely matches highest expectations of microscopy users. These ergonomic easy-to-use microscopes have specifically been designed for educational and laboratory applications. The 150 x 140 mm stage with integrated rackless X-Y mechanical stage with 75 x 30 mm travel, provides a smooth translation of the specimen and highly precise positioning which is highky appreciated in most demanding cytology and histopathology applications. The BioBlue.Lab microscope models offer great functionality and are equipped with WF10x/20 mm eyepieces, plan and IOS plan 4x/ 10x/ S40x/ S100x objectives or plan phase and IOS plan phase contrast objectives 10x / 20x / S40x / S100x. All models are equipped with NeoLED illumination system and are available in binocular and trinocular versions

Highlights

  • Binocular and trinocular models
  • Reversed quadruple nosepiece
  • Plan and plan phase objectives
  • Finity and infinity optical system
  • Integrated mechanical stage
  • NeoLED™ illumination
  • Ergonomic carrying grip

EYEPIECES
Wide field WF 10x/20 mm eyepieces

HEAD
• Binocular and trinocular models have 30° inclined Ø 30 mm tubes
• The interpupillary distance is adjustable between 48 to 75 mm
• All models have a ±5 diopter adjustment on left tube
• All heads are 360° rotatable and secured with a screw
• The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image

NOSEPIECE
Reversed quadruple nosepiece on ball bearings

OBJECTIVES
• BioBlue.Lab microscopes are equipped with plan, plan IOS, plan phase and plan phase IOS objectives
• Optional 20x/0.40 and S60x/0.85 objectives are also available
• The S40x, S60x and S100x objectives are spring loaded.

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING
• Coaxial coarse and fine adjustments with 200 graduations
• Precision 1.5 μm per graduation, 0.3 mm per rotation
• Total travel approximately 28 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• The coarse adjustments are equipped with friction control

STAGE
Rackless 150 x 140 mm stage with mechanical 75 x 30 mm X-Y translation stage

CONDENSER
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder. Supplied with white filter
• Heigth adjustable Zernike phase contrast kit with PLPHi IOS objectives and rotating phase contrast disc with four annuli, centering telescope and green filter (see photo)

ILLUMINATION
• Binocular and trinocular models are supplied with an adjustable 3 W NeoLED™ illumination system for increased light output
• Power supply with integrated 100-240 Vac

WEIGHT
The BioBlue.Lab weight is appr. 5.5 kg

PACKAGING
• Supplied with power cord, dust cover, a spare fuse, user manual, 5 ml immersion oil and white filter
• All packed in a polystyrene box

Specifiche

Ottica


Ingrandimento
40 - 1000
Correzione all'infinito
si
Curvatura di campo
Piano
Iluminazione
Luce trasmessa
Tipo di pila
LED
Oculare
EWF 10x / 20 mm
Numero di obiettivo
4
Obiettiva 1
4x / 0.10
Obiettivo 2
10x / 0.25
Obiettivo 3
S40x / 0.65
Obiettivo 4
S100x / 1.25
Obiettivo ad immersione
si
Sospensione
si
Correttore colore
acromatico
Condensatore
Abbe N.A. 1.25 (Abbe 1,25 N.A. messa a fuoco regolabile con diaframma a iride)
Sistema ottica
infinito

Prestazioni


Campo chiaro
si
Contrasto di fase
si

Meccanica


Tecnica di fabbricazione
Trinoculare
Messa a fuoco
Movimenti ampi e micrometrici
Tavolino portaoggetti
Tavolo a croce
Revolver
4

Generale


Serie
BioBlue LAB
Peso (g)
5600
Larghezza (mm)
205
Lunghezza (mm)
260
Altezza (mm)
448

Campi di aplicatione


Biologia e Medicina
si

Campi di utilizzo


Contrasto di fase
si
Fluorescenza
-

Varie


Codice prodotto del fornitore
BB.1153-PLi

Accessori raccomandati

Microscopi > Accessori Microscopia (34)

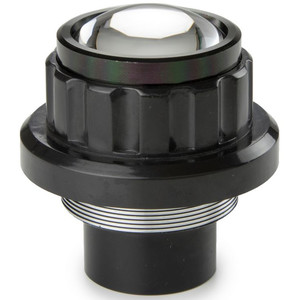

Adattore Fotocamera
