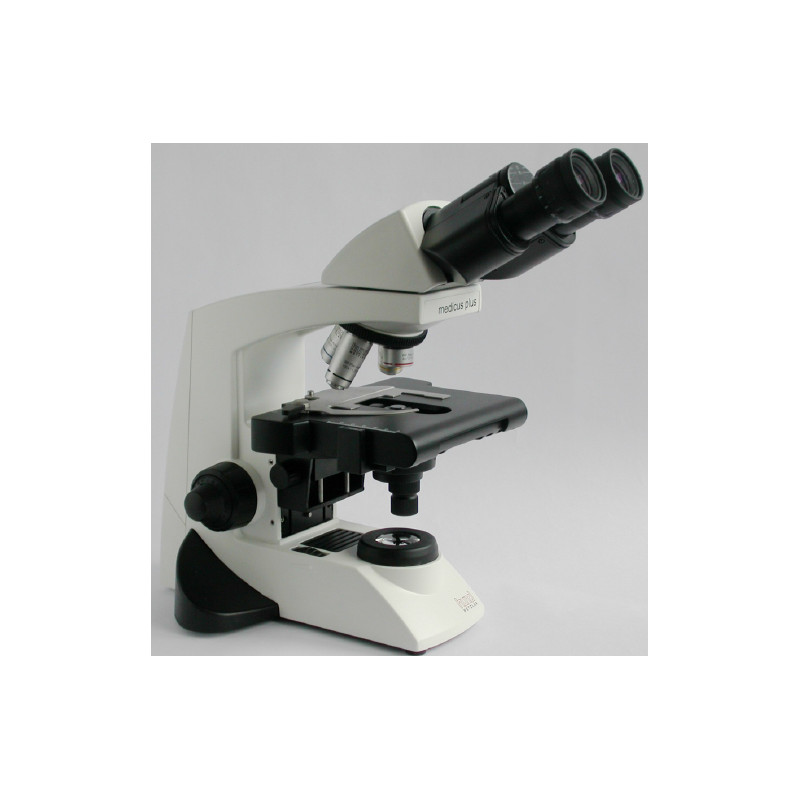

medicus plus PH with trinocular tube

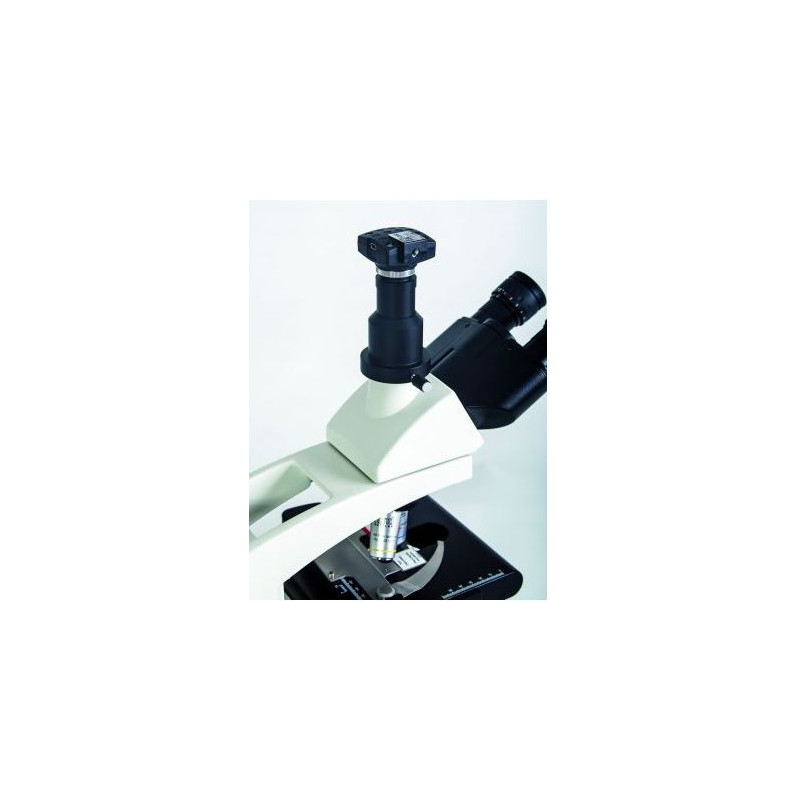

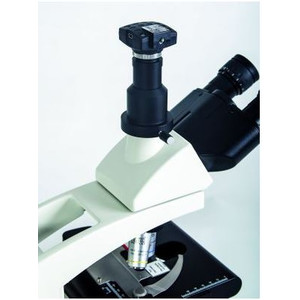

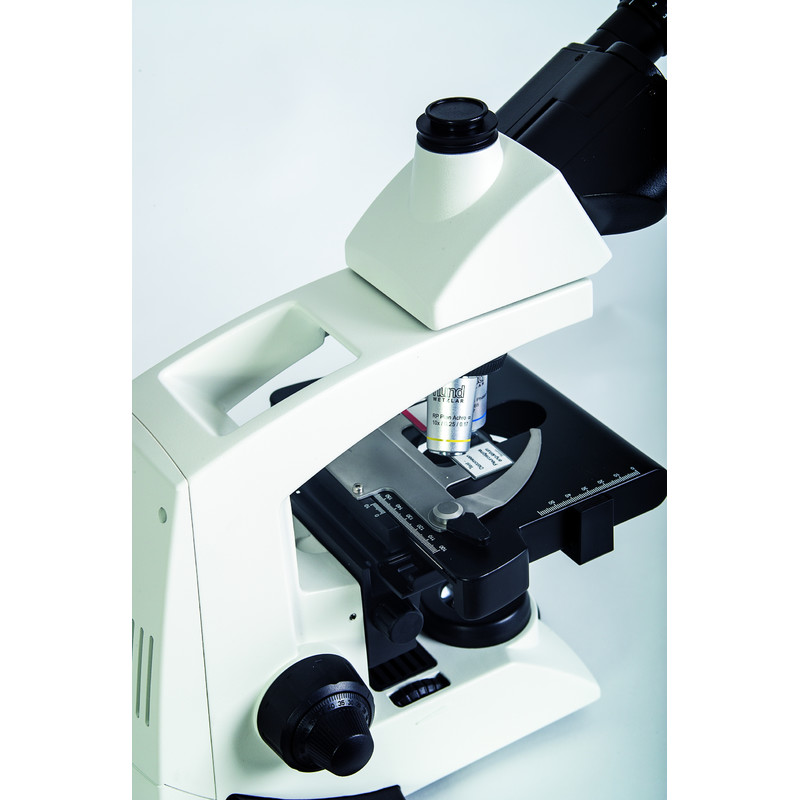

The bright field and phase contrast microscope for the doctor's office with planachromatic objectives, large field of view and trinocular tube for direct connection of C-mount cameras.

The dog microscope Medicus PH Plan , trino was put together especially for use in urological practice. Examination of urine samples for non-soluble constituents (eg erythrocytes, leukocytes, crystalline structures). Examination of the urine for possibly contained bacteria for microbiological evaluation. By using phase contrast, low-contrast components can be visualized. With the trinocular head, with optional photo tube and camera, simple documentation is possible.

Description:

• Tripod: with 4x revolving nosepiece
• Contrasting method: bright field, phase contrast
• Tube: Binocular, Siedentopf type, 30 °
• Eyepieces: WF 10x / 20

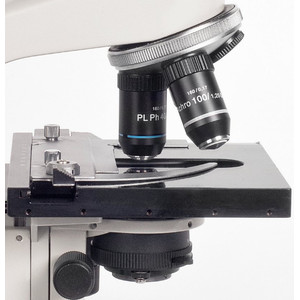

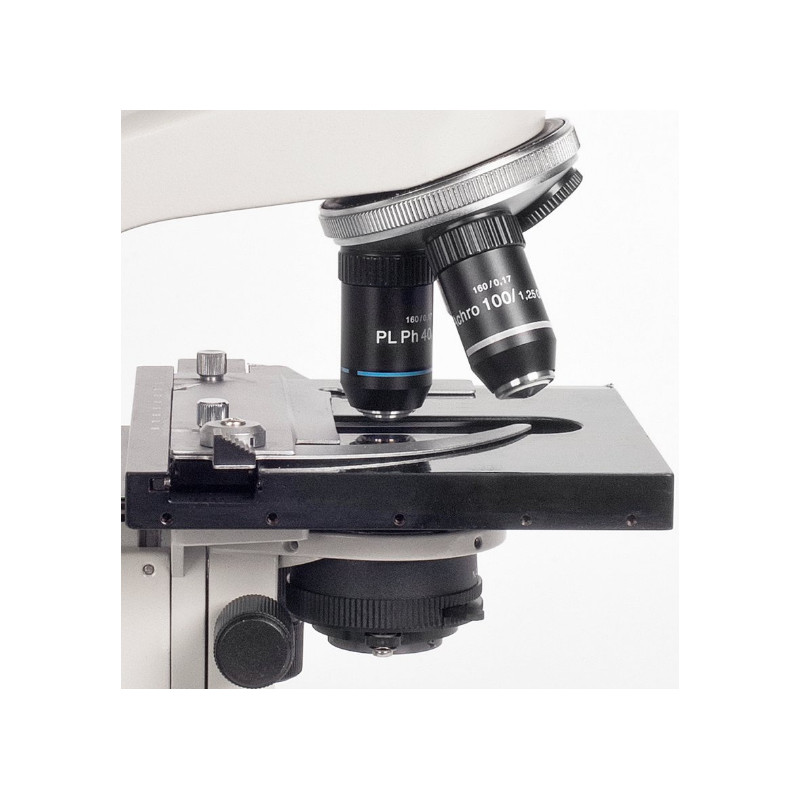

• Lenses: Plan 10x / 0.25; Plan Ph 40x / 0.65; Plan 100x / 1,25 (oil)
• Magnification: 100x - 1000x
• Object table: Cross table 200mm x 160mm
• Condenser: NA 1.25 for bright field and phase contrast (slider), with aperture stop and filter
• Lighting: 6V / 20W halogen, infinitely variable

delivery

• Dust cover
• replacement lamp
• spare fuse
• Immersionsoel
• Allen key
• power cable
