Hund microscopes have a high quality standard, a good functionality. They are ergonomic and versatile system for medical and biologycal applications .

Laboratory microscopes Medicus

• Solid cast tripod in classic gooseneck shape
• Coaxially arranged coarse and fine focusing drive.
  - Height adjustment of the coarse adjustment knob total: 12.7 mm.
  - Height adjustment of the fine adjustment knob per division: 3 microns
• Binocular Siedentopf -Tubus, 360° rotable .
  - Viewing angle 30 °
  - Tube factor 1x
  - Eye distance of 55 mm - 75 mm adjustable
  - Diopter compensation at each eyepiece.
• 4-position nosepiece with ball bearing guide
• Plan-achromatic lenses, infinity-corrected
• Cross table 200 mm x 160 mm with ergonomically located coaxial knobs.
  - Sliding range 78 mm x 54 mm
  - Specimen holder with spring lever
• Height adjustable Abbe condenser NA 1.25
• Integrated 6 V / 20 W halogen lights, infinitely variable

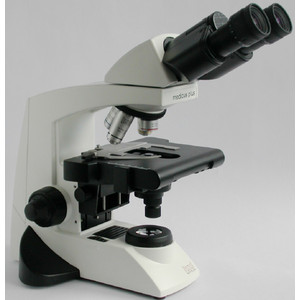

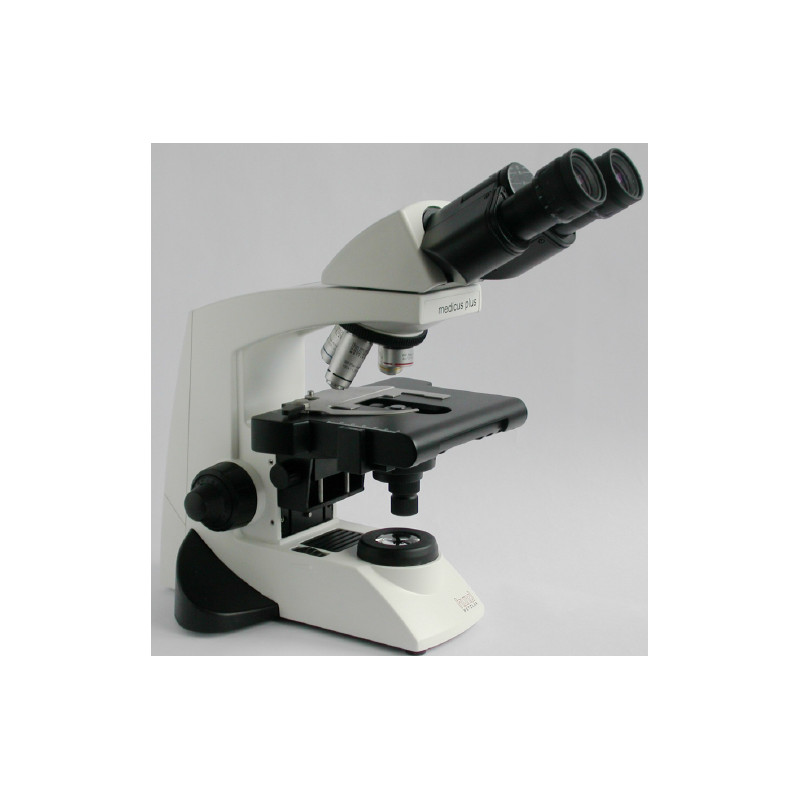

Medicus plus

with plan-achromatic infinity objectives

Consisting of:

• Stand equipment with 20 W halogen lighting
• Binocular Siedentopf tube (30° TF 1x)
• Eyepiece WF 10x / 20 with eyeshades 2 pcs.
• Lens plan 4x / 0.10
• Lens plan 10x / 0.25
• Lens plan 40x / 0.65 with spring slide protection
• Lens plan 100x / 1.25 oil with sprung slide protection
• Height adjustable Abbe condenser NA 1.25

Delivery Scope:

• Power cord
• wrench set
• dust cover
• spare bulb
• spare fuse
• operating instructions
