OBT-1 series
The OBT-1 microscopes are high-quality school microscopes that stand out for their clear controls, robustness and modern design. Areas of application are elementary school (primary) and secondary school, training or hobby. Translucent and thin, high-contrast, less demanding preparations such as e.g. B. plant tissue, or stained cells / parasites are considered.
The highlights of the series:
- infinitely dimmable 1 W LED
- Mobile use through optional battery operation
- 0.65 Condenser Lens with Adjustable Aperture Diaphragm (OBT 101)
- height-adjustable and therefore focusable 1.25 Abbe condenser with aperture diaphragm (models OBT 102 - OBT 106)
- Coarse and fine drive on both sides
- Mechanical cross table (with model OBT 103 - OBT 106)
- Large selection of different eyepieces and lenses
- Scope of delivery: dust cover and operating instructions

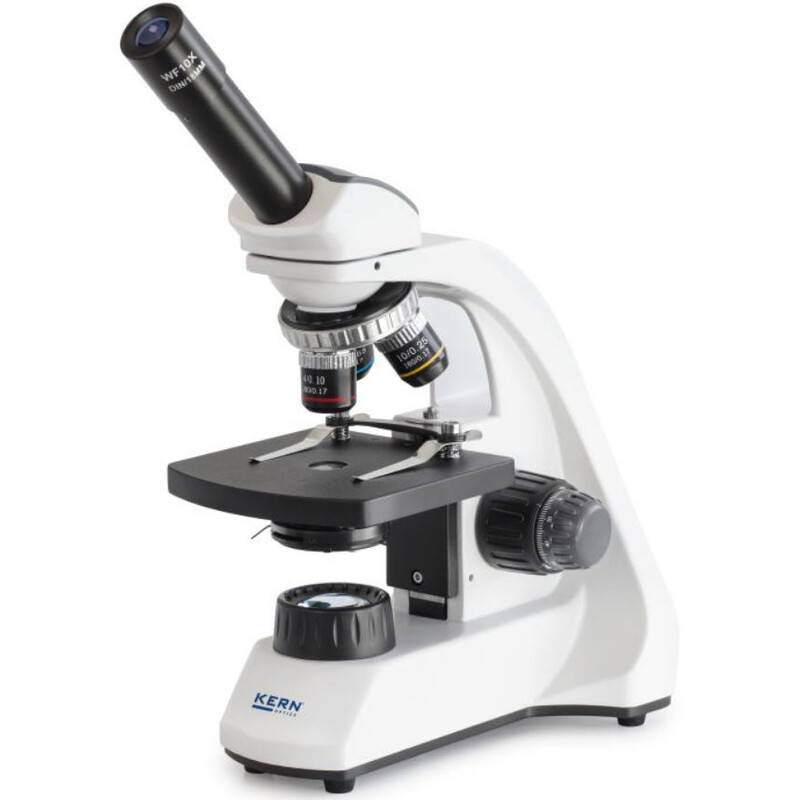

Specification OBT 101
- Finally optics (DIN)
- Monocular
- Tube inclined 45°/360° rotatable
- 3-position nosepiece
- Objectives: 4x / 10x / 40x achromatic
- simple condenser NA 0.65
- Simple stage WxD 115 x 110 mm
- 1W LED transmitted light
- Overall dimensions: W×D×H 195×147×325 mm
- Weight: 2.755kg
