Home > Microscopi > Microscopi > Microscopi diritti > Microscopi a campo chiaro > Motic > BA-310E > Motic Microscopio BA310E trino, infinity, EC-plan, achro, 40x - 400x, Hal. 30W

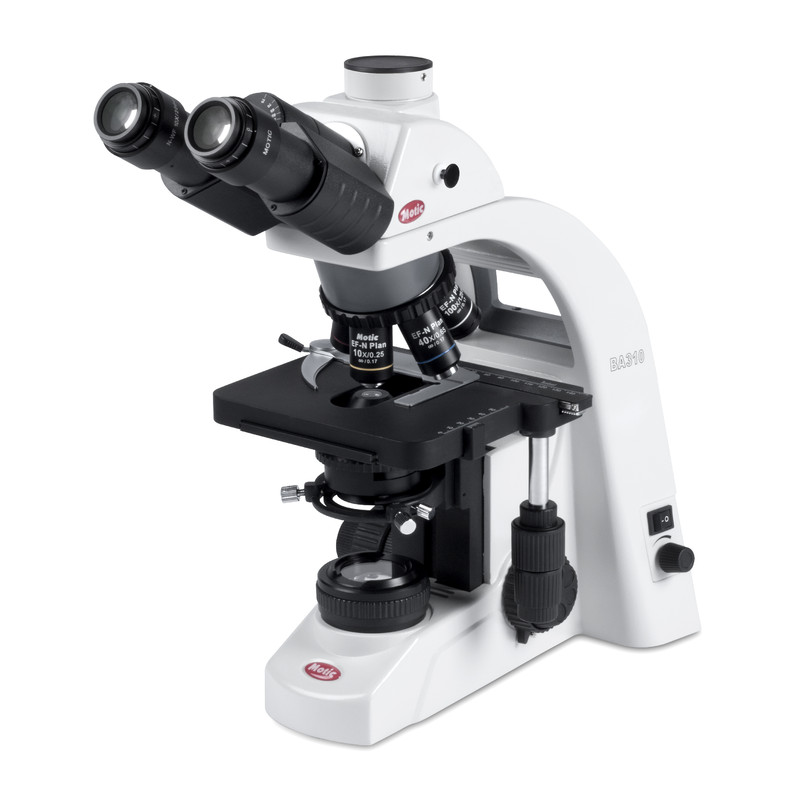

BA310E Trinocular

• Optical system Colour Corrected Infinity Optical System (CCIS®)
• Observation tube Trinocular head, Siedentopf type, 360º swiveling
• Trinocular light split 100:0/20:80 (optional 100:0/0:100)

• Interpupillary distance 48-75mm
• Diopter adjustment On both eyepieces, +/- 5 diopter
• Eyepieces Widefield N-WF10X/20mm with diopter adjustment
• Nosepiece Reversed quintuple
• Objective classification CCIS® EC Plan Achromatic, DIN
• Objectives

-4X/0.10 WD 15.9mm

-10X/0.25 WD 17.4mm

-40X/0.65/S WD 0.5mm

• Objective mounting thread W 4/5"x1/36" (RMS standard)
• Stand type Upright

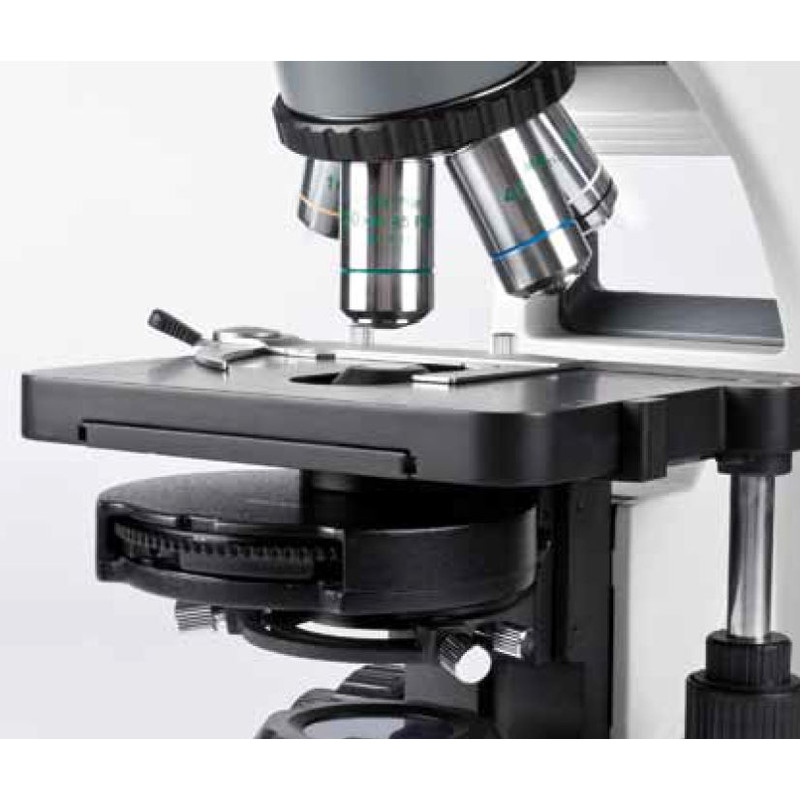

• Stage Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder
• Stage size 180x170mm
• Travel range X&Y 80x55mm
• Condenser Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
• Diaphragm Iris diaphragm
• Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
• Fine focus precision 2µm
• Focusing stroke 20mm
• Upper limit stop Upper limit stop preset but adjustable
• Filter holder On top of the illuminator with fixing cap
• Transmitted illumination Koehler Quartz halogen 6V/30W with intensity control
• Illumination interchangeability Quartz halogen 6V/30W or LED 3W
• Transformer Internal
• Power supply 100-240V (CE)
• Accessories included

1. Dust cover
2. power cord
3. Hex key
4. blue filter
5. spare fuse
6. cord hanger
7. thumb screw

• Dimensions LxWxH 400x220x400mm
• Net weight 8.6kg
