PANTHERA E2
The basic set for academic laboratory needs.
The new Panthera E2 microscope series makes it possible to experience life sciences in a new way, with the best possible learning effect. Even in a small laboratory with a small budget, this new technology from Motic is convincing. The Panthera E2 microscopes combine high-quality materials and precise technology into a durable and resilient construction. The smooth operation of the mechanics ensures fast and reliable results that raise your daily work in the classroom and laboratory to a higher level of quality. The user-friendly design, the robust construction and the unique functions guarantee the best performance, even under heavy use. The models in this series impress with their ease of movement and feel. Sections of plants, transparent native specimens, but also medical specimens are displayed with impressive image quality.
Highlights of the series:
360° ROTATING HEAD
QUAD LENS REVOLVER
ULTRA CONTRAST (UC) PLAN ACHROMATIC LENSES
GEARLESS MECHANICAL X/Y STAGE
COAXIAL FINE AND COARSE DRIVE
LED LIGHT INTENSITY INDICATOR
USB FOR POWER BANK
1 W LED LIGHTING WITH FIXED KÖHLER
USB FOR CAMERA CONNECTION
ACCESSORIES FOR PHASE CONTRAST, POLARIZATION AND DARK FIELD
Specifications Panthera E2 Trinocular (1100104601121)
Optics concept: Color-corrected infinity optics (CCIS®)
Tube: Trinocular tube, Siedentopf type, eyepiece sockets can be rotated 360°
Viewing angle: 25°
Beam Split Trinotube: Fixed 50:50 visual: Camera output
Eye relief : 48-75mm
Diopter compensation: +/- 5 dpt on both eyepieces

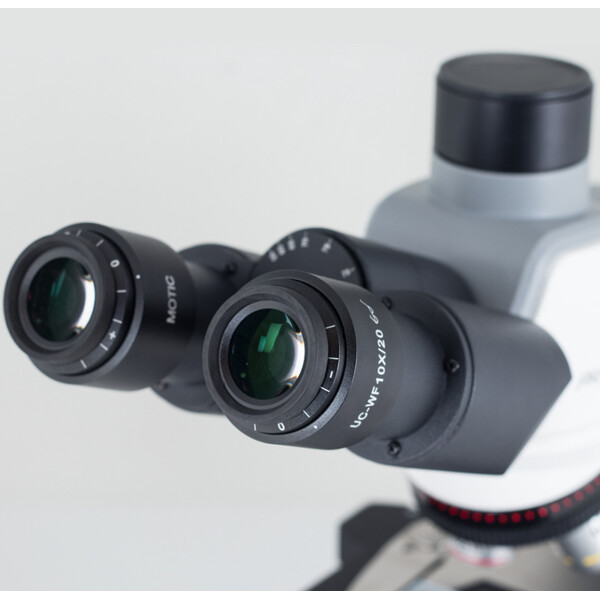

Eyepieces: wide field UC-WF eyepieces 10X/20mm, with diopter compensation
Objective turret: 4x, rear-facing
Lens class: CCIS® UC Plan Achromate (Pb-free)

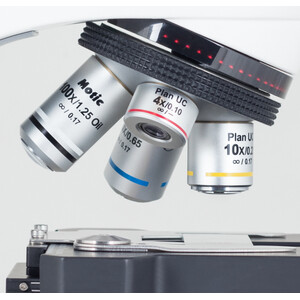

Lenses: 4X/0.10 (AA 30.5mm), 10X/0.25 (AA 17.4mm), 40X/0.65/S (AA 0.6mm), 100X/1.25 S-Oil (AA 0.16mm)
Lens thread: W 4/5" x 1/36" (RMS)
Tripod: Upright
Table: Mechanical table with coaxial x/y drive and specimen holder
Table dimensions (mm): 140x135
Travel range (mm): 75x40
Condenser: Focusable/centrable NA 0.90 / 1.25 Abbe condenser, with sliding slit
Aperture Diaphragm: Iris Diaphragm
Focus Mechanism: Coaxial coarse/fine focus; Speed adjustable
Increment fine focus (µm): 2µm
Table stroke (mm): 25mm
Table Top Stop: Default ; adjustable
Filter holder: On the light exit of the tripod base
Transmitted light: 1W LED, fixed Koehler, adjustable brightness
Lighting Features: LED brightness indicator on turret
Power supply: Integrated
Mains voltage: universal power supply 110-240V (CE); USB 2.0 port for battery power
Other features: USB 2.0 port for external camera power supply
Scope of delivery: immersion oil 5ml, power cord, dust cover, Allen key
Dimensions LxWxH: 282x210x396mm
Weight: 7.5kg
