The HPM CxL series LED
The new microscope series CxL replace the HPM 500 series and comes are made of a manufacturing facility in the quality laboratory microscopes. The quality of the optics and the clean processing of the microscopes are reflected here.
In the single units have the following characteristics:
A stable, ergonomic, all metal stand with ball 4 times Objektrevolve r DIN optics with a 360 ° rotatable head with 45 ° inclined.
For focusing, the devices with coaxial knobs for coarse and fine focus, which are equipped with slip coupling.
Optical microscopes bribe the four Semi Plan Achromatic objectives (4x, 10x, 40x, 100x (oil)), of which the 40-fold and 100-fold lens are protected even preparation, and 10x / 18mm widefield eyepieces. This is a magnification range of 40x - 1000x possible.
The stage is 135 mm long, 124 mm wide and equipped with an integrated coaxial mechanical stage.
A centerable, height-adjustable Abbe condenser (NA 1.25) with aspherical lens, iris diaphragm and filter holder, and powerful LED lighting 100000 Hour Long-Life completes the performance of the devices admirably. Through built-in rechargeable batteries wireless usage is possible.

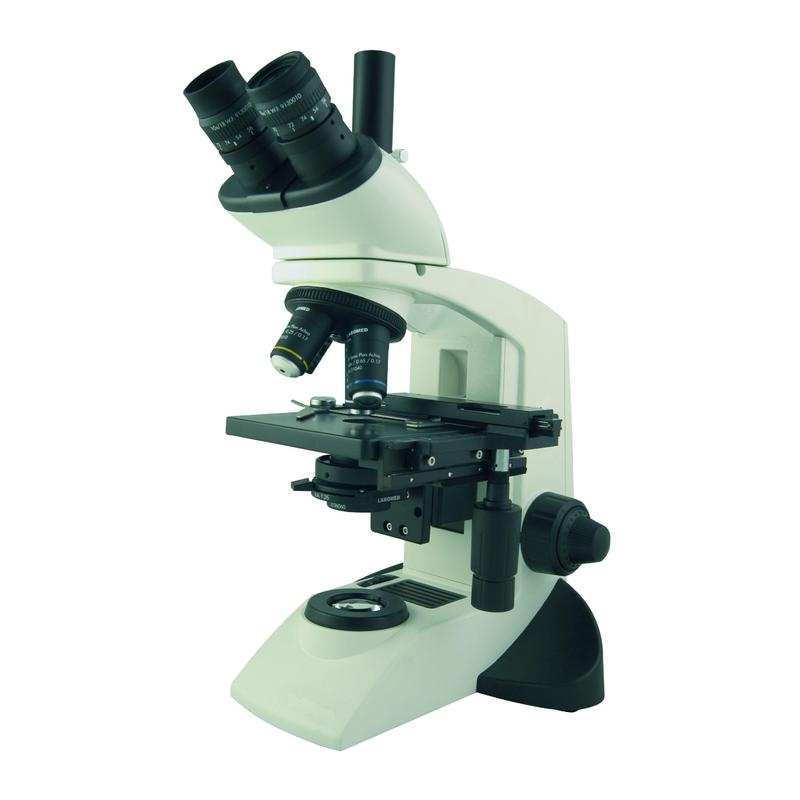

The HPM A 223 features a trinocular insight.
