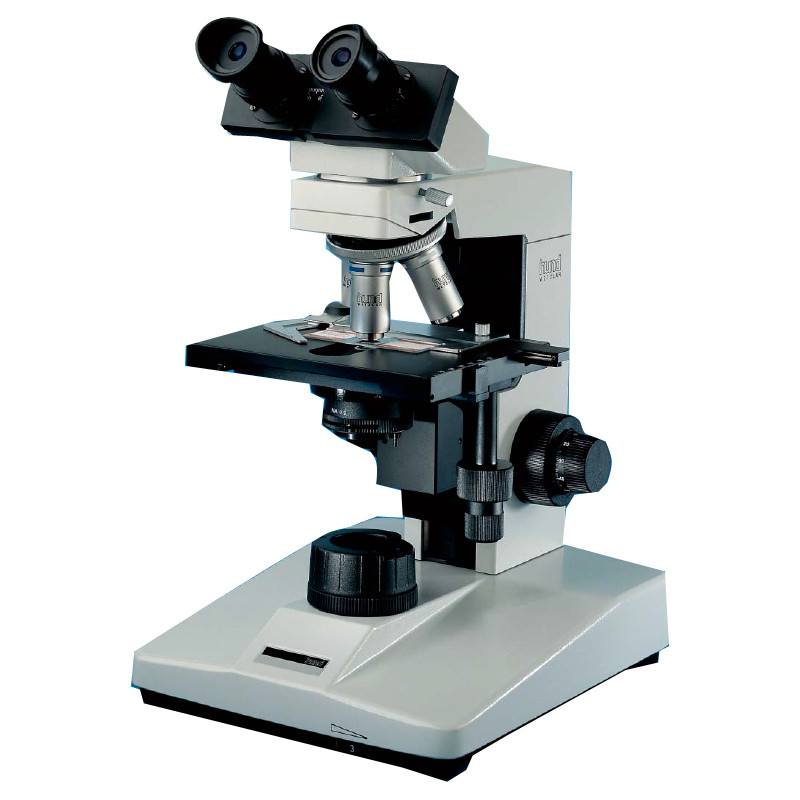

H 600 Wilo-Brau

The microscope H 600 is extremely versatile due to its modular design. All common microscopic examination methods such as brightfield, phase contrast, darkfield and polarization can be performed in a simple exchange of components. Furthermore, are modules for incident and fluorescence microscopy and two different Trinocular Video / tubes available.

Specification:

• Binocular microscope with extremely stable Gußstativ
• Equipped with coarse and fine drive
• Built Halogenlampe12 V / 30 W with brightness control
• Mechanical stage 160 x 130 mm.
• Condenser with height adjustment for exact Köhlering
• with aperture diaphragm and filter holder for excellent illumination of the image field at all magnification levels
• Lighting piece with adjustable field diaphragm
• 4- or 5-position nosepiece.

Delivery:

• 2 eyecups
• Filter slide II
• Conversion filter and filter VG 9
• 2 centering keys
• Ersatzlampe
• 2 spare fuses
• power cable
• operation manual
• Dust cover

The H 600 PH plan is particularly suitable for brightfield and phase contrast with planachromatic phase contrast objectives and an enlarged field of view (FN20)

Equipment as H 600 Wilozyt, but with 3 phase contrast objectives for investigations of undyed material in phase contrast.

Specification:

• Tripod: inclined with 5x nosepiece forward
• Contrasting methods: bright field and phase contrast
• Tube: binocular, 30 °
• Eyepieces: 10x / 20
• Objective: Plan PH2 20 / 0.25, plan PH3 40 / 0.65, PH4 100 / 1.25 (oil)
• Magnification: 200 - 1000 times
• Stage: stage 160x130mm
• Condenser: Combination condenser NA 1.25
• Lighting: 12V / 30W halogen, continuous regulation

Delivery:

• 2 eyecups
• Filter slide II
• Konversionsfilter
• Filter VG 9
• 2 centering keys
• Ersatzlampe
• 2 spare locking an
• power cable
• operation manual
• Dust cover
