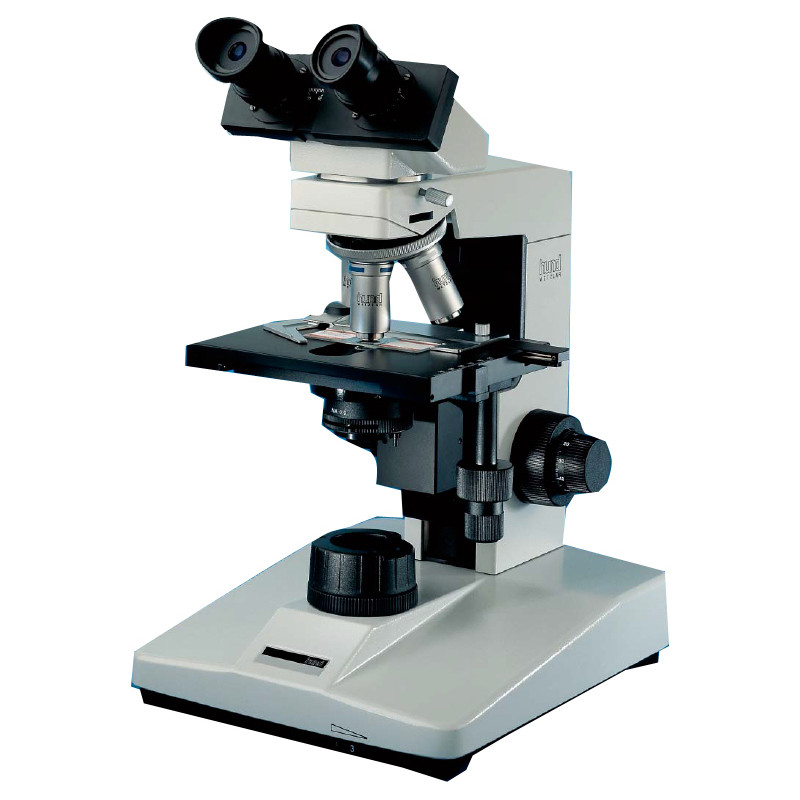

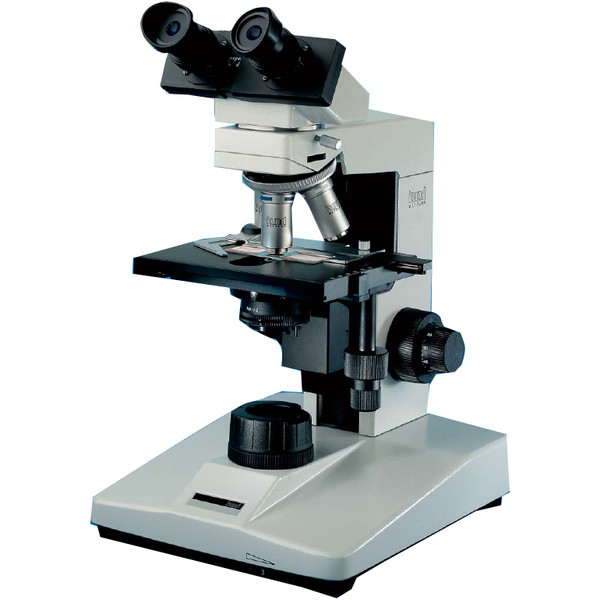

H 600 Wilo-Brau

The microscope H 600 is extremely versatile due to its modular design. All common microscopic examination methods such as brightfield, phase contrast, darkfield and polarization can be performed in a simple exchange of components. Furthermore, are modules for incident and fluorescence microscopy and two different Trinocular Video / tubes available.

Specification:

• Binocular microscope with extremely stable Gußstativ
• Equipped with coarse and fine drive
• Built Halogenlampe12 V / 30 W with brightness control
• Mechanical stage 160 x 130 mm.
• Condenser with height adjustment for exact Köhlering
• with aperture diaphragm and filter holder for excellent illumination of the image field at all magnification levels
• Lighting piece with adjustable field diaphragm
• 4- or 5-position nosepiece.

Delivery:

• 2 eyecups
• Filter slide II
• Conversion filter and filter VG 9
• 2 centering keys
• Ersatzlampe
• 2 spare fuses
• power cable
• operation manual
• Dust cover

The Model H 600 Wilo-PRAX PL

is specially formulated for use in general practice and laboratory.

It is particularly suitable for studying stained cytological and histological preparations. It is also recommended if emphasis is placed on demanding photographic evidence recordings.

Specification:

• Tripod: inclined at 5-position nosepiece, forward
• Eyepieces WF 10x / 20 with an enlarged field of view
• Plan achromatic objectives: Plan 4 / 0.10; Plan 10 / 0.25; Schedule 40 / 0.65; Plan, spring; 100 / 1.25 (oil), spring
• Condenser NA 0.9
• Contrasting methods: bright field
• Tube: binocular, 30 °
• Eyepieces: 10x / 20
• Magnification: 40-1000 times
• Stage: stage 160x130mm
• Condenser: NA 0.9
• Lighting: 12V / 30W halogen, continuous regulation

Delivery:

• 2 eyecups
• Filter slide II
• Konversionsfilter
• Filter VG 9
• Ersatzlampe
• 2 spare fuses
• Immersionsoel
• operation manual
• Dust cover
• power cable
