Microscopio H 600 AFL Plan 100, HBO 100W, fluo, bino, 100x - 1000x

H 600 Wilo-Brau

The microscope H 600 is extremely versatile due to its modular design. All common microscopic examination methods such as brightfield, phase contrast, darkfield and polarization can be performed in a simple exchange of components. Furthermore, are modules for incident and fluorescence microscopy and two different Trinocular Video / tubes available.

Specification:

• Binocular microscope with extremely stable Gußstativ
• Equipped with coarse and fine drive
• Built Halogenlampe12 V / 30 W with brightness control
• Mechanical stage 160 x 130 mm.
• Condenser with height adjustment for exact Köhlering
• with aperture diaphragm and filter holder for excellent illumination of the image field at all magnification levels
• Lighting piece with adjustable field diaphragm
• 4- or 5-position nosepiece.

Delivery:

• 2 eyecups
• Filter slide II
• Conversion filter and filter VG 9
• 2 centering keys
• Ersatzlampe
• 2 spare fuses
• power cable
• operation manual
• Dust cover

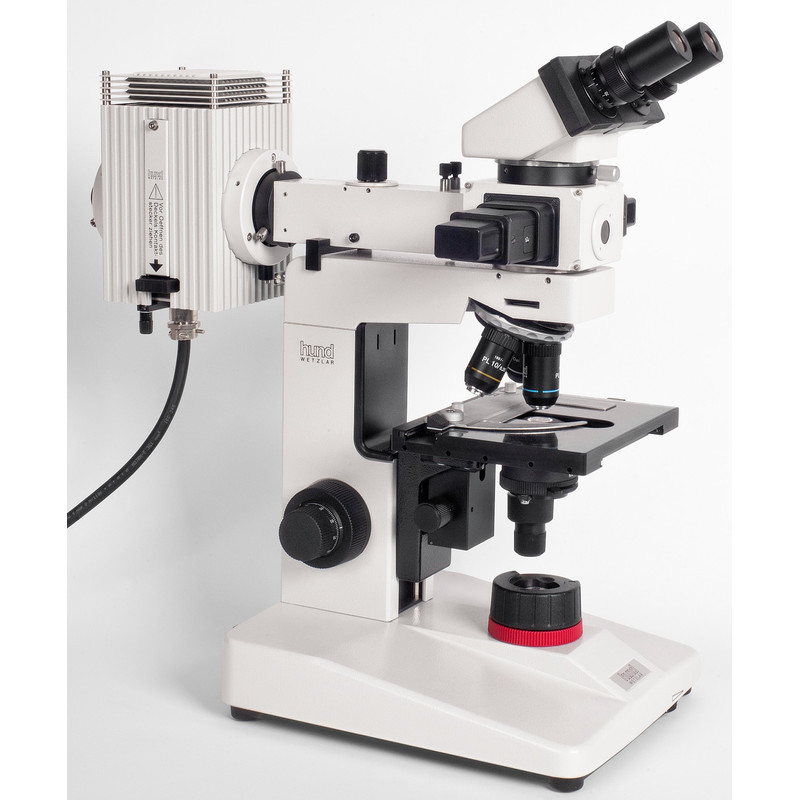

H 600 AFL PLAN 100

For epi-fluorescence and transmitted light bright field with planachromatic objectives

Specification:

• Tripod: inclined at 5-position nosepiece, forward
• Contrasting methods: transmitted light bright field epi-fluorescence
• Tube: binocular, 30 °
• Eyepieces: 10x / 18
• Objective: Plan 10 / 0.25; Schedule 40 / 0.65, Plan 100 / 1.25 (oil)
• Magnification: 100 - 1000 times
• Stage: stage 160x130mm
• Fluorescence Module: Auflichtfluoreszenzilluminator with filter slide for 2 sets of filters with filter set D (FITC)
• Condenser: NA 1.25
• Lighting: 12V / 30W halogen, continuous regulation (transmitted light), HBO 100 (epifluorescence) high-pressure mercury lamp 100W

Delivery:

• 2 eyecups
• Replacement lamp 12 V / 30 W
• 2 spare fuses
• Immersionsoel
• safety goggles
• Protective gloves
• operation manual
• Dust cover
• power cable
