Home > Microscopi > Microscopi > Microscopi digitali > Optika > IS > Optika Microscopio IS-01, color, CMOS, 1/2.8 inch, 2.9µmx2.9µm, 30fps, 2MP, HDMI, 7x to 50x

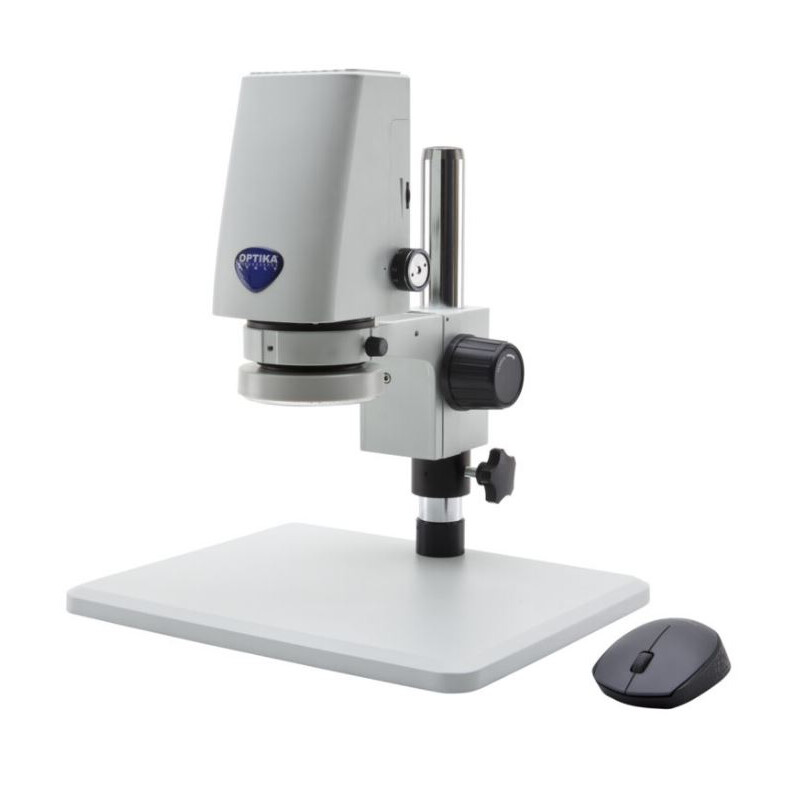

Optika Microscopio IS-01, color, CMOS, 1/2.8 inch, 2.9µmx2.9µm, 30fps, 2MP, HDMI, 7x to 50x

Prodotto n.: 75695
Produttore: Optika

Prezzo di vendita consigliato: $ 1.950,00

Il nostro prezzo:
$ 1.760,00

IVA incl.
Risparmi: $ 190,00
Descrizione prodotto
Specifiche
Recensioni clienti
Accessori raccomandati
Downloads

Descrizione prodotto:

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

OPTIKA IS-01 is a compact, all-in-one video microscope with integrated HDMI camera and built-in software. Ideal for achieving up to 50X magnifications and performing measurements.It’s recommended when repeatability is required thanks to the click-stop mechanism at different magnifications steps.

With 60 frames per second at full resolution and 1080 HD image quality, you can see, on a plugged HDMI monitor, the same as what you see through the microscope eyepieces.

IS-01/IS-01SMD Main Body

Observation Method Brightfield: Yes

Head Construction material: Plastic mold / Aluminum gears

Objective

Optical system: 160 mm

Anti-fungus treatment: Yes

Objective Type: Achromatic

Zoom: type Parfocal achromatic

Working distance (mm): 110

Standard magnifications: 0.7x-5x

Zoom ratio: 7.14

Zoom click stops_ At 0.7x, 1x, 1.5x, 2x, 2.5x, 3x, 4x, 5x

Focusing System

Type: Coarse

Coarse total travel (mm): 50

Adjustable tension: Yes

Head holder internal diameter (mm): 76 Head

Type: Pillar

Pillar diameter (mm): 32

Resolution (MP): 2

Sensor type: CMOS

Sensor size: 1/2.8”

Sensor aspect ratio: 16/9

Full image size: 1920×1080

Pixel size (μm): 2.9×2.9

Frame rate: 60 fps (1920×1080)

S/N ratio (dB): >50

Dynamic range (dB): >50

Sensitivity (V/lux*s @550nm): 0.4

Exposure time (s): 0.02 – 1/10000

USB type: 2.0

Software: built-in

Incident Illumination

Type: LED

Light source power (W): 1

Illuminance (lux): 60000

Brightness control: Manual

Lifetime (hours): > 65000

Temperature (K): 6300

Max. required power (W): 3

Power Supply for Illumination

Type: External

Microscope connector: Jack, 2.1 mm

Power plug type: Multi-plug (EU, UK, US)

Input voltage: 110/240 Vac, 50/60 Hz

Output voltage: 12 Vdc

Additional Information

Maximum sample height (mm): 150

Product Dimensions

Total height (mm): 510

Total width (mm): 320

Total depth (mm): 260

Weight: 4.3 kg
