Home > Microscopi > Microscopi > Microscopi digitali > Optika > IS > Optika Microscopio IS-01SMD, color, CMOS, 1/2.8 inch, 2.9µmx2.9µm, 30fps, 2MP, HDMI, 7x to 50x, 3D

Optika Microscopio IS-01SMD, color, CMOS, 1/2.8 inch, 2.9µmx2.9µm, 30fps, 2MP, HDMI, 7x to 50x, 3D

Prodotto n.: 75694
Produttore: Optika

Prezzo di vendita consigliato: $ 2.600,00

Il nostro prezzo:
$ 2.340,00

IVA incl.
Risparmi: $ 260,00
Descrizione prodotto
Specifiche
Recensioni clienti
Accessori raccomandati
Downloads

Descrizione prodotto:

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

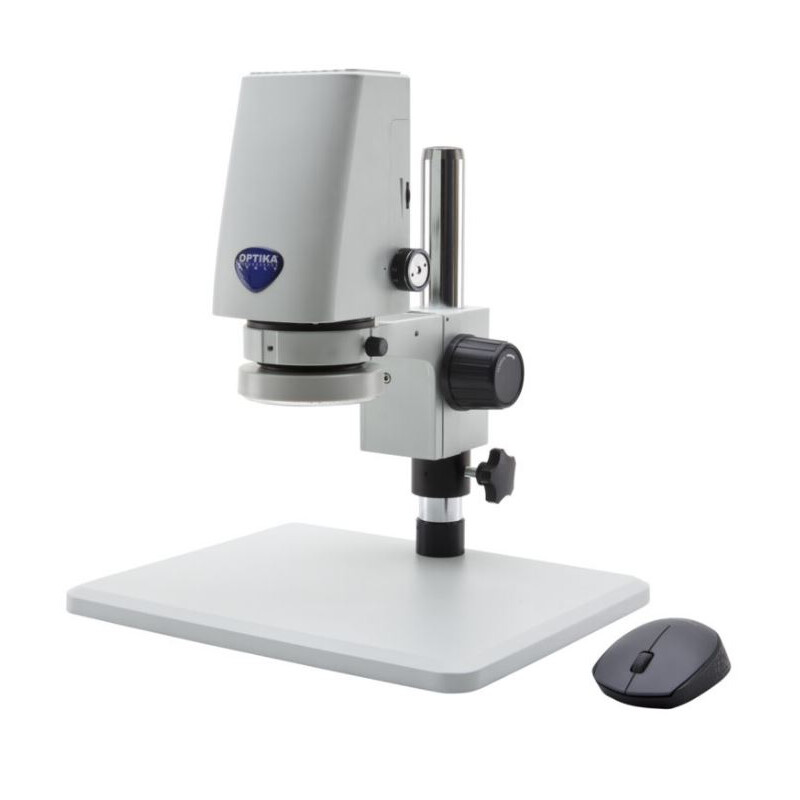

OPTIKA IS-01 is a compact, all-in-one video microscope with integrated HDMI camera and built-in software. Ideal for achieving up to 50X magnifications and performing measurements.It’s recommended when repeatability is required thanks to the click-stop mechanism at different magnifications steps.

With 60 frames per second at full resolution and 1080 HD image quality, you can see, on a plugged HDMI monitor, the same as what you see through the microscope eyepieces.

IS-01/IS-01SMD Main Body

Observation Method Brightfield: Yes

Head Construction material: Plastic mold / Aluminum gears

Objective

Optical system: 160 mm

Anti-fungus treatment: Yes

Objective Type: Achromatic

Zoom: type Parfocal achromatic

Working distance (mm): 110

Standard magnifications: 0.7x-5x

Zoom ratio: 7.14

Zoom click stops_ At 0.7x, 1x, 1.5x, 2x, 2.5x, 3x, 4x, 5x

Focusing System

Type: Coarse

Coarse total travel (mm): 50

Adjustable tension: Yes

Head holder internal diameter (mm): 76 Head

Type: Pillar

Pillar diameter (mm): 32

Resolution (MP): 2

Sensor type: CMOS

Sensor size: 1/2.8”

Sensor aspect ratio: 16/9

Full image size: 1920×1080

Pixel size (μm): 2.9×2.9

Frame rate: 60 fps (1920×1080)

S/N ratio (dB): >50

Dynamic range (dB): >50

Sensitivity (V/lux*s @550nm): 0.4

Exposure time (s): 0.02 – 1/10000

USB type: 2.0

Software: built-in

Incident Illumination

Type: LED

Light source power (W): 1

Illuminance (lux): 60000

Brightness control: Manual

Lifetime (hours): > 65000

Temperature (K): 6300

Max. required power (W): 3

Power Supply for Illumination

Type: External

Microscope connector: Jack, 2.1 mm

Power plug type: Multi-plug (EU, UK, US)

Input voltage: 110/240 Vac, 50/60 Hz

Output voltage: 12 Vdc

Additional Information

Maximum sample height (mm): 150

Product Dimensions

Total height (mm): 510

Total width (mm): 320

Total depth (mm): 260

Weight: 4.3 kg

IS-01SMD

OPTIKA IS-01SMD is a compact, all-in-one video microscope with integrated HDMI camera and built-in software. Ideal for achieving high magnifications and performing measurements. It’s recommended when repeatability is required thanks to the click-stop mechanismat different magnifications steps. With 60 frames per second at full resolution and 1080 HD image quality, you can see, on a plugged HDMI monitor, the same as what you see through the microscope eyepieces. The 3D rotational angle view attachment and the 7x to 50x zoom of IS-01SMD provide an unparalleled real-time 3D view ideal for PCB and Medical Devices inspection that is simple to use and remarkable in image quality. Long working distance allows soldering rework and assembly by watching LCD screen. The Built-in camera is fitten with USB2.0 slots for storing image and video without any computer using a USB flash disk. Thanks to the measurement software, it is possible to perform dimensional measurements on screen.
