M-1049-M-1055
Model: IOS Planachromatic
Description: Objectives for brightfield, darkfield and VIS epifluorescence observation
Magnification / Numerical Aperture

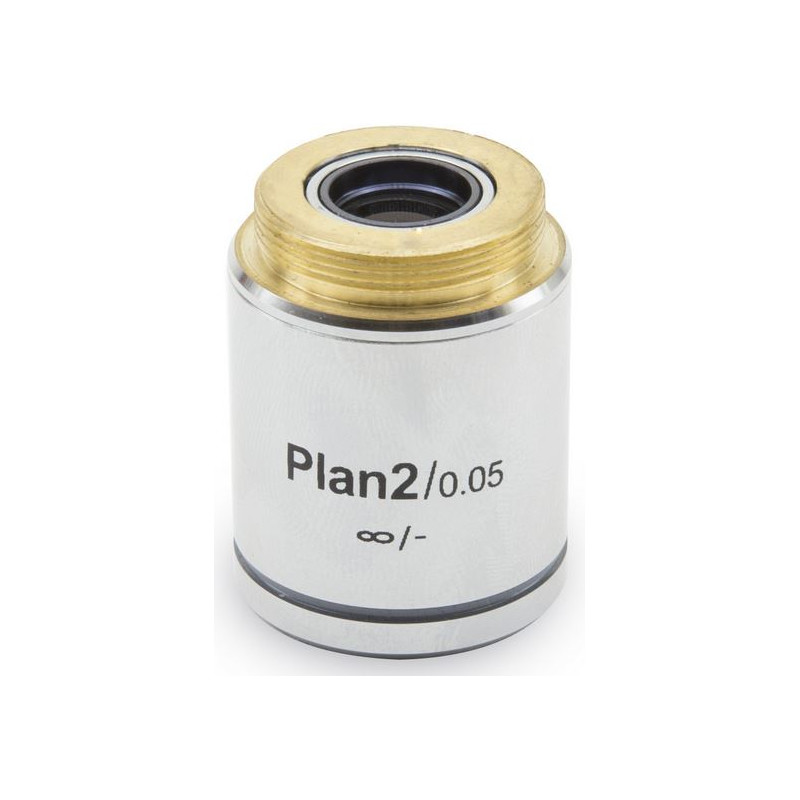

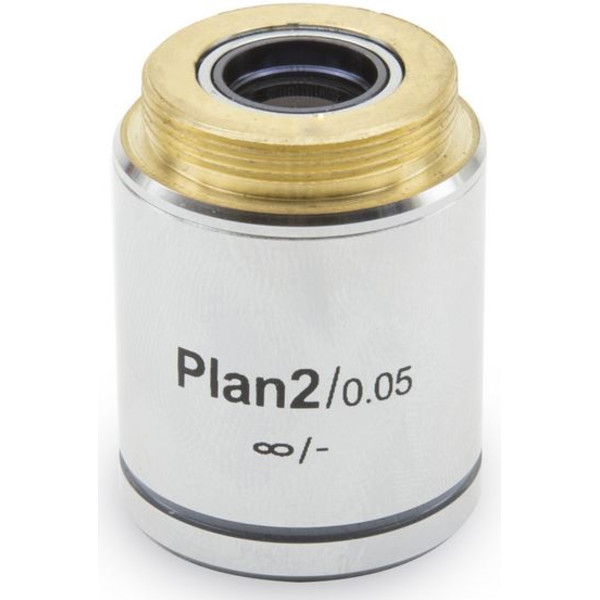

• 2X / 0.05 (M-1049)

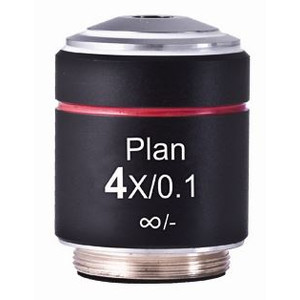

• 4X / 0.10 (M-1050)
• 10X / 0.25 (M-1051)
• 20X / 0.45 (M-1052)
• 40X / 0.65 (M-1053)
• 60X / 0.85 (M-1054)
• 100X / 1.25 (oil immersion) (M-1055)
Optical Correction Planachromatic.
Flat field correction for 22mm F.N., planachromatic spherical and chromatic corrections.
Mechanical tube length IOS (infinity-corrected tube length)
Cover Glass Thickness 0.17 mm
Working Distance
• 2X W.D. 19.4 mm
• 4X W.D. 11.9 mm
• 10X W.D. 12.1 mm
• 20X W.D. 1.5 mm
• 40X W.D. 0.36 mm (spring-loaded)
• 60X W.D. 0.3 mm (spring-loaded)
• 100X W.D. 0.18 mm (spring-loaded)
Screw Thread RMS standard
Parfocal Distance 45 mm
IOS W-PLAN (Plan Achromatic) objectives represent the best cost-effective choice for high contrast and resolution, matching all the requirements of labs requiring routinary optics. They are designed to ensure field flatness up to F.N. 22, based on infinity-corrected optical system.
IOS W-PLAN objectives are designed for B-510 Series and upright modular systems.
