M-1146

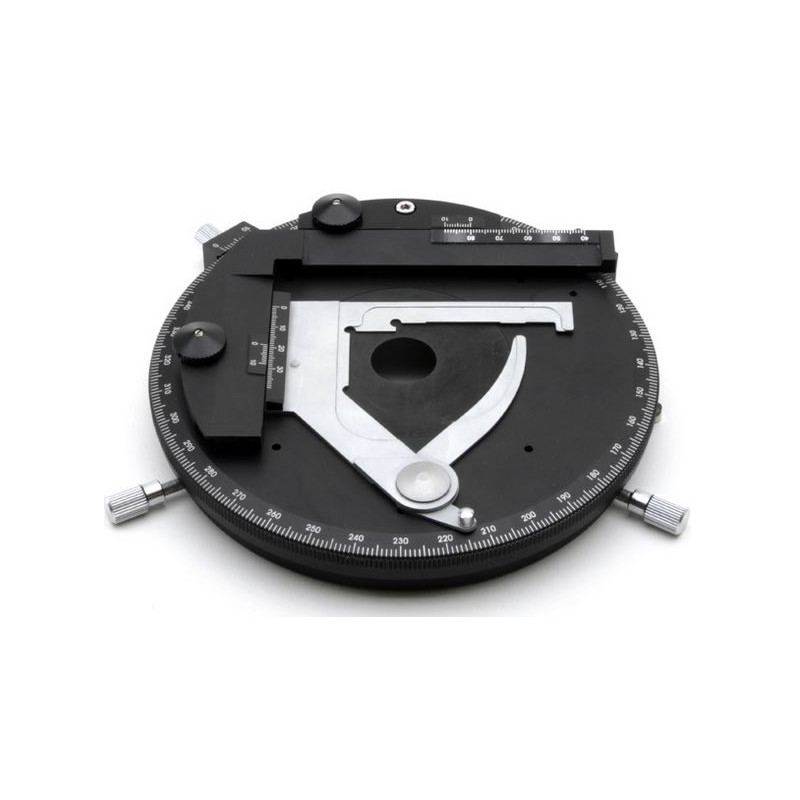

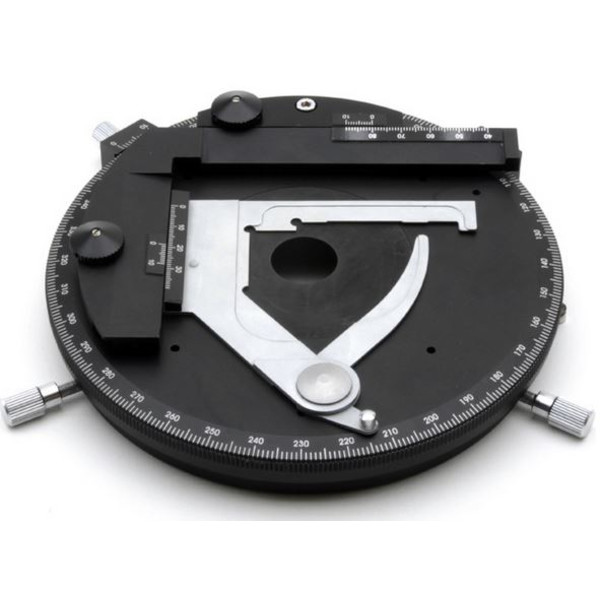

Model: Rotating mechanical stage + Attachable translation stage
Description: Rotating stage for polarizing microscopes, with X-Y translation mechanism
- Dimensions: Diameter 165 mm
- Translation: Attachable Mechanical Stage M-1146:
X: 41 mm
Y: 32 mm
- Low-profile translation knobs (stage can be rotated without interference with the objectives)
- Slide holder: For 1 standard slide
- Graduated axis: On both X and Y; 0.1 mm vernier scale. 360° graduation with 0,1° vernier scale.
- Notes: Click-stop every 45° during rotation. Fixing screw to lock the position.
