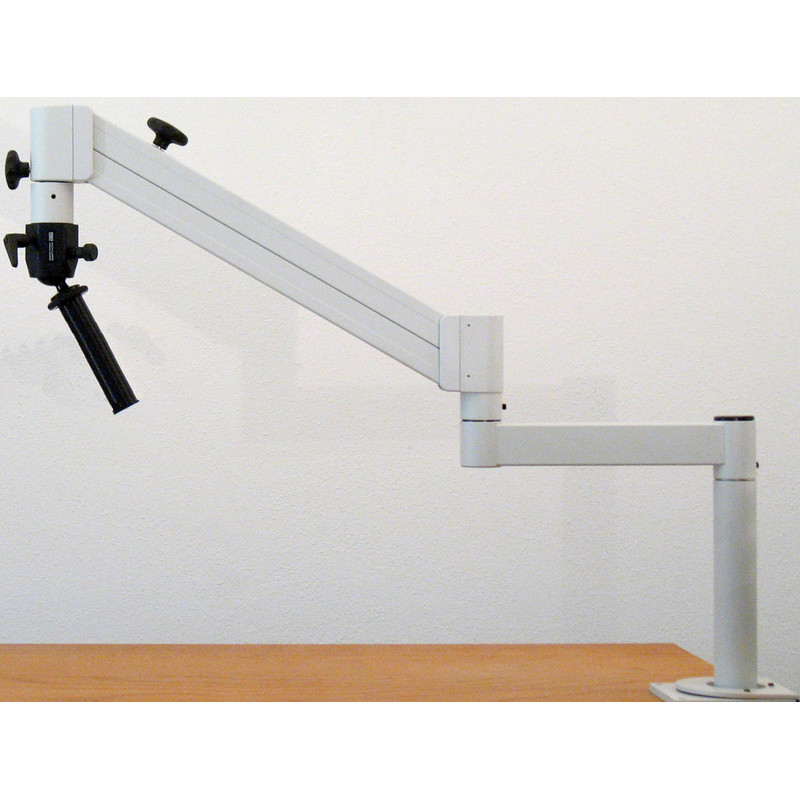

F lexi microscope stands that combine the highest standards of stability and flexibility with ergonomic work:
The advantages at a glance
- adjustable to the weight of the microscope
- easy disassembly, easy transport
- The stand is mounted directly on the table (screwed), a table clamp is optionally available.
- secure height lock in any position
- optional screen support available
Technical specifications :
- Swivel range: - 360 °
- Adjustment of the microscope - at an angle of 0-180.
- Hinging arm lift - +/- 200 mm
- Load on the arm:
- Standard load arm - 2.5 - 6 kg
- High-load arm - 6,0 - 10 kg
- Display horizontal - 720 to 1030 mm
- Tripod total weight: Including spring-loaded arm - approx. 10 kg depending on the model
- An optional mounting on the floor stand is possible with little effort.
- Ball head - 360 ° rotatable
FlexiStativ consisting of:
- Screw-on plate with column 250mm (without table clamp)
- Rear pipe 300mm
- spring balanced arm
