Microscopi > Microscopi > Lenti d`ingrandimento stereo (Duale) > Stereo zoom sets > Euromex > Nexius EVO > Euromex NexiusZoom Evo NZ.1703-PG, trino, 6.5x-55x
Prodotto n.: 56441

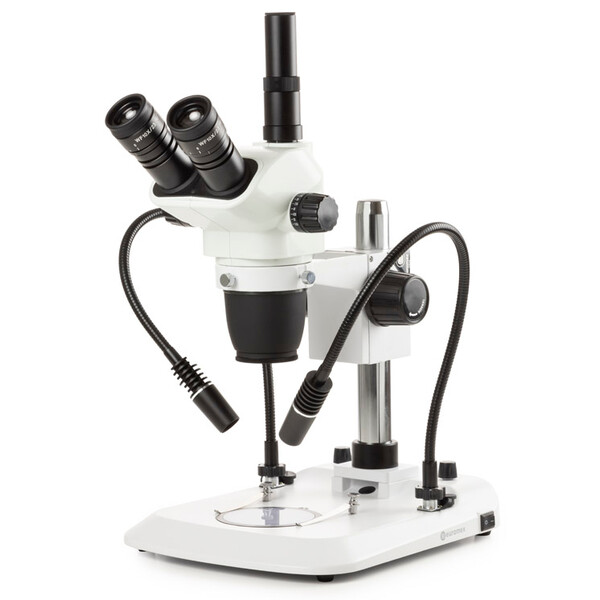

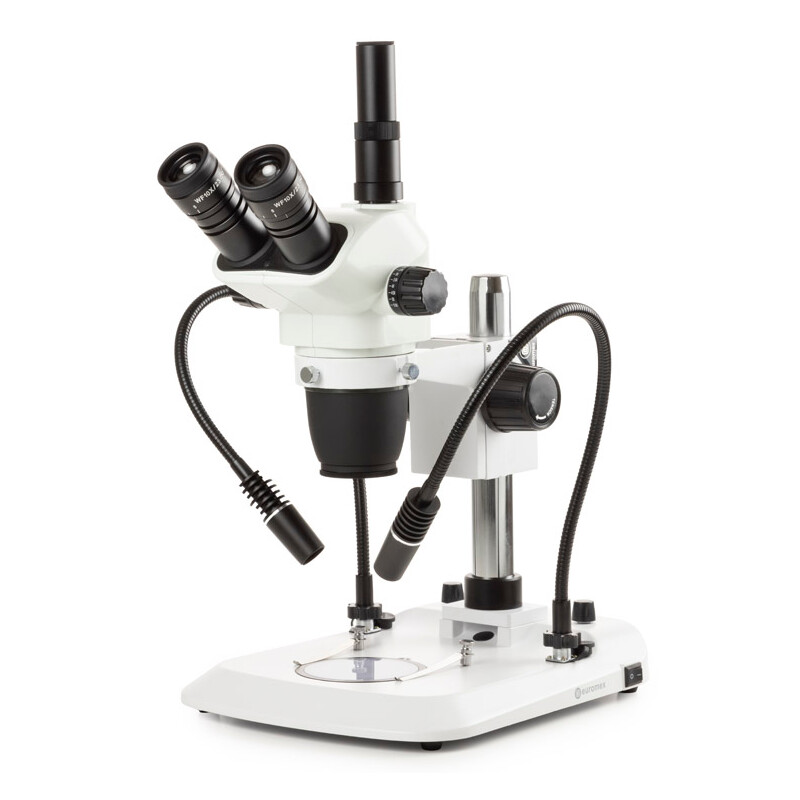

NexiusZoom Evo NZ.1703-PG, trino, 6.5x-55x

$ 1.440,00 IVA incl., più spese di spedizione
troppo caro?
Giallo
disponibile in 1-2 settimane + Tempo di trasporto

Descrizione prodotto

Nexius Zoom Evo

The Euromex NexiusZoom and NexiusZoom Evo stereomicroscopes allow you to examine your samples with high-performance precision. It generates three-dimensional images for microscopy of the highest standard. These high-end zoom microscopes are perfect for analyzing all types of surfaces or for observing biological samples. The NexiusZoom stereo microscopes are available with a wide range of stands and are supplied with or without LED lighting. Ideal for all types of educational and laboratory applications. Magnifications from 3.3 x up to 220 x can be achieved with additional supplementary lenses and objectives

Nexius Zoom EVO series

Technical specifications

  • Eyepieces : pair of WF 10x/23 mm, both eyepieces with ± 5 diopter adjustment
  • Head: binocular or trinocular head with 45° angled view, interpupillary distance adjustable from 54mm to 75mm
  • Lenses: Zoom from f/8.4 lenses with 0.65x to 5.5x magnification. Field of view from 35.4 mm to 4.2 mm. Large working distance of 110 mm
  • Conversion lens: 0.5x / 0.75x / 1.5x and 2.0x optional
  • Tripod: Ergonomically designed column or rack and pinion tripod with LED lighting and two object clamps or ergonomically designed overhanging tripod with one or two arms with coarse adjustment, without lighting.
  • Material: metal alloy, painted white
  • optical parts are treated anti-fungal

Z.1702-PG, 6.5-55x, column, 2 goosenecks, transmitted light, bino

  • Lens: 0.65x - 5.5x
  • Eyepieces: WF 10x/23 eyepieces in 45° inclined tube with +/- 5 diopter adjustment
  • Magnification : from 6.5 to 55x
  • Field of view: from 32.8 mm to 24.9 mm
  • Free working distance : is 110 mm
  • Maximum object height: 148 mm
  • Packed in a styrofoam box
  • Tripod: Pillar Tripod
  • Lighting:

- Transmitted light 3W LED

- Front light: 2 goosenecks

  • Tube: trinocular

EYELETS

The NexiusZoom Evo comes with a pair of HWF 10x/23mm eyepieces

LENSES

The NexiusZoom Evo is equipped with a plan achromatic 1:8.4 lens with 0.65x to 5.5x magnification. Field of view from 35.4 mm to 4.2 mm. Large working distance of 110 mm

Attachment lens 0.3x / 0.4x / 0.5x / 0.75x / 1.5x and
2.0x are available. All lenses are anti-fungal treated

Specifiche

Ottica


Oculare
10 (WF 10/23)
Ingrandimento
0.65-5.5 (Obiettivo zoom)
Tipo di pila
LED (Collo di signo)
Iluminazione
Luce diretta e trasmessa
Sistema ottica
Greenough

Meccanica


Tecnica di fabbricazione
Trinoculare
Distanza di lavoro (mm)
110
Visione (°)
Visione angolata 45°

Particolarità


Borsa anti-polvere
si

Generale


Larghezza (mm)
219
Lunghezza (mm)
266
Serie
Nexius EVO

Adatto per la serie


Nexius
-

Campi di aplicatione


Industria e Materiali
si
Didattica
si

Campi di utilizzo


Ingegneria dei materiali
si
Mineralogia
si
Metallurgia
si
Ingegneria meccanica
si
Industria meteriali edili
si
Università
si
Scuola
si
Elettronica
si
Biologia, zoologia e botanica
si
Archeologia
si
Odontoiatria
si
Medicina veterinaria
si
