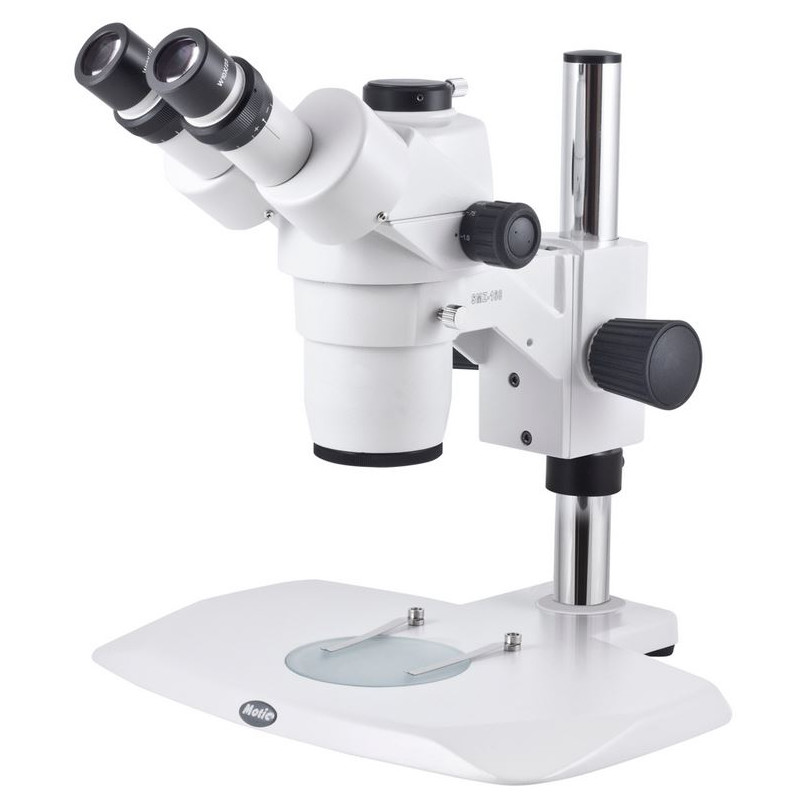

Motic Microscopio stereo zoom SMZ-168-TP, trino, 7,5x - 50x

Prodotto n.: 53470
Produttore: Motic

€ 1.078,00

IVA incl.
Motic Microscopio stereo zoom SMZ-168-TP, trino, 7,5x - 50x
Motic Microscopio stereo zoom SMZ-168-TP, trino, 7,5x - 50x
Descrizione prodotto
Specifiche
Recensioni clienti
Accessori raccomandati
Downloads

Descrizione prodotto:

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

SZM168 series

Versatile Stereo Microscope Solution

The SMZ168 Stereo Zoom microscope represents the top-of-the-line model in Motic’s successful SMZ Series of stereo microscopes. Designed for a wide range of biological and material science applications, the SMZ168’s optical quality and versatile accessories will satisfy the most demanding user applications in both routine and research fields. From industrial quality control to biological preparation work, the SMZ168 is a durable workhorse model ready for a variety of applications.

Its Greenough optical system comes with a large zoom range of 6.7:1, parfocal at all magnifications. Its 5-position click-stop magnification mechanism, implemented into the continuous zoom, enables precise reproduction of magnifications, thus simplifying measurements.

An impressive 3-dimensional upright image, combined with an industry leading working distance of 113mm in its standard configuration, allows easy manipulation of the sample. Further, the SMZ168 can convert easily into a complete documentation station by combining it with a member of the Moticam camera series.

The SMZ-168 stereomicroscope provides a reliable, high-quality stereomicroscope for a wide range of potential applications. The Greenough zoom optical system with a zoom ratio of 6.7:1,one of the industries largest, provides a total magnification of up to 50x, suitable for most applications--addition of auxiliary lenses and/or eyepieces enables a magnification of up to 320x with a maximum possible working distance of up to 324 mm. Additional accessories such as polarization and dark field attachments further enhance the versatility of the SMZ-168 stereomicroscope.

Adding a Moticam microscopy camera enables the SMZ-168 stereomicroscope to become a complete documentation workstation. Options such as various stands, head holders, and articulating boom stands ensure that the SMZ-168 will fit perfectly into your workflow. Taken together, the SMZ-168 is a high quality, reliable, and highly versatile stereomicroscope for a wide range of environments and potential applications.

Model: SMZ-168-TP

Optical System: Greenough

Observation Tube: Trinocular head

Interpupillary distance: 54-76mm

Diopter adjustment: On both tubes , +/- 5 diopter

Trinocular light split: 100:0 / 0:100 on left eyepiece

Inclination: 35º inclined, 360º rotating

Eyepieces: WF10X/23mm

Objectives system: Zoom, ratio1:6,7

Objectives magnification: 0,75X~5X

Working distance: 113mm

Stand: Pole type stand

Base: 329x277mm

Column/Arm: Ø32mm, 295mm high

Optical body with head holder: For Ø32mm column and Ø76mm head

Focus mechanism: Coarse focusing system with tension adjustment

Focusing stoke: 49mm

Accessories included: Black and white stage plates and dust cover

Length x Width x Height: 329x277x365mm

Weight: 5,2KG
