Microscopi > Microscopi > Microscopi diritti > Microscopi a campo chiaro > Motic > BA-310 MET > Motic Microscopio BA310 MET-T, binoculare (6"x4")
Prodotto n.: 45011

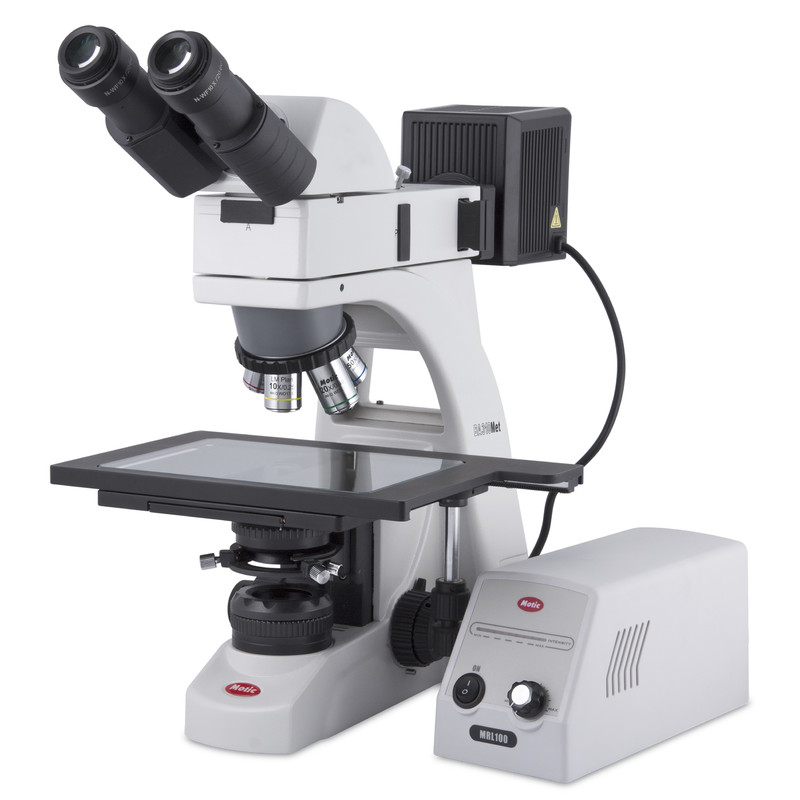

Microscopio BA310 MET-T, binoculare (6"x4")

$ 5.400,00 IVA incl. più spese di spedizione
troppo caro?
a breve termine
spedibile in 1-2 settimane + Tempo di trasporto

Nessuna consegna entro Natale
Mostra alternative
Restituzione possibile fino al 31.1.2025!


Descrizione prodotto

Per saperne di più sulla serie BA-310 MET...

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

BA310MET series, an affordable and powerful metallurgical microscope line of robust Incident light microscopes. Industrial quality control can be performed for all opaque materials like minerals and metal samples with ease and efficiency. Also, the BA310MET performs well in Educational environments of engineering and material professions, where affordability and ease-of-use are key demands.

Daily industrial work environments need a reliable microscope which focuses on ease-of-use as well as on work efficiency. Motic has paid careful attention to these market requirements in order to optimize the BA310MET’s features. The Epi-Illuminator with a 12V/50W Halogen illumination offers a powerful and adjustable light source ideal for all reflective samples. For increased illumination options, an easy replacement of the Halogen bulb is possible by an LED module of different color temperatures (4500K, 6000K). A built-in field diaphragm and aperture diaphragm help to optimize image quality by reducing stray light and increasing contrast. Also Motic's new Long-Working Distance LM Plan objectives for Incident light provide optimal image contrast through a multi-layer lens coating. Together with a fully corrected tube lens an intermediate image without color fringes is created, accessible through the Trinocular port and making digital images as clean and crisp as those seen through the eyepieces. The BA310MET design also includes a standardized ISO photo exit. Depending on the chosen model, a hard coated and chemical resistant stage with a minimum of 75x50mm travel range is offered. Depending on the application, larger stages with extended travel are available, as well as stage options for Transmitted light usage. For maximum sized samples, the BA310MET-H model is recommended.

Objektives

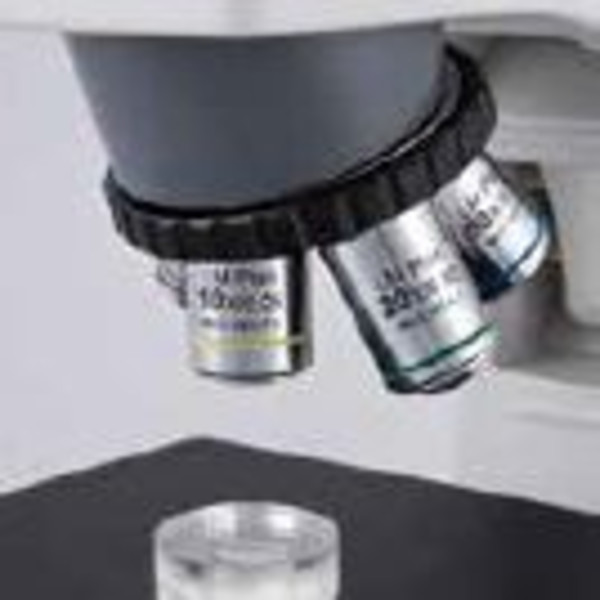

For best optical performance of the BA310MET series, Motic introduces a new generation of Metallurgical LM Plan objectives. These Plan Achromatic objectives are made of high quality glass and follow the successful Motic CCIS® Optical concept. Multi-layer coating ensures improved contrast and image uality. The tube lens provides a completely corrected intermediate image, accessible by the photo port exit of the Trinocular head options. Documentation therefore is based on maximum image quality. The ball bearing 5-fold nosepiece shows a reversed orientation of the lenses and ensures parcentration and repeatability with every magnification change. For advanced resolution requests, two special EC-M Plan objectives are available.

BA310MET / MET-T Standard Specifications

  • Optical System Color Corrected Infinity Optical System [CCIS®]
  • Eyepieces N-WF 10X/20mm, with diopter adjustment
  • Observation Tubes Widefield binocular 30° [F.N. 20] Widefield trinocular 30° [F.N. 20] - light distribution 100:0/20:80

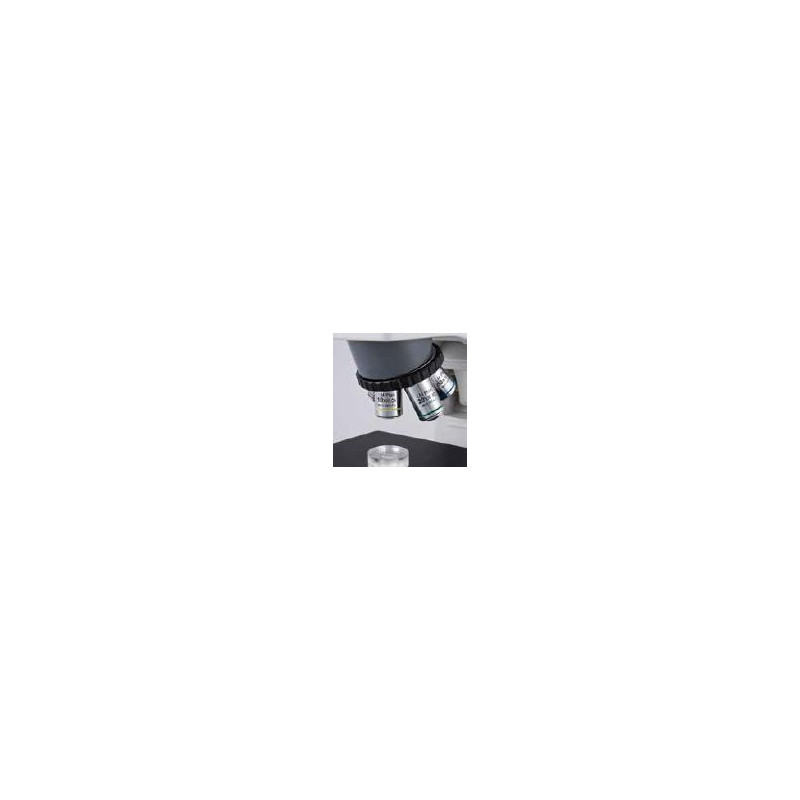

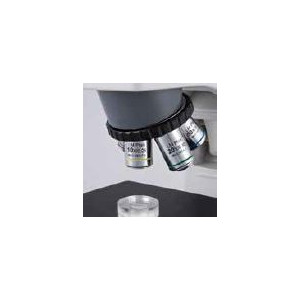

  • Nosepiece Reversed quintuple
  • Objectives CCIS© LM Plan 5X, 10X, 20X, 50X; 100X (optional) High NA objectives CCIS© EC-M Plan 20X and 50X (optional)

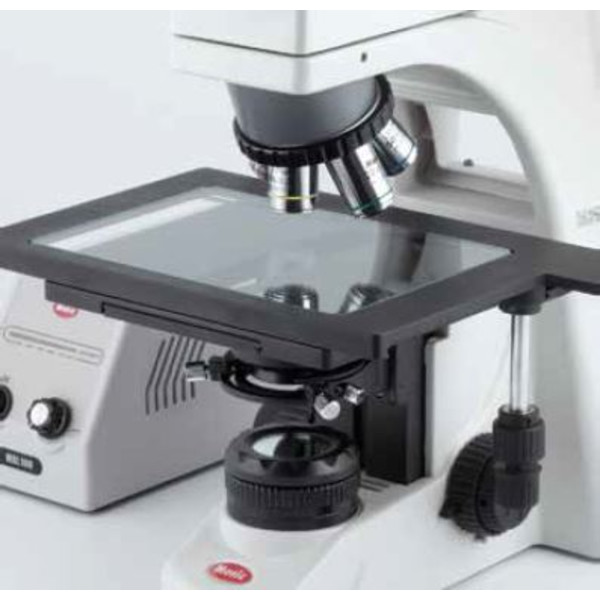

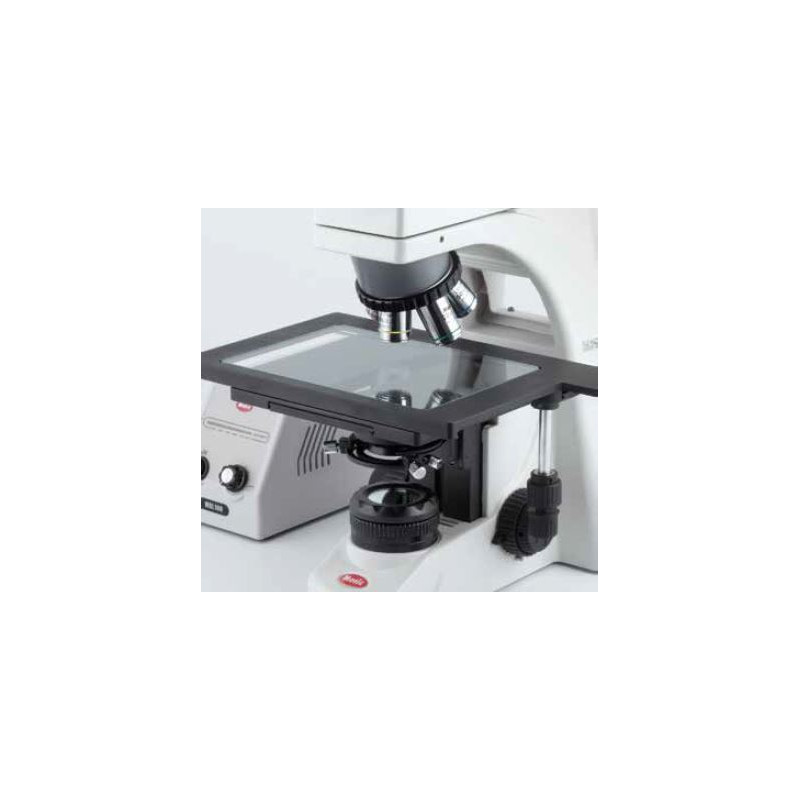

  • Stage BA310MET: 180x140mm surface; 75x50mm movement; coaxial controls; BA310MET-T: 240x140mm surface; 75x50mm movement; coaxial controls (3”x2”); BA310MET-T: 300x180mm surface; 150x100mm movement; coaxial controls (6”x4”)
  • Focus Brass gears; Z-Axis movement 30mm
  • Fine focus 2μm minimum increment
  • Incident light 12V/50W Halogen illuminator with external power supply Halogen bulb exchangeable with 3W LED (4500K,6000K), >20,000 hrs life span
  • Transmitted light BA310MET-T: Built-in 6V/30W Halogen Koehler illumination Halogen bulb exchangeable with 3W LED (4500K,6000K), >20,000 hrs life span
  • Condenser BA310MET-T: N.A. 0.85; focusable and centrable
  • Specimen thickness Max. 30mm

Specifiche

Ottica


Oculare
10
Tipo di obiettivo
Planare acromatico (Correzione all'infinito, CCIS LM plan acromatico, DIN 45 mm; 5x/013 (WD 20,3 mm),10X/0,25 (WD 17,5 mm), 20X/0,4 (WD 8,1 mm), 50X/0,55 (WD 8,4 mm))
Condensatore
Condensatore di Abbe (N.A. 1,25), con slot per vetrini, centratura e diaframma ad iride
Iluminazione
Luce diretta e trasmessa
Ingrandimento
500
Tipo di pila
Illuminazione intercambiabile alogena e LED
Sistema ottica
infinito

Prestazioni


Campo chiaro
si

Meccanica


Tecnica di fabbricazione
Binoculare
Messa a fuoco
Movimenti ampi e micrometrici
Visione (°)
Visione angolata 30°, testa ruotabile a 360°
Tavolino portaoggetti
Tavolo a croce

Particolarità


Tavolino traslatore
-
Borsa anti-polvere
-
Portafiltro
-
Oculare grandangolo
si

Generale


Larghezza (mm)
200
Colore
grigio/nero
Peso (g)
12700
Altezza (mm)
450
Serie
BA-310 MET
Lunghezza (mm)
508

Campi di aplicatione


Industria
si

Campi di utilizzo


Contrasto per interferenza
-
Metallurgia
si
Ingegneria dei materiali
si
